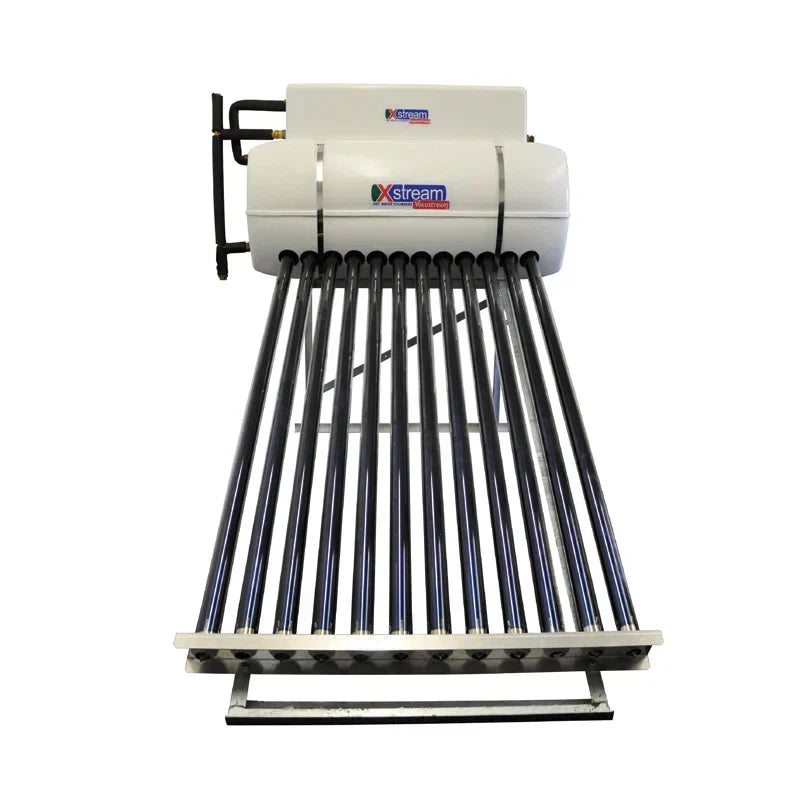

Xstream Vacustream 110L Stratification Solar Water Heating System with 1kW Element

Wishlist Compare

R 10,999.00

Our Vacustream systems are supplied in kit format as a complete solar system and comprises of:

Design features

Balanced pressure is optional on hot and cold water- the float valve positioned inside the Supplystream can feed both the Vacustream (from where the hot water is drawn) and the cold-water supply to the shower.
The Vacustream is available either with or without electrical back-up. The positioning of the element, being in the upper half of the tank ensures minimum electrical usage.
Expanded water from the Vacustream is dumped entirely into the Supplystream for re-use, ensuring no water wastage whatsoever.
A simple, sturdy, easy to erect adjustable galvanised frame with all interconnecting copper pipe work ensures effortless installations.
Our design makes provision for perfectly round holes where the tubes are located into the Vacustream thus preventing leaks.
With raised fittings for expanded water from the inner tank we ensure there is no air trapped inside the Vacustream.

Design aspects

Material selection is crucial as mentioned before. Our non-ferrous tanks are:
Totally corrosion free- they will never rust.
No galvanic reactions will occur in our tanks.
Made from (non-ferrous) materials with uniform expansion rates (expansion caused by hot and cold cycles inside the inner tank) that eliminates the need for protective linings of any sort.
Known for their low overnight heat losses as non-ferrous materials have low heat transfer properties.
Lightweight -rendering them easy to handle and install.

Specifications Geyser

Supply Tank

System Installed
