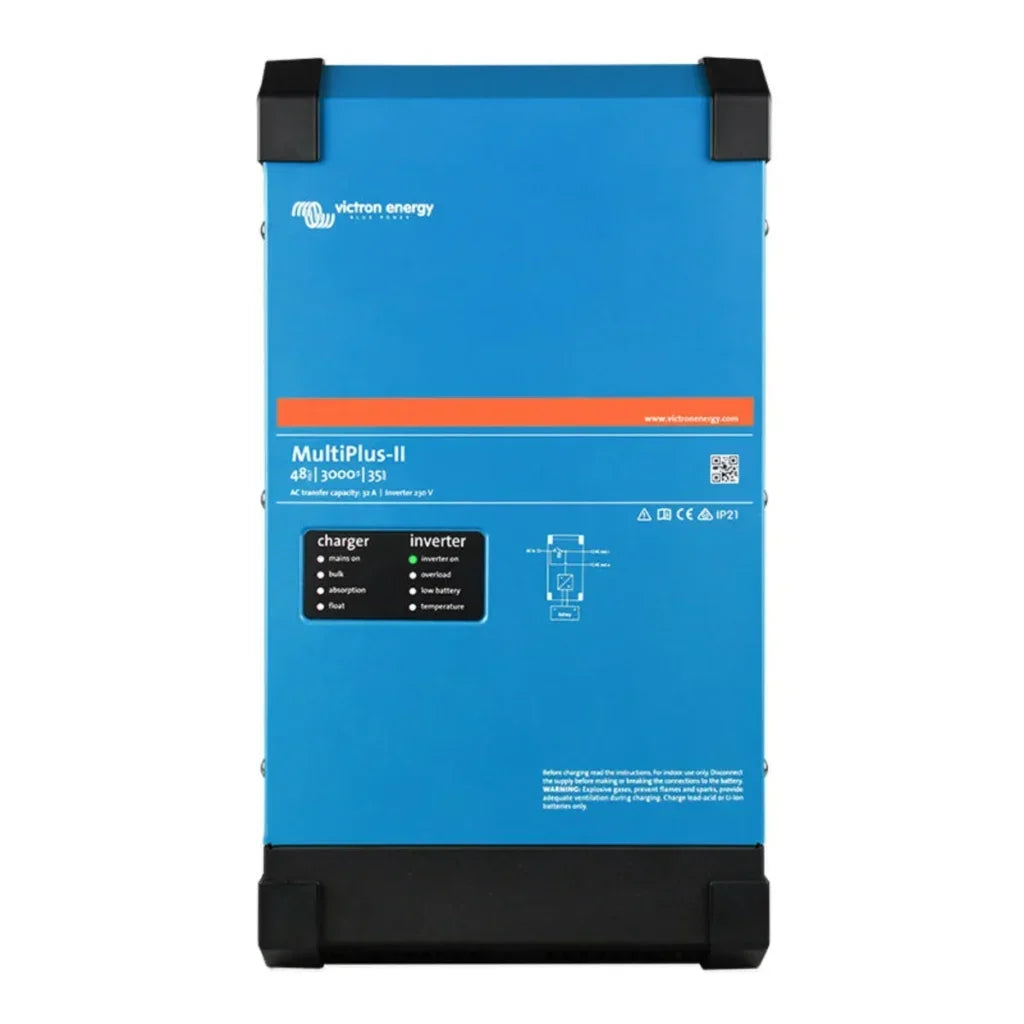

Victron Multiplus II 3kVA 2.4kW 48V Inverter-Charger

Victron Multiplus II 3kVA 2.4kW 48V Inverter-Charger

Regular price R 13,499.00

Wishlist Compare

Guarantee safe checkout

Victron Multiplus II 3kVA 2.4kW 48V Inverter-Charger

R 13,499.00

Features

A MultiPlus, plus ESS (Energy Storage System) functionality.
PowerControl and PowerAssist – Boosting the capacity of grid or generator power.
ESS: Energy Storage Systems.
On-site monitoring and control.
Remote configuring and monitoring.
SA: NRS 097 certified and COCT Certified

MultiPlus-II 48/3000/35 Specifications

PowerControl & PowerAssist: Yes
Transfer switch: 32A.
Maximum AC input current: 32A.

Inverter

DC Input voltage range: 38 – 66 V.
Output: Output voltage: 230 VAC ± 2%; Frequency: 50 Hz ± 0,1%.
Cont. output power at 25°C: 3000 VA.
Cont. output power at 25°C: 2400 W.
Cont. output power at 40°C: 2200 W.
Cont. output power at 65°C: 1700 W.
Maximum apparent feed-in power: 2500 VA.
Peak power: 5500 W.
Maximum efficiency: 95 %.
Zero load power: 11 W.
Zero load power in AES mode: 7 W.
Zero load power in Search mode: 2 W.

Charger

AC Input voltage range: 187 – 265 VAC.
Input frequency: 45 – 65 Hz.
Charge voltage ‘absorption’: 57,6 V.
Charge voltage ‘float’: 55,2 V.
Storage mode: 52,8 V.
Maximum battery charge current: 35 A.
Battery temperature and voltage sensor: VE.Bus Smart dongle (optional).

General

Auxiliary output: Yes (32 A) Directly connected to the AC input.
Programmable relay: Yes.
Protection: a – g (Please see specifications sheet.
VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration.
General purpose com. port Yes, 2x.
Remote on-off: Yes.
Operating temperature range: -40 to +65°C (fan assisted cooling).
Humidity (non-condensing): max 95%.

Enclosure

Material & Colour: Steel, blue RAL 5012.
Protection category: IP22.
Battery-connection: Two M8 bolts.
230 V AC-connection Screw terminals: 13 mm² (6 AWG).
Weight: 18 kg.
Dimensions (hxwxd): 506 mm x 275 mm x 147 mm.
