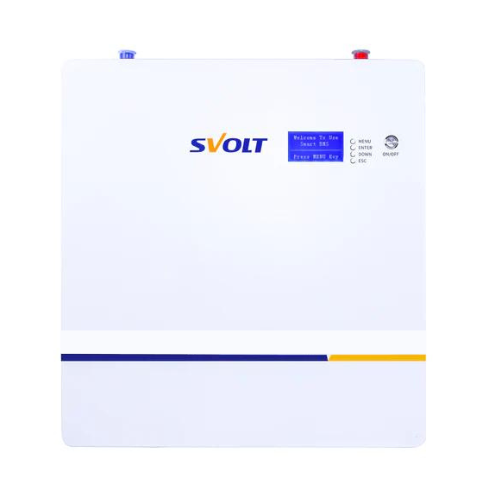

The SVOLT 51.2V 106Ah 5.4kw A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval groups which we all know are extremely recognized for their vehicles, using A-Grade Battery cells.
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets – Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Specifications
- Energy: 5.43kWh
- Installation Type: Wall Mounted
- Battery type-Chemistry: LiFePO4
- Nominal Voltage: 51.2V
- Nominal Capacity : 106Ah
- Weight (Approx.): 44KGS
- Terminal Type: M6
- Terminal Torque: 8.5NM
- Case Material: SPCC
- BMS build-in: Yes
- Internal Resistance:<25mO
- Efficiency – round trip:97%
- Self Discharge per Month:<3%
- Max parallel connectors: 16Pcs
- Series connections: Not Allowed
- Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
- Charge Temperature :20 C to 65
- Storage Temperature :0C to 50 C
- LCD Screen: Yes
- Voltage Window: Optional
- Recommend Charge Voltage: 56.0V
- Max Charge Voltage: 58.4V
- Recommend Charge current: 50Amp
- Max Discharging Voltage: 43.2V
- Max Continuous Discharge Current :100A
- Peak Discharge Current: 150A
- C-Rating: 1C
Package Contents:
- 1 x SVOLT 51.2V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
