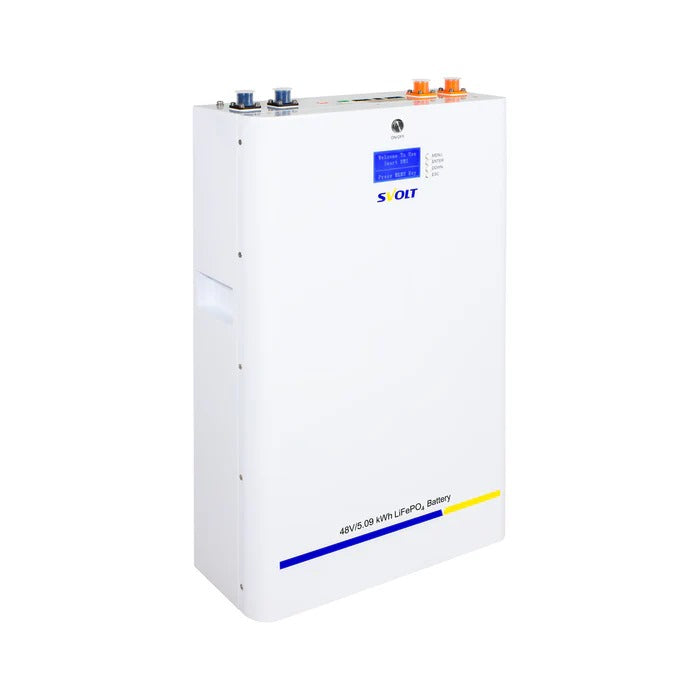

The SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery, manufactured by SVOLT in collaboration with Haval groups, offers exceptional performance and reliability. With A-Grade battery cells and advanced technology, this maintenance-free battery is ideal for various applications, including solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems. Its rack-mounted installation type and compact design make it suitable for industrial, residential, commercial, and private use.
Specifications :
- Energy:5.09kWh
- Installation Type: Wall Mounted
- Battery type-Chemistry: LiFePO4
- Nominal Voltage:48V
- Nominal Capacity :106Ah
- Energy Density:5427 KWh
- Dimensions(LxWxH) :688 x 447 x 211mm
- Weight (Approx.):49.5KGS
- Terminal Type: M6
- Terminal Torque:8.5NM
- Case Material: SPCC
- BMS build-in: Yes
- Internal Resistance:<30mO
- Efficiency – round trip:99%
- Self Discharge per Month:<3%
- Max parallel connectors:16Pcs
- Series connections:Not Allowed
- Cycle life (0.2C, 25°C@80% DOD) Discharge Temperature:6000 Cycles
- Charge Temperature :20° C to 65°
- Storage Temperature :0C to 50° C
- Bluetooth(App) :Optional
- LCD Screen: Optional
- Heating Function: Optional
- Voltage Window: Optional
- Recommend Charge Voltage:43.2V-58.4V
- Max Charge Voltage:57.6±0.20V
- Recommend Charge current:58.4±0.20V
- Max Discharging Voltage:43.2±0.20V
- Max Continuous Discharge Current :100A
- Peak Discharge Current:150A
Features :
- Manufactured by SVOLT in collaboration with Haval groups, known for their excellence in vehicles
- A-Grade lithium battery cells for superior performance and reliability
- Designed for environmentally sensitive areas and committed to recycling
- Widely used in industrial, residential, commercial, and private applications
- Maintenance-free construction for convenience
- Suitable for solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems
- Built-in Battery Management System (BMS) for efficient monitoring and protection
- High energy efficiency with a round trip efficiency of 99%
- Low self-discharge rate of less than 3% per month
- Compact and lightweight design for easy handling
- Optional features include Bluetooth (App), LCD screen, heating function, and voltage window
- Wide temperature range of operation and storage
- Warranty: 5 years
What’s In the Box :
- 1 x SVOLT 48V 106Ah 5.09kw A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
