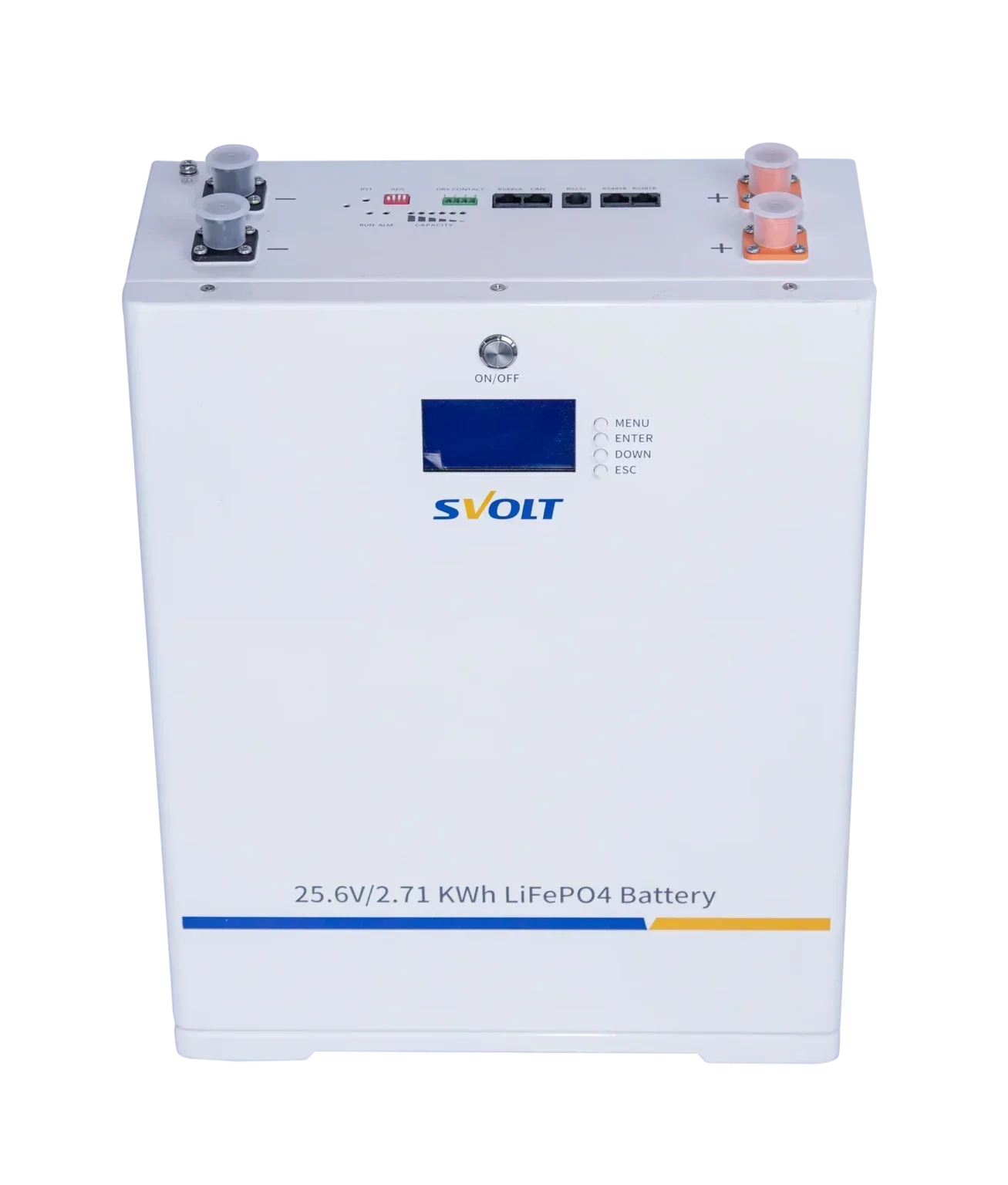

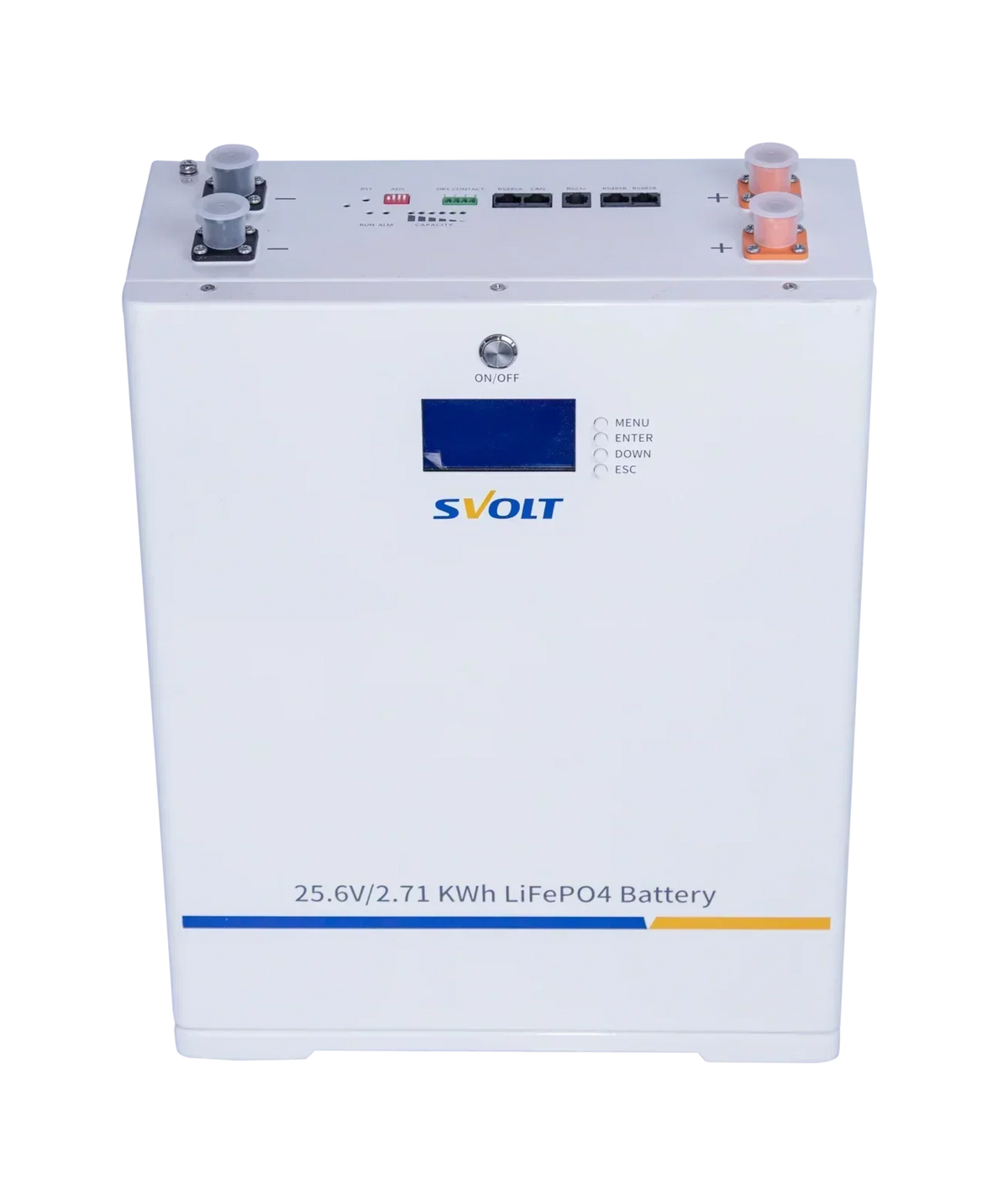

The SVOLT 24V 106Ah 2.71kWh A-Grade Lithium Battery is a high-quality product from the world-leading manufacturer SVOLT, renowned for its commitment to excellence and sustainability. Utilizing top-of-the-line A-Grade Battery cells, this battery delivers superior performance, increased capacity, and unmatched reliability. Its state-of-the-art high-power A-Grade cell technology makes it an ideal choice for environmentally sensitive areas, reflecting its dedication to recycling and environmental friendliness.
Specifications And Product features of the SVOLT 24V 106Ah 2.71kWh A-Grade Lithium Battery:
Key Features:
- A-Grade Cell Technology for superior performance
- Maintenance-free and eco-friendly design
- Suitable for a wide variety of markets and renewable energy applications
- Comes with 7 protection features for added safety
- Built-in Battery Management System (BMS) for optimized performance
- Mountable design for ease of installation
- Backed by a 5-year warranty for peace of mind
Battery Specifications:
- Energy: 2.71kWh
- Battery Type-Chemistry: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 25.6V
- Nominal Capacity: 106Ah
- Energy Density: 2713.6Wh
- Terminal Type: Fast Plug In & Plug Out
- Case Material: SPCC
- BMS Built-in: Yes
- LCD Screen for easy monitoring
- High efficiency with a round trip efficiency of >99%
- Self-discharge per month
- Maximum Parallel Connectors: 16Pcs
- Series Connections: Not Allowed
- Cycle Life (0.2C, 25°C @ 80% DOD): >6000 Cycles
- Wide temperature range for operation and storage
- Voltage Window: 21.6V – 29.2V
- Recommended Charge Voltage: 28.8±0.20V
- Max Charge Voltage: 29.2±0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 22.4±0.20V
- Max Discharging Voltage: 21.6±0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 150A
- Dimensions: 47cm (L) x 35cm (W) x 15.5cm (H)
- Weight: 28kg
BMS Characteristics:
- Equipped with Primary and Secondary Charging and Discharging Protection features
- Over Charge Voltage Protection to ensure battery safety
- Temperature Protection for optimal performance
- Communication Ports for efficient data exchange (Major RS485, RS232, CAN, Dryport)
What’s in the box:
- 1 x SVOLT 25.6V 106Ah Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
5 Years Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
