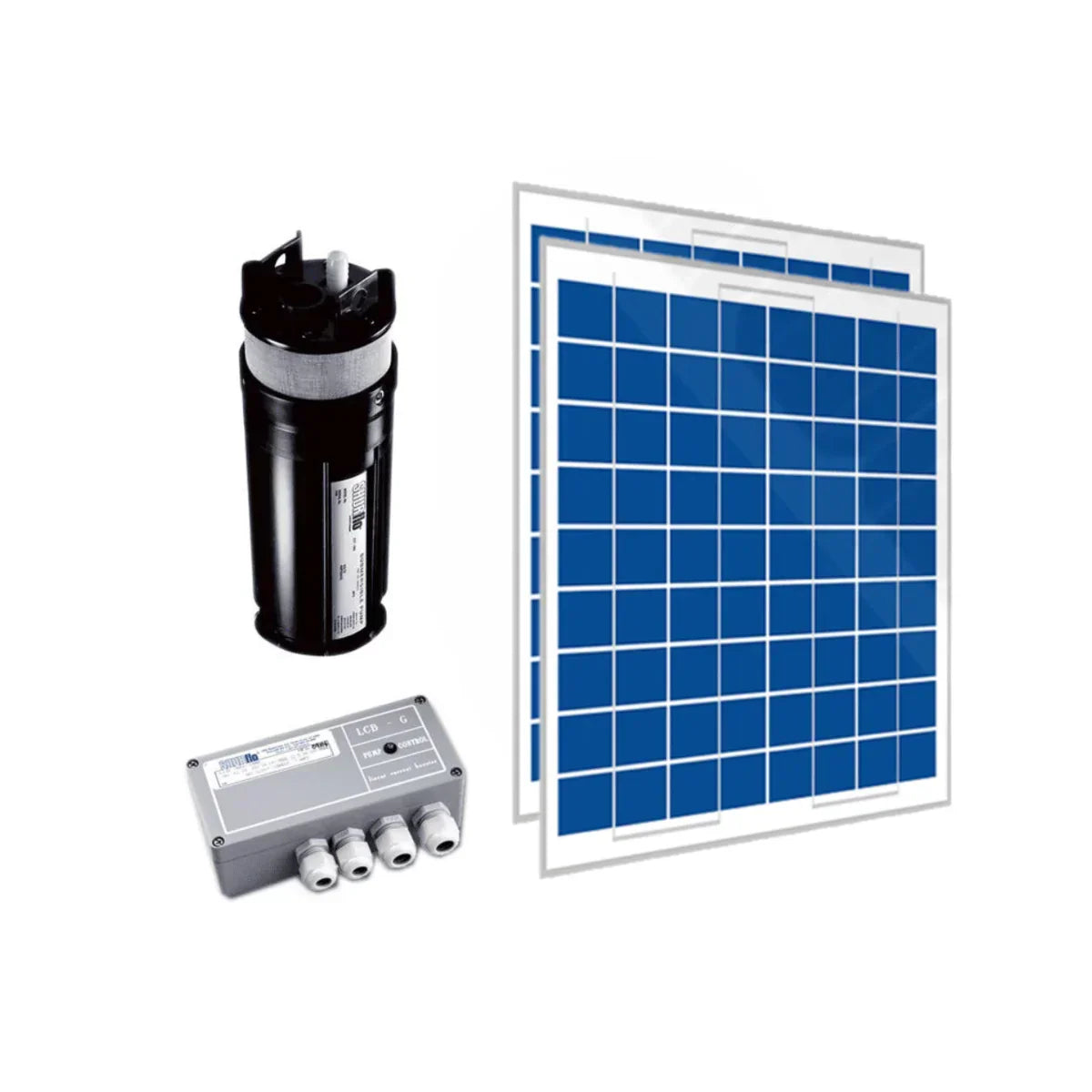

This kit consists of the following components 1 x Shurflo 9325-043-101 24V Submersible DC Pump SHURflo's 9300 series pump offers a solution to your remote water needs. It's rugged, durable and built to last. This pump delivers a steady 1.0 GPM operation at 100 PSI maximum at 70.1 m. It incorporates a unique waterblocked cable connector that is impervious to water leakage and condensation problems preventing waterwicking. Great for applications in livestock watering, irrigation, ponds, islands, remote homes and cabins.
Technical Specifications
Max. Flow (LPH): 300.
Amps: 4.6.
Volts: 24.
Max. Suction Lift (m.): 70m
Discharge Port (in.): 1/2" hose barb.
Pump Housing: Stainless steel fasteners.
Dimensions L x W x H: 96mm x 96mm x 305mm.
2 x Cinco 80W Solar Panels
Specifications
Rating: 80W
Efficiency: 15.5%
Width: 680mm
Height: 760mm
36 Cell Polycrystalline Solar Panel
Rigorous quality control meeting highest international standards
High-transmissivity low-iron tempered glass, strong aluminium frame using UV-resistant silicon.
Aesthetic appearance with excellent efficiency based on innovative photovoltaic technologies.
10 years limited product warranty
10 years @ 90% of the minimal rated power output
25 years @ 80% of the minimal rated power output
Mechanical Parameters
Module dimension (nm) - 837mm x 659mm x 34mm.
Matrix (nm) - 9 x 4.
Solar cell Type (nm) - Multi crystalline cells.
Front Cover (nm) - 3.2mm Thick Low iron tempered glass.
Frame Material (mm) - Silver Anodized Aluminium Alloy.
Junction Box (nm) - 3 Rail.
Shurflo 12V- 24V DC Pump Controller 902-200 LCB-75
Boost youic panels, into a combination that is better matched to that needed by the pump.
With the optional float switch installed, the controller will automatically stop pumping when the reservoir is full. The versatile 902-200 has all the features of the 902-100 and more. This controller includes a manual on/off switch for easy pump maintenance. The controller comes with high / low water level sensors so the pump will not run when the well water is too low. Weather proof enclosure.
Features
Increases daily water output up to 30%
System starts pumping earlier in the morning
System stops pumping later in the evening
Protects pump from low or high voltage conditions
Terminals for float switch
Switch selectable for 12 VDC or 24 VDC operation
Pump On / Off switch
Water tight enclosure and cable inlets
Includes water level monitor mode with probes and cable
Technical Specifications
Maximum power output 150 Watts
Operating temperature shutdown 176ºF (80ºC)
Ambient temperature 14ºF (-10ºC) to 113ºF (45ºC)
Maxy Input Voltage 45V
Min. Startup Voltage 25V
Shutdown Voltage 28V
Max. Output Current 7 Amps
