Introducing Sunsynk’s energy storage module well designed for residential UPS and off-grid applications. Cells produced by BYD, a global leader in lithium-ion battery development and manufacturing.

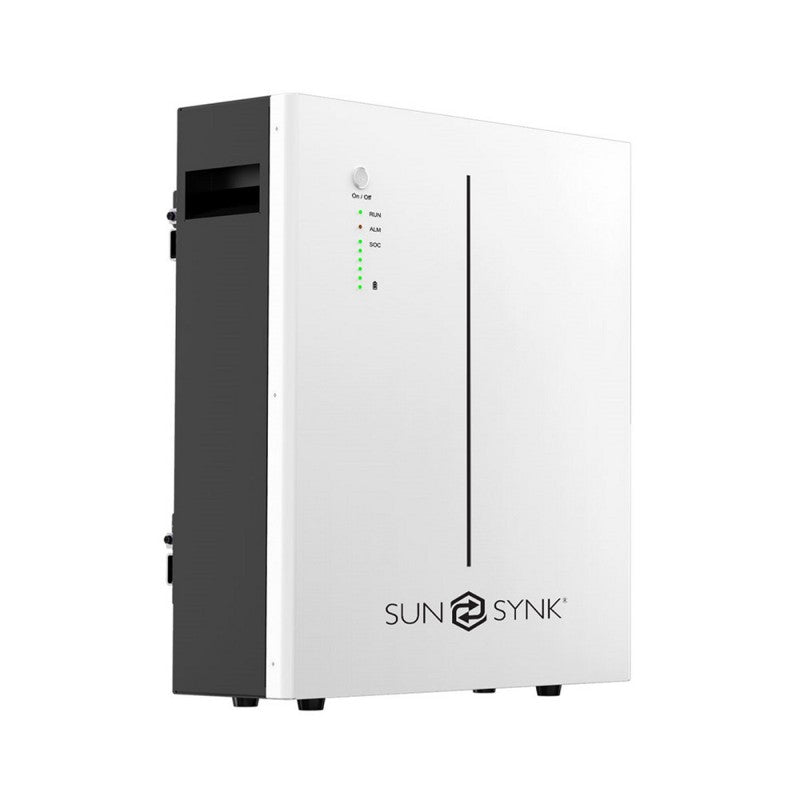

The Sunsynk Battery LFP Wall Mount 15.97kWh 51.2V can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25°C). Lithium ferro phosphate batteries provide excellent thermal stability and storage.
WARNING: These batteries contain BYD cells, not to be mistaken for the Sunsynk batteries which contain CATL cells. These batteries are almost identical apart from the difference in cell type, but this means you cannot mix BYD and CATL batteries in the same system.
MORE USABLE ENERGY
100% Depth of Discharge
FLEXIBLE INVESTMENT
Scalable from 10.65 to 85.2 kWh
SAFE & RELIABLE
Premium Lithium Iron Phosphate(LFP)
6000 cycles
EASY INSTALLATION
Floor Stand or Wall Mounted
HIGH DENSITY
Proprietary CTP Technology
PERFECT COMPATIBILITY
Compatible with Major PCS Brand
Technical Specification
Performance
- Nominal Voltage: 51.2 Vdc.
- Nominal Capacity: 312Ah.
- Battery Energy 1: 15970 Wh.
- Charge Voltage: 55.68 – 56.16VDC.
- Discharge Voltage: 45.6 – 56.16VDC.
- Nominal Charge/Discharge Current: 150A.
- Nominal Charge/Discharge Power: 7500W.
- Max Charge/Discharge Current: 300A.
- Max Charge/Discharge Power: 15000W.
- Short Circuit Current: 450A.
Communication
- Display: SOC status indicator, LED indicator.
- Communication: RS232, RS485, CAN.
General Specification
- Dimension( W×D×H mm ): 720×160×916mm.
- Weight (Kg): 140kg.
- Installation: Floor stand or Wall mounted.
- Working Temperature 2: -20℃ ~ 60℃.
- Storage Temperature: ≤25℃,12 months | ≤35℃,6 months | ≤45℃,3 months.
- Operating / Storage / humidity: ≤ 95%RH.
- Max Operating Altitude: ≤2000m.
- IP Rating: IP20.
- Cell Technology: LiFePO4，Lithium Iron Phosphate.
- Cycle life 3: 6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL.
- Scalability: Max 8 batteries in parallel.
- Warranty: 5 Years.
