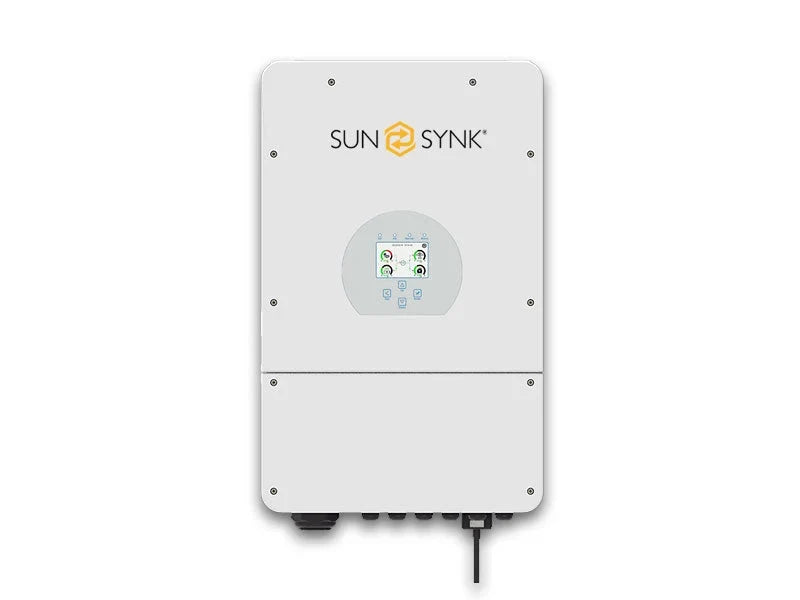

Sunsynk Inverter: The Ultimate 16kW Power Management Solution
Unlock the pinnacle of low-voltage inverter technology with the Sunsynk inverter. As the most powerful inverter of its kind globally, Sunsynk boasts an astounding maximum output power of 16kW and a battery charge current of 275A. It redefines energy management, enabling you to effectively control power flow from diverse sources like solar panels, the main power grid, and generators, storing and releasing power when you need it most. Take your energy management to unprecedented heights with Sunsynk.
Key Features:
-
Wi-Fi or GSM Monitoring: Stay connected to your power system with the choice of Wi-Fi or GSM monitoring. Keep a watchful eye on your energy production, consumption, and system performance from anywhere.
-
Visual Power Flow Screen: Sunsynk inverter offers a user-friendly visual power flow screen, providing you with clear insights into your energy flows and usage.
-
Parallel/Multi Invert Function: Achieve even greater power capacity by paralleling multiple inverters in both grid-tied and off-grid configurations. Sunsynk’s flexibility adapts to your growing energy needs.
-
Versatile Compatibility: Sunsynk inverter seamlessly integrates with main electrical grid voltages and power generators, offering you a range of power sources to choose from.
-
Self-Consumption and Grid Feed-In: Optimize your energy usage with the ability to self-consume and feed excess power back into the grid, allowing you to maximize your energy savings.
-
Auto Restart: Sunsynk automatically restarts when AC power is recovering, ensuring that your system remains operational even after power interruptions.
-
Auto Earth Bond Feature: An integrated relay allows for automatic earth bonding, enhancing the safety and reliability of your system.
-
Fully Programmable Controller: Customize your system with a fully programmable controller, tailoring your power management to your unique requirements.
-
Multiple Operation Modes: Sunsynk inverter offers configurable operation modes, including on-grid, off-grid, and uninterruptible power supply (UPS), providing versatility for different scenarios.
-
Battery Charging Customization: Fine-tune battery charging parameters based on your specific application, ensuring optimal battery performance.
-
High Efficiency: With a max efficiency of 97.6%, Euro Efficiency of 97%, and MPPT Efficiency of 99.9%, Sunsynk maximizes your energy utilization while minimizing waste.
Sunsynk inverter Specs:
-
Battery Input Data:
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range: 43~60V
- Max. Charging Current: 275A
- Max. Discharging Current: 300A
- Charging Curve: 3 Stages / Equalization
- External Temperature Sensor: Yes
- Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS
-
PV String Input Data:
- Max. DC Input Power: 18,000W
- Max PV Input Voltage: 450V
- MPPT Range: 250V~450V
- Start-up Voltage: 150V
- PV Input Current: 22A + 22A
- Max PV Isc: 26A + 26A
- No. of MPPT / Strings Per MPPT: 3/2
-
AC Output Data:
- Max. On-Grid AC Power: 16,000W
- Max. Off-Grid AC Power: 13,000W
- Peak Power (off-grid): 2 times of rated power, 10 seconds
- AC Output Rated Current: 65A
- Max AC Current: 70A
- Max Continuous AC Passthrough: 200A
- Frequency Range: 45Hz ~ 55Hz
- Voltage Range: 211V ~ 264V
- Grid Type: Single-Phase
- Current Harmonic Distortion: THD<3%(Linear load<1.5%)
Protection and Certifications:
Sunsynk inverter is equipped with a range of protection features, including integrated PV input lightning protection, anti-islanding protection, PV string input reverse polarity protection, insulation resistor detection, residual current monitoring unit, output over current protection, and surge protection. It adheres to various safety and grid regulations, including VDE 0126, AS4777, NRS2017, and more, ensuring compliance with international standards.
General Data:
- Operating Temperature Range: -25~55°C
- Cooling: Fan
- Noise: <30dB
- Communication with BMS: RS485; CAN
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 5 Years
