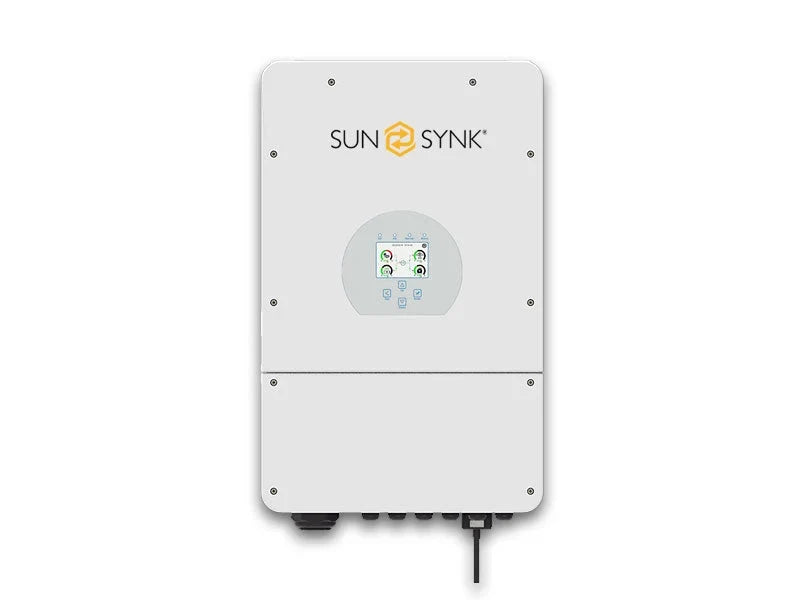

SUNSYNK 16kW Hybrid Inverter 3 Phase

Regular price R 36,743.00

Wishlist Compare

Guarantee safe checkout

SUNSYNK 16kW Hybrid Inverter 3 Phase

R 36,743.00

Description Material Reviews

SUNSYNK 16kW Hybrid Inverter (3 Phase) – SUNSYNK MAX
Model SUNSYNK MAX
The Most Powerful Low-voltage Inverter In The World.
Achieves a Maximum Output Power of 16kW & Battery Charge Current of 300A
Manages Power-flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require.
Colourful Touch LCD
Storing energy from diesel generator supported.
Wi-Fi & GSM monitoring supported.
Equipped with Visual power flow screen.
Parallel/multi invert function grid-tied & off-grid.
Grid Type: Single-Phase.
Protection Degree: IP65
Noise Level: <30dB
Maximum Charge & Discharge Current: 300A
Battery Charging Strategy: Self-Adaptation to BMS
Maximum DC Input Power: 18000W
MPPT Range: 250-450V
Start-up Voltage: 150V
Maximum On-Grid AC Power: 16000W
Maximum Off-Grid AC Power: 13000W
AC Output Rated Current: 65A
Maximum AC Current: 70A
Frequency Range: 45-55Hz
Voltage Range: 211-264V
Maximum Efficiency: 97.60%
MPPT Efficiency: 99.90%
Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
Battery Voltage Range: 43-60V
Communication with BMS: CAN/RS485
Fan Cooling
Operation Temperature: -25°C to 55°C
Installation Type: Wall Mounted.
Weight: 34.5Kg
Dimensions (W x H x D): 422 x 702 x 281 mm
Refer To Brochure For Detailed Product Specifications.
Product might vary from depicted images.
Graphics are for illustrative purposes only.
5 Year Limited Product Warranty.
Free Delivery Nationwide – South Africa
Recommended Solar Panel Configuration:
- Min 5 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
- First MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
- Second MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
- Third MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
