Sunsynk 12kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

Wishlist Compare

R 20,999.00

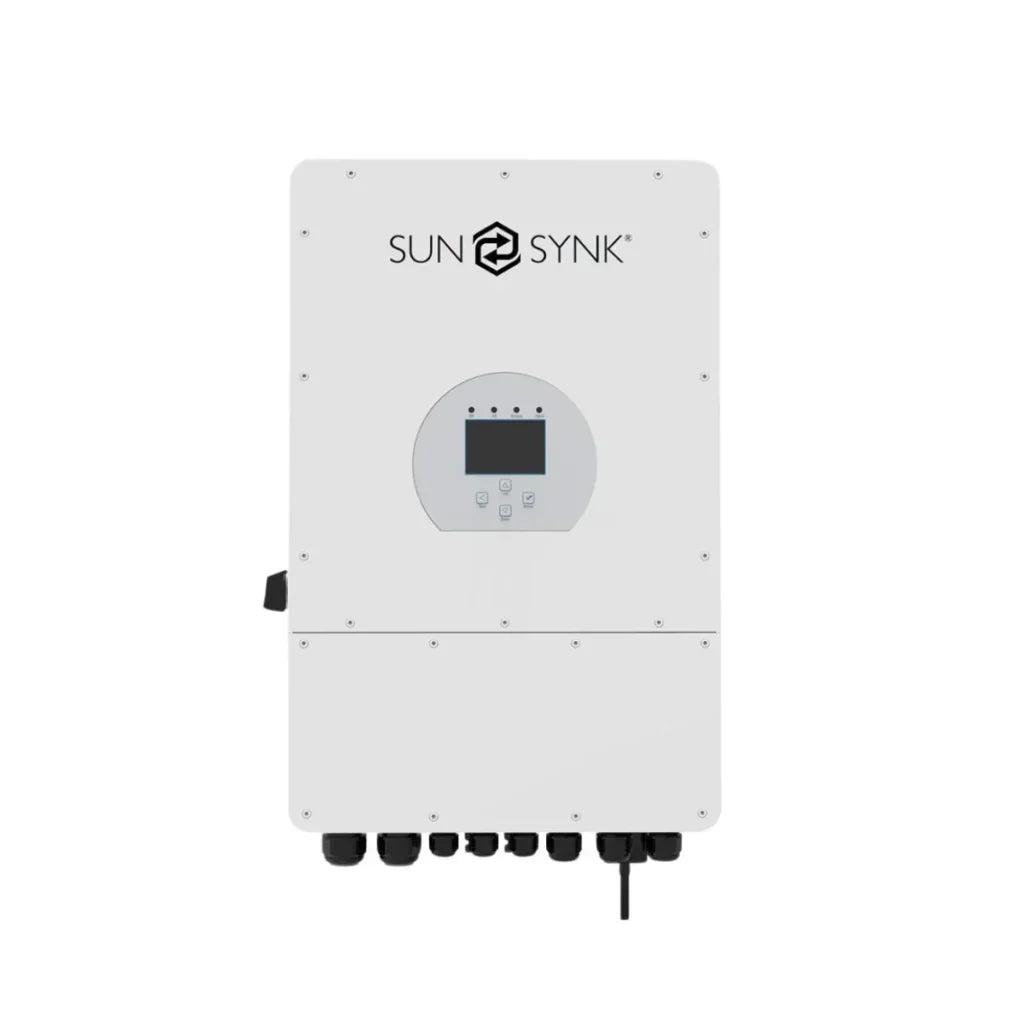

SUNSYNK 12kW Hybrid Inverter (1 Phase) – SUNSYNK-12K-SG02LP1
Model SUNSYNK-12K-SG02LP1
Wi-Fi Ready – works via Sunsynk App.
Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
Grid Type: Split Phase; 2/3 Phase; Single Phase
Protection Degree: IP65
Noise Level: <30dB
Maximum Charge/Discharge Current: 220A
Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
Maximum DC Input Power: 13000W
MPPT Voltage Range: 150-425V
3 x MPPT
Start-up Voltage: 125V
Rated AC Output Active Power: 10000W
Maximum AC Output Active Power: 11000W
AC Output Rated Current: 45.5A/43.5A
Backup UPS: 6ms Auto switchover time.
Maximum Efficiency: 97.60%
Euro Efficiency: 97.00%
MPPT Efficiency: 99.90%
Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
Battery Voltage Range: 40-60V
Communication with BMS: CAN/RS485
Smart Cooling
Operation Temperature: -45°C to 60°C, >45°C Derating
Installation Type: Wall Mounted.
Weight: 32Kg
Dimensions (W x H x D): 420 x 670 x 233 mm
