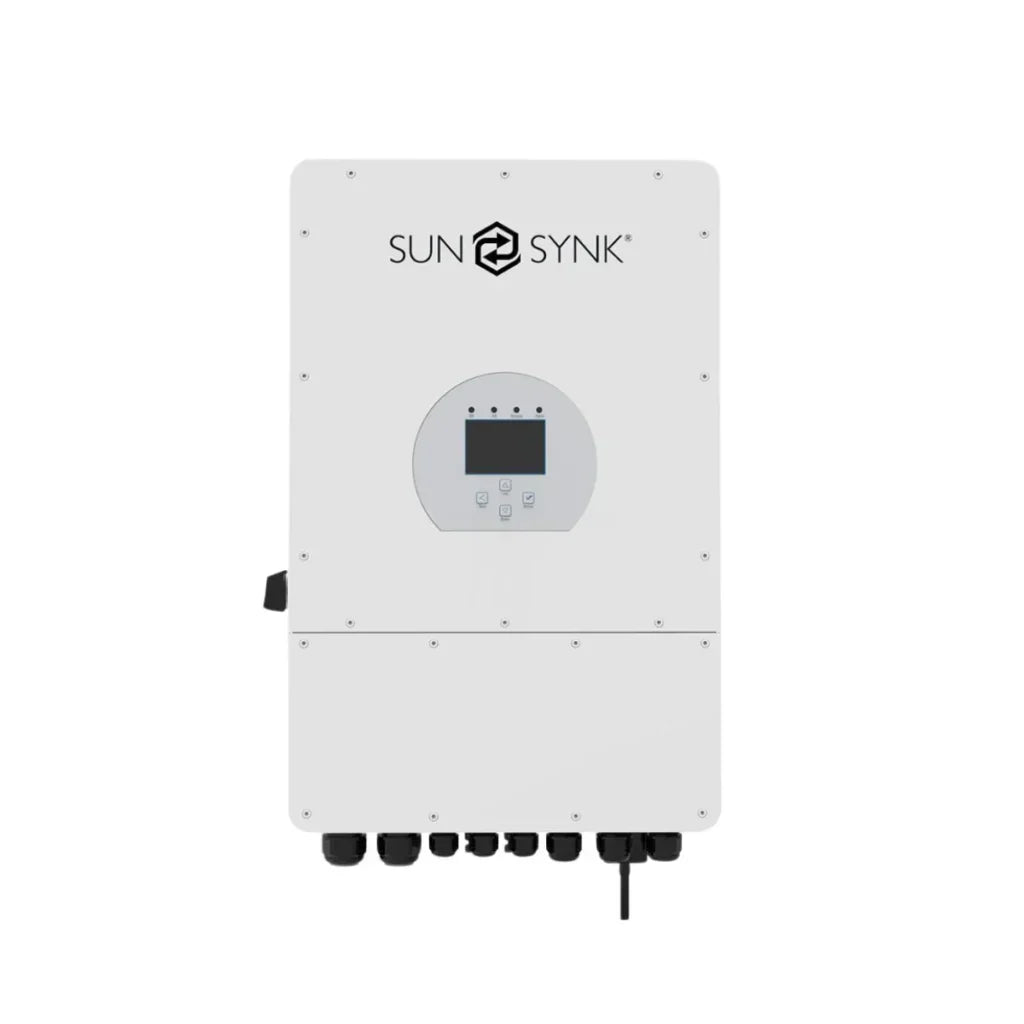

The SunSynk 10KW 48V Single Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.
Applications
- Marine (vessel power management).
- Power shedding (home/office/factory).
- UPS (fuel-saving systems).
- Remote locations with solar and wind generators.
- Building sites.
- Telecommunication.
Technical Specifications Battery Input Data
- Battery Type: Lead-acid or Lithium-ion.
- Battery Voltage Range: 40~60V.
- Max. Charging Current: 220A.
- Max. Discharging Current: 220A.
- Charging Curve: 3 Stages/Equalization.
- Charging Strategy for Li-Ion: Battery Self-adaption to BMS.
PV String Input Data
- Max. DC Input Power: 13000W.
- PV Input Voltage: 370V (125V~500)
- Start-up Voltage: 125V
- MPPT Range: 150V~425V.
- Full Load Dc Voltage Range: 200V-425V
- PV Input Current: 26A+26A+26A+
- Max. PV Isc:44A+44A+44A
- No. of Strings Per MPPT Tracker: 3 / 2+2+2
AC Output Data
- Rated AC Output and UPS Power: 10000W.
- Max. AC Power: 11000W.
- AC Output Rated Current: 45.5/43.5A
- Max AC Output Current: 50/47.9A
- Max Continuous AC Passthrough: 70A.
- Peak Power (Off Grid): 2 Time of Rated Power, 10 S
- Power Factor Adjustment Range:0.8 Leading to 0.8 Lagging
- Power Factor: 1
- Output Frequency and Voltage: 50 / 60Hz; L/N/PE 220/230Vac
- Grid Type: Split Phase; 2/3 phase, Single Phase
- Total Harmonics Current Distortion (THDi):<3% (of nominal power)
- Current Harmonic Distortion: THD<3% (Linear load<1.5%).
- DC Current Injection:<0.5% In
Efficiency
- Max. Efficiency: 97.6%.
- MPPT Efficiency: 97.0%.
- Euro Efficiency: 99.9%.
Protection
- Integrated: Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current
- Protection, Output Shorted Protection, Surge Protection
- Over Voltage Category: DC Type II/AC Type III
Certifications and Standards:
- Grid Regulation: VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
- Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
- Operating Temperature Range -40~60°C, >45°C Derating.
- Cooling: Smart Cooling
- Noise: ≤30 dB
- Communication with BMS RS485; CAN.
- Weight: 32kg.
- Size: 420W×670H×233D mm (Excluding connectors and brackets)
- Protection Degree: IP65.
- Installation Style: Wall-mounted.
- Warranty: 5 years.
