The SunSwim range of heat pumps focuses on providing consistently pleasant pool temperatures while keeping monthly running costs low. When maintained correctly, it enhances comfort, efficiency, and long-term value for your home.
Key Features
- Best-in-class efficiency ensuring maximum savings
- Aesthetically pleasing design
- One of the quietest units on the market
- Delivers warm water even in colder weather
- WiFi-enabled for convenient remote control
- Easy to install
- Simple to service

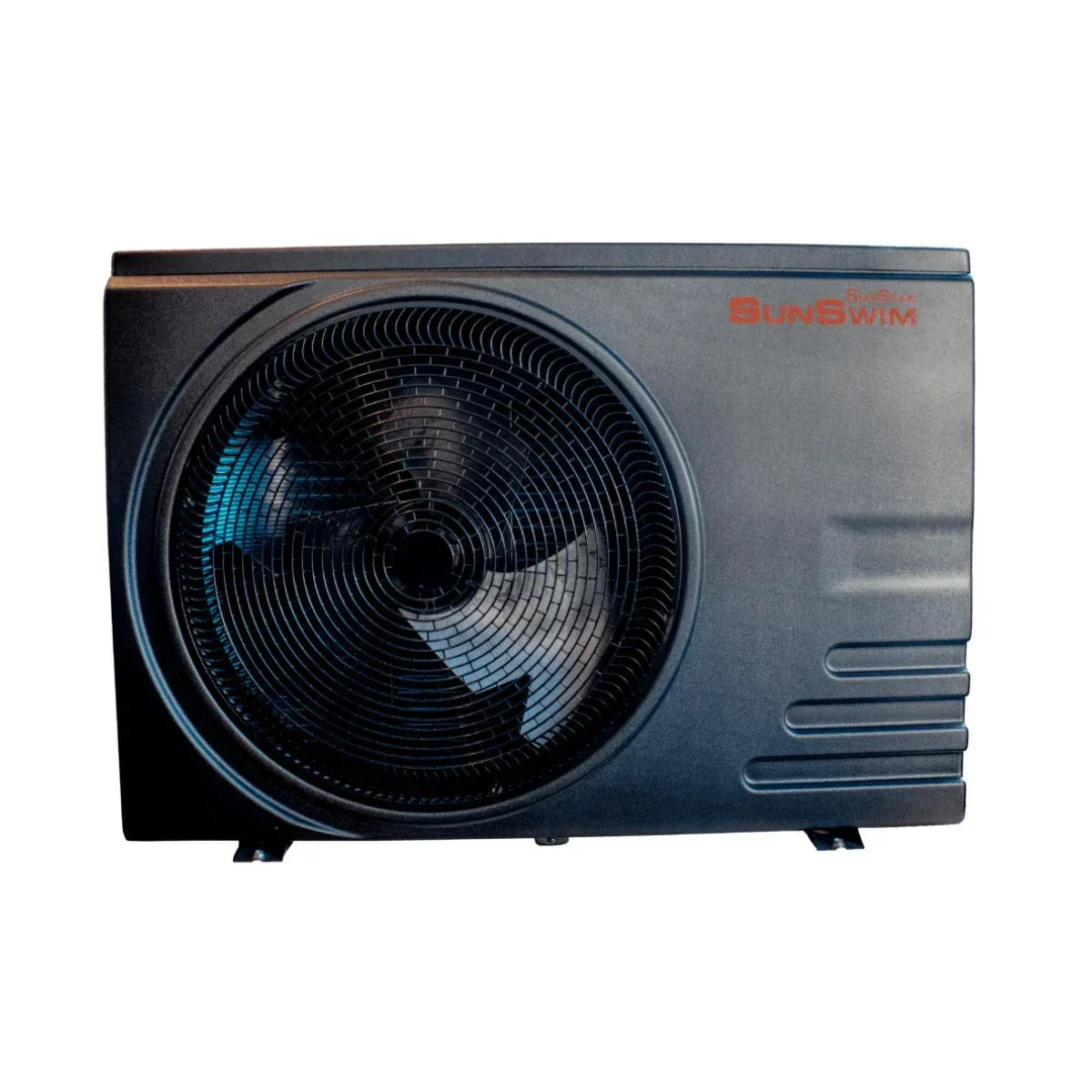

Included with the SunScan SunSwim 28kW Pool Heat Pump
- SunSwim 28kW inverter pool heat pump (suitable for pools up to 130 000L with blanket)
- Cantilever arm (per set)
- Support channel for heat pumps
- Spring nut
Technical Specifications
| Model |
SSP-INV028 |
| kW Rating |
28 kW |
| Maximum Pool Size (with blanket) |
130 000 L |
| Heating Capacity (Air 26°C, Hygro 80%, Water 26°C → 28°C) |
| Heating Capacity (kW) |
28.23 ~ 6.49 |
| Power Input (kW) |
4.06 ~ 0.48 |
| Current Input (A) |
15.45 ~ 2.18 |
| COP |
15.97 ~ 6.95 |
| Heating Capacity (Air 15°C, Hygro 70%, Water 26°C → 28°C) |
| Heating Capacity (kW) |
20.68 ~ 4.77 |
| Power Input (kW) |
4.17 ~ 0.63 |
| Current Input (A) |
18.95 ~ 2.86 |
| COP |
7.59 ~ 4.96 |
| Cooling Capacity (Air 35°C, Water 29°C → 27°C) |
| Cooling Capacity (kW) |
14.52 ~ 3.64 |
| Power Input (kW) |
4.04 ~ 0.55 |
| Current Input (A) |
15.36 ~ 2.5 |
| EER |
6.61 ~ 3.59 |
| Power Supply |
230V / 1 / 50Hz |
| Max Power Input |
5.962 kW |
| Rated Current |
18.95 A |
| Refrigerant |
R32 / 1170 g |
| Heat Exchanger |
Titanium |
| Air Flow Direction |
Horizontal |
| Water Flow Volume |
9 m³/h |
| Defrost Type |
4-way valve |
| Working Temperature Range |
-15°C to 43°C |
| Noise Level |
≤ 46 dB(A) |
| Casing Material |
ABS plastic |
| Net Dimensions (L × W × H) |
1056 × 416 × 744 mm |
| Package Dimensions (L × W × H) |
1146 × 460 × 744 mm |
| Net Weight |
86 kg |
| Gross Weight |
97 kg |
