The SunSwim range of heat pumps focuses on providing consistently pleasant pool temperatures with the lowest possible monthly running costs. When maintained correctly, it enhances comfort, efficiency, and long-term value for your home.
Key Features
- Best-in-class efficiency ensuring maximum savings
- Aesthetically pleasing design
- One of the quietest units on the market
- Delivers warm water even in colder weather
- WiFi-enabled for convenient remote control
- Easy to install
- Simple to service
Included with the SunScan SunSwim 10kW Pool Heat Pump

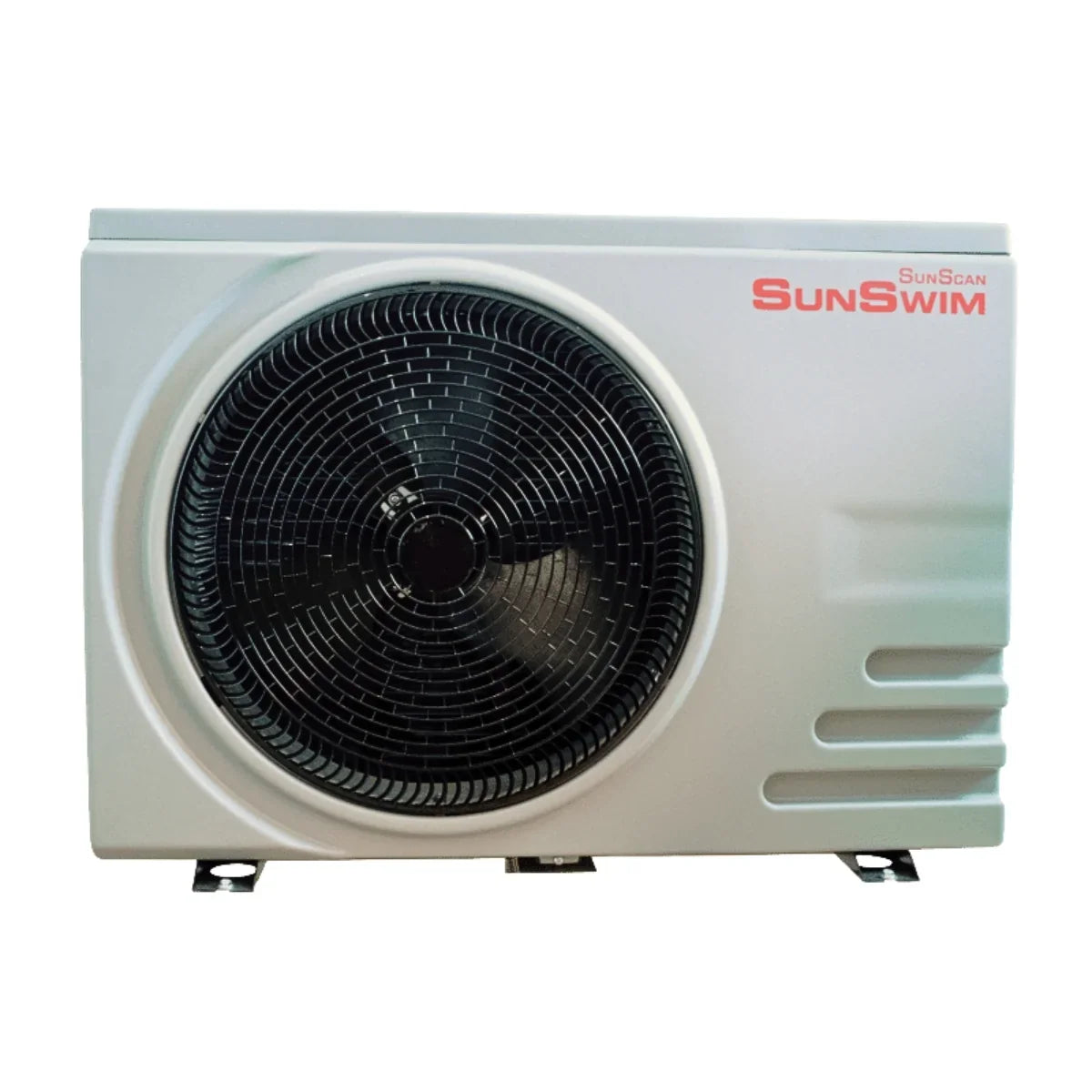

- SunSwim 10kW inverter pool heat pump (suitable for pools up to 50 000L with blanket)
- Cantilever arm (per set)
- Support channel for heat pumps
- Spring nut
Technical Specifications
| Model |
SSP-INV010 |
| kW Rating |
10 kW |
| Maximum Pool Size (with blanket) |
50 000 L |
| Heating Capacity (Air 26°C, Hygro 80%, Water 26°C → 28°C) |
| Heating Capacity (kW) |
10.21 ~ 2.34 |
| Power Input (kW) |
1.47 ~ 0.17 |
| Current Input (A) |
6.69 ~ 0.77 |
| COP |
14.68 ~ 7.02 |
| Heating Capacity (Air 15°C, Hygro 70%, Water 26°C → 28°C) |
| Heating Capacity (kW) |
7.62 ~ 1.76 |
| Power Input (kW) |
1.54 ~ 0.23 |
| Current Input (A) |
7 ~ 1.05 |
| COP |
7.58 ~ 4.95 |
| Cooling Capacity (Air 35°C, Water 29°C → 27°C) |
| Cooling Capacity (kW) |
5.36 ~ 1.38 |
| Power Input (kW) |
1.51 ~ 0.21 |
| Current Input (A) |
6.86 ~ 0.95 |
| EER |
6.51 ~ 3.54 |
| Power Supply |
230V / 1 / 50Hz |
| Max Power Input |
2.853 kW |
| Rated Current |
7 A |
| Refrigerant |
R32 / 460 g |
| Heat Exchanger |
Titanium |
| Air Flow Direction |
Horizontal |
| Water Flow Volume |
3.5 m³/h |
| Defrost Type |
4-way valve |
| Working Temperature Range |
-15°C to 43°C |
| Noise Level |
≤ 43 dB(A) |
| Casing Material |
ABS plastic |
| Net Dimensions (L × W × H) |
836 × 379 × 591 mm |
| Package Dimensions (L × W × H) |
930 × 400 × 716 mm |
| Net Weight |
43 kg |
| Gross Weight |
53 kg |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
