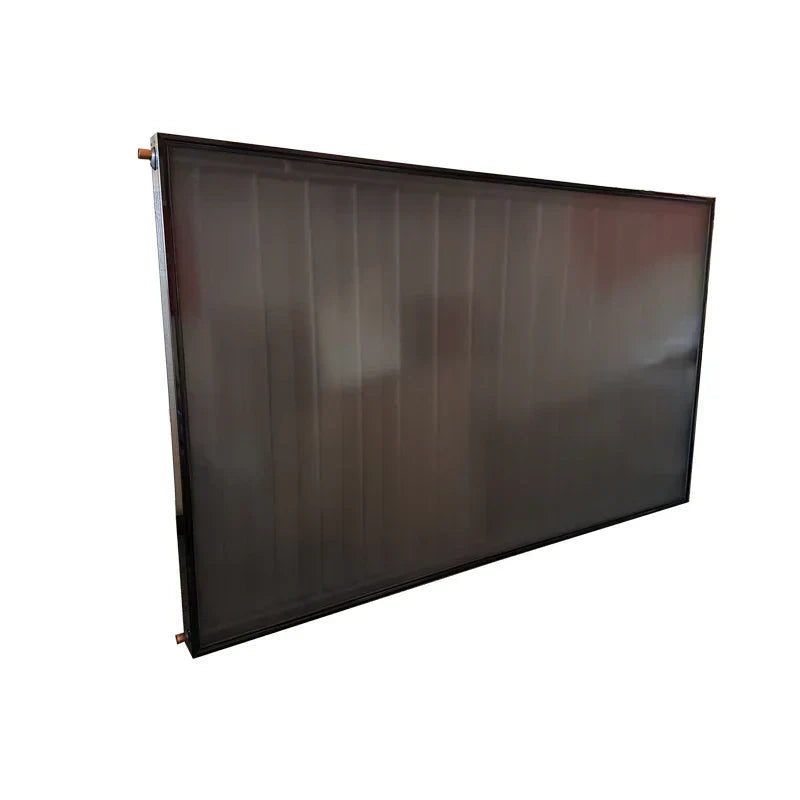

Features and Benefits
• Unique Copper Aluminium Selective coating offers higher adsorption, reduces loss, longer life.
• Unique air filtration vents that help to prevent moisture build up on the inside of the panel.
• Low Iron prismatic glass offers max transmittance, less reflected radiation.
• Ripped absorber surface offers higher performance.
• Aluminium Anodized Casing, no rust.
• Risers are sonic welded.
• Probe pocket measure temperature.
• 5 year warranty.
Technical Specifications
• Overall area (m²) - 2.4.
• Absorber area (m²) - 2.21.
• Aperture area (m²) - 2.24.
• Risers - 9. 11.
• Dimensions (L x W x H)(mm) - 2005 x 1200 x 80.
• Weight (kg) - 38Kg.
• Absorber Capacity (L) - 1.99.
• Frame material - Aluminium-alloy.
• Surface Material - Aluminium-alloy.
• Back plate - Chromodeck.
• Absorber Sheet - Cu/Al, oxide film.
• Absorption [%] - 94%.
• Emission [%] - 8 (80°±5°).
• Manifold Ø (mm) - Ø 22 x 0.75.
• Risers Ø (mm) - Ø 10 x 0.5.
• Insulation Material - Glass Wool.
• Side Insulation Thickness - 25mm.
• Back Insulation Thickness - 35mm.
• Glass - Woven ultra-white toughened solar safety glass.
• Cover Thickness - 3mm.
