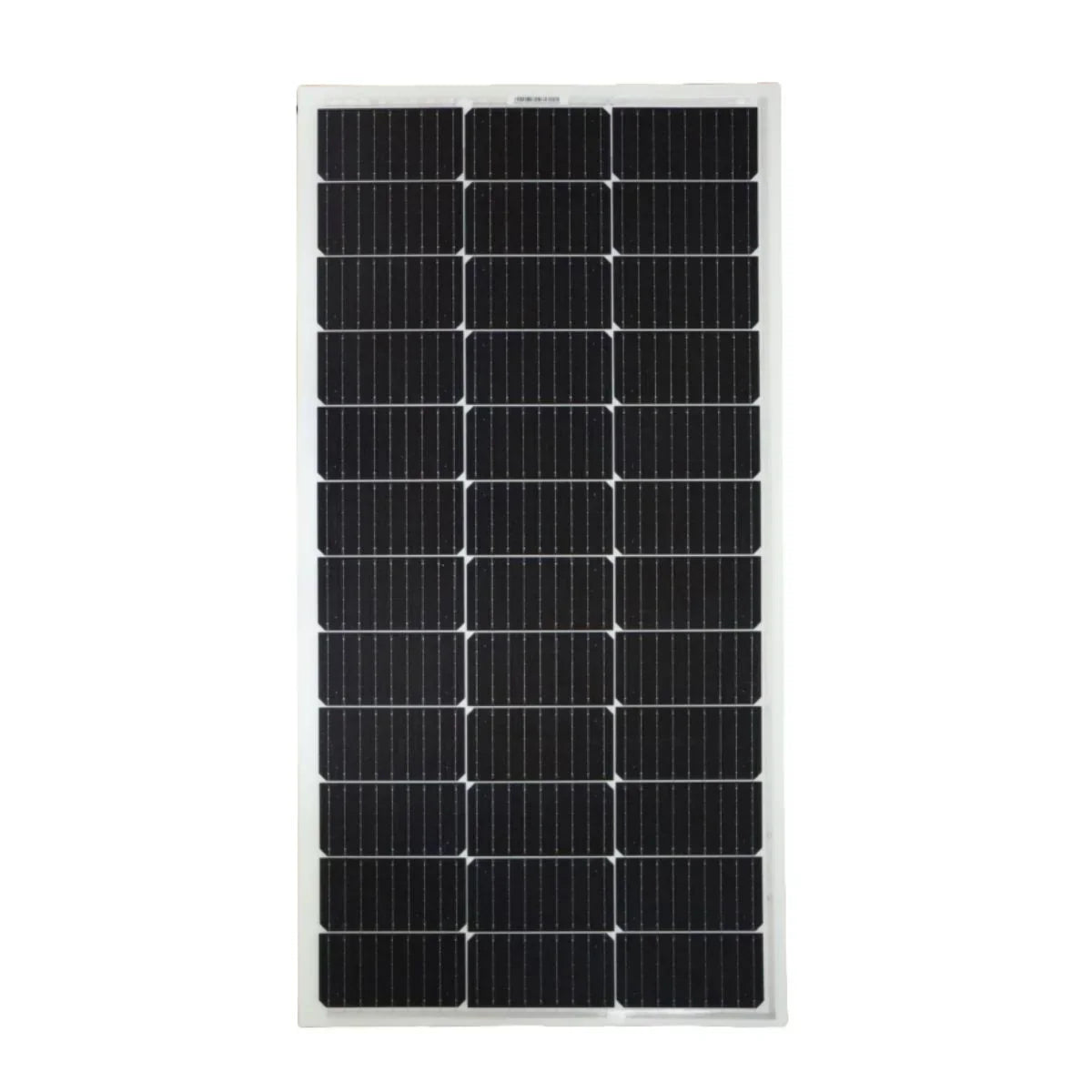

SunMan Flexible 100W Ultra-Light Mono Solar Panel with Front Connectors

SunMan Flexible 100W Ultra-Light Mono Solar Panel with Front Connectors

Regular price R 1,500.00

Wishlist Compare

Guarantee safe checkout

SunMan Flexible 100W Ultra-Light Mono Solar Panel with Front Connectors

R 1,500.00

Features:

Ultra-light: Weighs only 2.1kg, 70% lighter than traditional glass modules.
Aesthetic: Seamless integration with underlying installation surface.
Effortless Installation: Quick Bonding installation method requires no roof penetration, reduces installation time by 40%, and eliminates mounting hardware.
Durable: First glassless module to pass standard durability tests including PID, salt mist, and ammonia corrosion resistance.

5-Year Warranty

Electrical Specifications

Maximum Power Voltage (Vmp)	21.2 V
Maximum Power Current (Imp)	4.75 A
Open-circuit Voltage (Voc)	25.2 V
Short-circuit Current (Isc)	5.12 A
Module Efficiency	15.7%
Operating Temperature	-40°C to 85°C
Maximum System Voltage	600 V DC (IEC)
Maximum Series Fuse Rating	20 A
Application Class	Class A
Power Tolerance	0 / +5 W

Mechanical Characteristics

Product Model	SMF100F-3X12UW
Solar Cell	Mono (6 inches)
No. of Cells	36 (3 × 12)
Module Dimensions	1093 × 552 × 2 mm
Weight	2.1 kg
Backsheet	White
Junction Box	IP68 rated
Output Cables	Photovoltaic cable 4.0 mm², (+)150 mm / (-)450 mm
Connector	MC4 compatible
