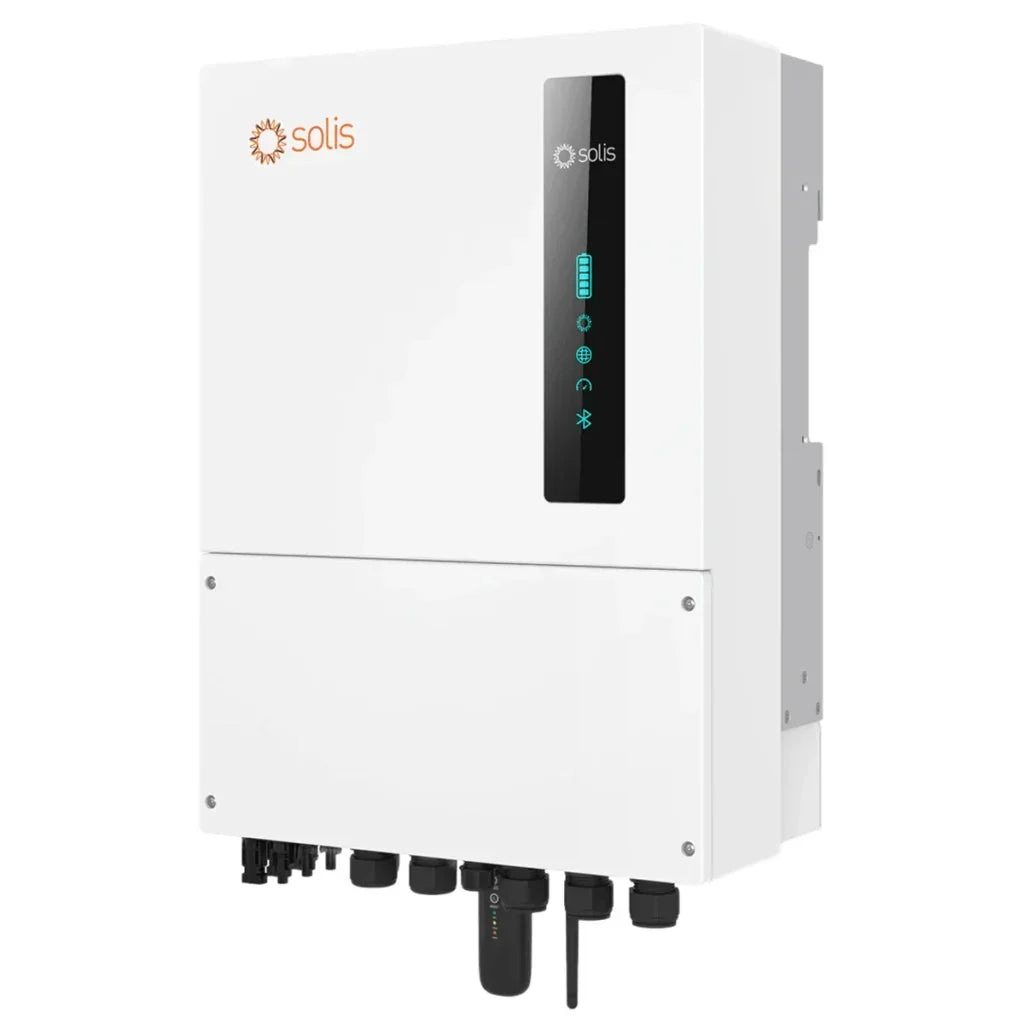

S6-EH1P8K-L-PRO, Solis S6 Pro 8kW Advanced Hybrid Inverter PRO model provides solutions for demanding power scenarios. It features automatic UPS switching and 24/7 intelligent energy management through Bluetooth/Wi-Fi/App. Maximum transfer time of 4ms for uninterrupted supply and comes with Wi-Fi/LAN datalogger, CT, and more
Features
- Automatic UPS switching
- Supports 1ph and 3ph flexible connection with max 48kW in parallel
- Up to 190A max charge/discharge current
- 6 customisable charge/discharge time settings
- Compatible with lead-acid and lithium batteries, with multiple battery protection features
- Supports peak shaving control in both “self-use” and “generator” mode
- Max PV input of 12800W dual MPPT with PV string current of 16A/20A at 600V.
- Supports 1ph and 3ph flexible parallel connections with 6 units max for 48kW back-up.
- Generator connectivity with automatic On/Off control.
- 190A charge and discharge current.
- 10 second, 200% surge power backup overload capability.
- 24 hour real-time intelligent energy management – Bluetooth/Wi-Fi/App.
- Uninterrupted power supply with 4ms reaction time.
- Comes with a Wi-Fi/LAN datalogger, CT and more.
- 5-year warranty – extendable to 10-years – Free extension when paired with Hubble batteries.
- SA: NRS 097 certified and COCT Certified
Technical Specifications
Input DC (PV side)
- Recommended max. PV power: 12.8 kW
- Max. input voltage: 600 V
- Rated voltage: 330 V
- Start-up voltage: 90 V
- MPPT voltage range: 90-520 V
- Max. input current: 32 A / 32 A
- Max. short circuit current: 36 A / 30 A
- MPPT number/Max. input strings number: 2/3
Battery
- Battery type: Li-ion / Lead-acid
- Battery voltage range: 40-60 V
- Max. charge / discharge power: 8 kW
- Max. charge / discharge current: 190 A
- Communication: CAN/RS485
Output AC (Grid side)
- Rated output power: 8 kW
- Max. apparent output power: 6.6 kVA
- Operation phase: 1/N/PE
- Rated grid voltage: 220 V / 230 V
- Rated grid frequency: 50 Hz / 60 Hz
- Rated grid output current: 36.4 A / 34.8 A
- Max. output current: 40 A
- Power factor: >0.99 (0.8 leading – 0.8 lagging)
- THDi: <2%
Input AC (Grid side)
- Input voltage range: 187-253 V
- Max. input current: 50 A
- Frequency range: 45-55 Hz / 55-65 Hz
Output AC (Back-up)
- Rated output power: 8 kW
- Max. apparent output power: 2 times of rated power, 10 s
- Back-up switch time: <4 ms
- Rated output voltage: 1/N/PE, 220 V / 230 V
- Rated frequency: 50 Hz / 60 Hz
- Rated output current: 36.4 A / 34.8 A
- Max. output current: 40 A
- Max. AC Passthrough current 50A
- THDv (@linear load): <2%
Efficiency
- Max. efficiency: > 97.5%
- EU efficiency: > 96.2%
Protection
- DC reverse-polarity protection: Yes
- Ground fault monitoring: Yes
- Integrated AFCI (DC arc-fault circuit protection): Yes (Activation required)
- Protection class/Over voltage category: I/II
General Data
- Dimensions (W*H*D): 406*560*215 mm
- Weight: 27 kg
- Topology: High frequency isolation (for battery)
- Operating ambient temperature range: -40 ~ +60°C
- Ingress protection: IP66
- Cooling concept: intelligent redundant fan-cooling
- Max. operation altitude: 4000 m
- Grid connection standard: NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
- Safety/EMC standard: IEC/EN 62109-1/-2, EN 61000-6-2/-3
Features
- DC Connection: MC4 plug (PV port) / Terminal Block (BAT port)
- AC Connection: Terminal Block
- Display: LED + APP
- Communication:RS485, CAN, Optional: Wi-Fi, GPRS, LAN
