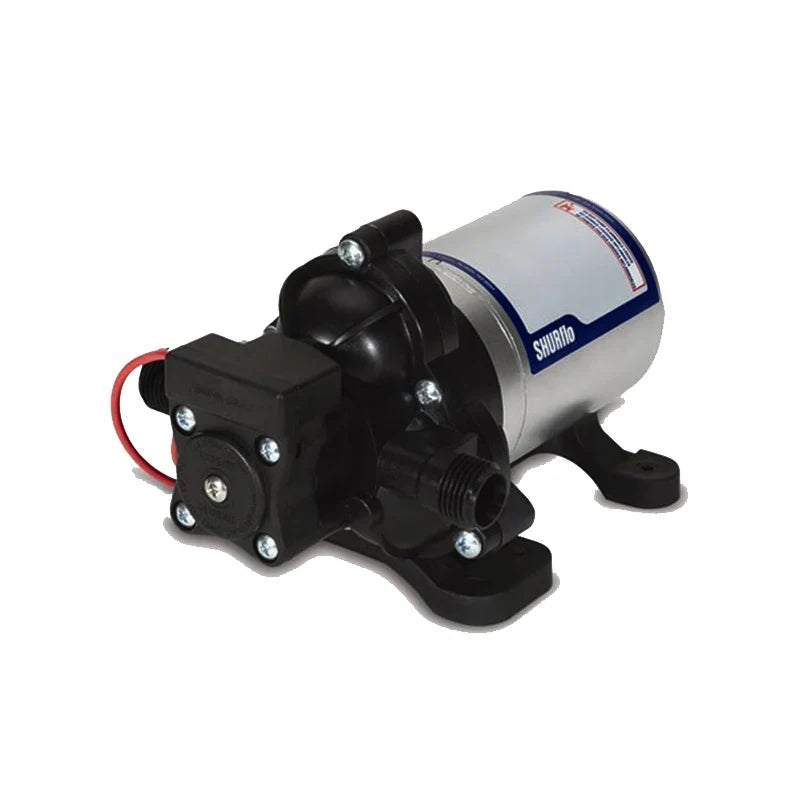

Shurflo Trail King 7 12V Caravan Demand Pump

Features

• Trail King 7 12V/1.4Bar
• 12VDC Permanent Magnet, Intermittent Duty.
• Protection Thermal Overload.
• Automatic Restart.
• 3 Chamber Diaphragm.
• 1 Year Limited Warranty (not as per specifications sheet).

Specifications

• Name: Trail King 7 12V/1.4Bar.
• Model: 2095-204-112.
• Voltage: 12 VDC.
• Flow Rate: 7 LPM.
• Amps (Max.): 10.
• Shut-Off Pressure: 1.4.BAR.

Pump

• Type: 3 Chamber Diaphragm.
• Ports: 1/2”-14 NPSM-Male.
• Liquid: 54 °C Max.
• Prime: 2.7 M.
• Inlet pressure: 2.1 Bar Max.
• Run Dry: Yes.
• Dimensions(LxWxH): 197mm x 127mm x 113mm.
• Weight: 2.3kg

Electrical

• Motor: 12VDC Permanent Magnet, Intermittent Duty.
• Protection Thermal Overload, Automatic Restart.
• Leads: 16 AWG, 16” [40 cm] Red +, 13” [33 cm] Black -.
• Fuse: 10 Amp Time Delay Recommended.
• Control: Adjustable Switch with Check Valve.

Materials

• Housing: Polypropylene.
• Valves: EPDM.
• Diaphragm: Santoprene.
• Hardware: Zinc Plated Steel.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
