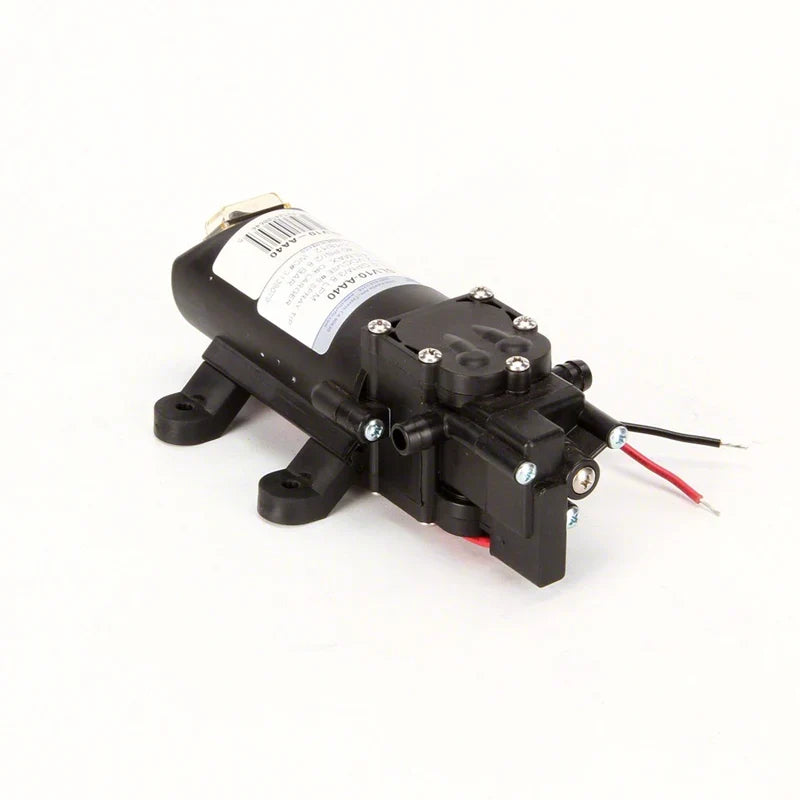

Shurflo SLV10-AA40 12V Demand Pump

Features & Benefits

• Automatic Demand; 25 PSI [1.72 BAR] On / 40 PSI [2.8 BAR] Off.
• Self-Priming Up to 2.5 Vertical Feet [.76 M].
• Viton or EPDM Valves.
• Thermally Protected Ball Motor with Splash-Proof Housing Available.
• Integral On/Off Switch Optional.
• Dimensions 27 × 14 × 13 cm.
• 1 GPM Open Flow.

Technical Specifications

• Model: SLV10-AA40.
• Open Flow: 1.0 GPM.
• Diaphragm Material: Santoprene®.
• Control Type: Demand Switch.
• Port Size: 3/8" Barb Ports.
• Motor Finish: Splash proof.
• Voltage: 12 Vdc.
• PSI: 3, 10, 20, 30.
• BAR: 0.2, 0.7, 1.4, 2.1.
• L/min: 3.4, 2.8, 2.3, 1.9.
• Amps: 1.8, 2.1, 2.3, 2.5.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
