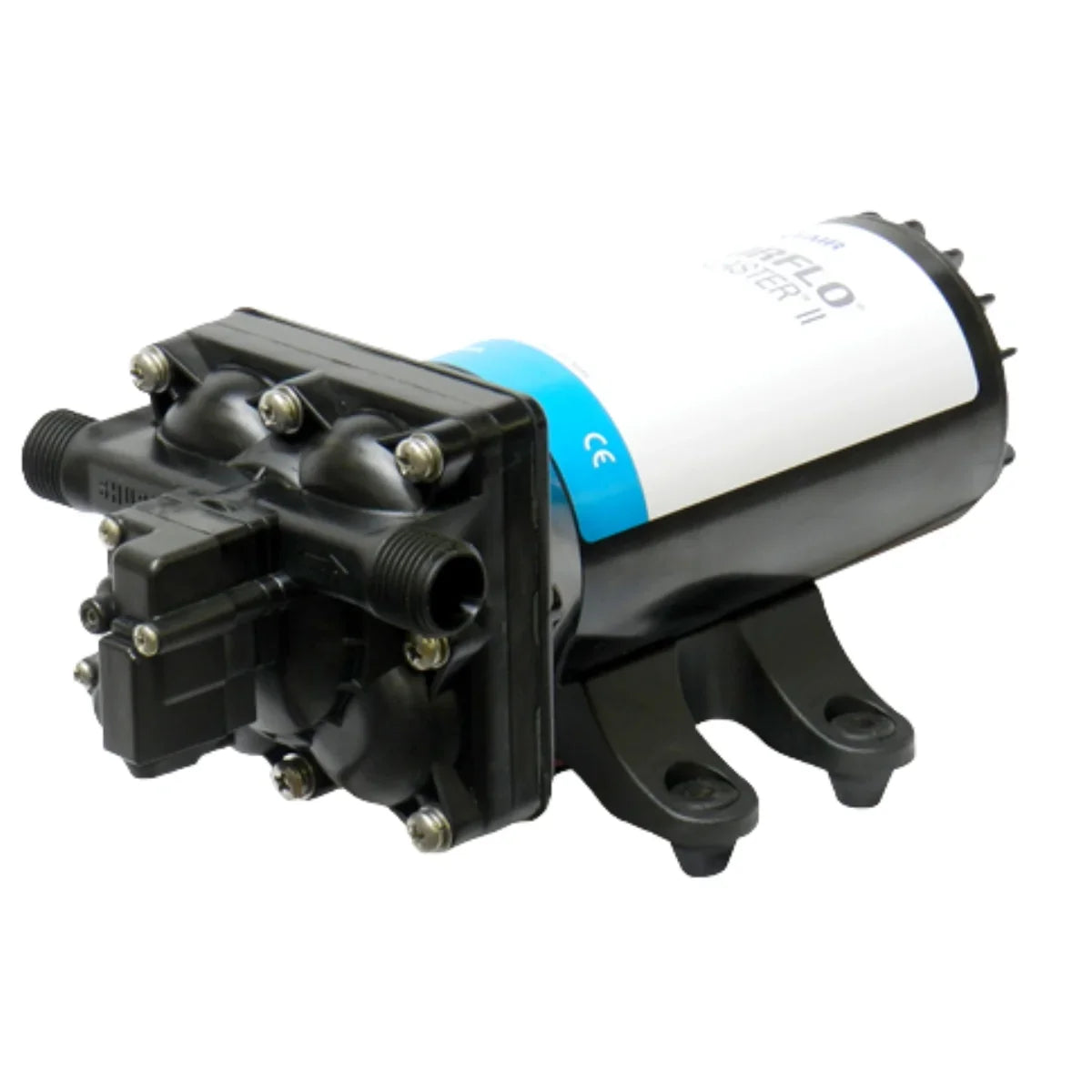

Shurflo Pro Blaster 5.0 4258-153-A09 12V Washdown Pump

The Shurflo Pro Blaster 5.0 4258-153-A09 12V Washdown Pump is a powerful and reliable solution for all your onboard washing needs. With a high flow rate of 5 gallons per minute and a sturdy 12V motor, it efficiently removes dirt and grime while saving you time and effort. Perfect for boats, RVs, and other marine applications.

Features:

• Replaces 5901
• Sealed Switch
• Sealed Motor
• Corrosion Resistant Electro
• Independent Chambers
• Built-In Check Valve
• Co-Molded Diaphragm
• Self-Priming up to 6 Feet
• Dry Run Capability
• Thermally Protected
• Ignition Protected, CE

What is in the box:

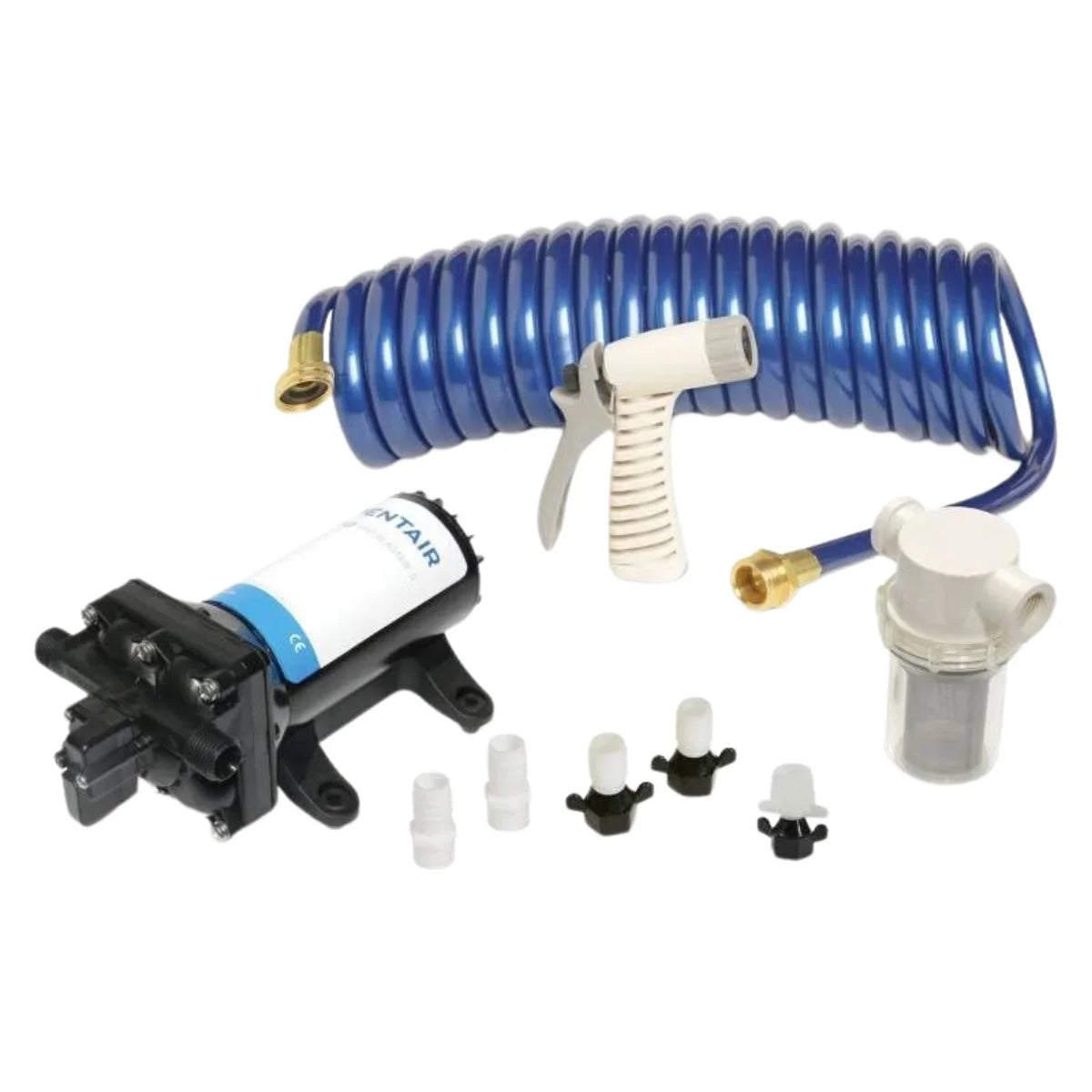

• Fittings, Nozzle, Raw Water Strainer and a 25' Blue Coiled Hose Included

Pump Design:

• Type: 4 Chamber Diaphragm pump
• Ports: ½"-14 NPSM-Male
• Liquid: 130°F [54°C] Max
• Dry-Prime: 6 feet [1.82 M]
• Run Dry: Yes
• Inlet Pressure: 30 PSI Max. [2.06 Bar]

Electrical:

• Motor: 12V DC Permanent Magnet, Intermittent Duty.
• Protection: Thermal Overload, Automatic Restart
• Leads: 14 AWG, 14 ¾" [37 cm] Red +, 15" [38 cm] Black
• Fuse: 20 Amp Recommended
• Control: Shut-Off 60 PSI [4.1 Bar] ± 2 PSI [0.13 Bar]
• Re-start 45 PSI [3.1 Bar] ± 2 PSI [0.13 Bar]

Materials of Construction:

• Housings: Polypro
• Valves/Seals: EPDM
• Diaphragm: Santoprene
• Hardware: Stainless Steel

Dimensions: 10" x 5" x 4.75" [254 x 127 x 120mm]

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
