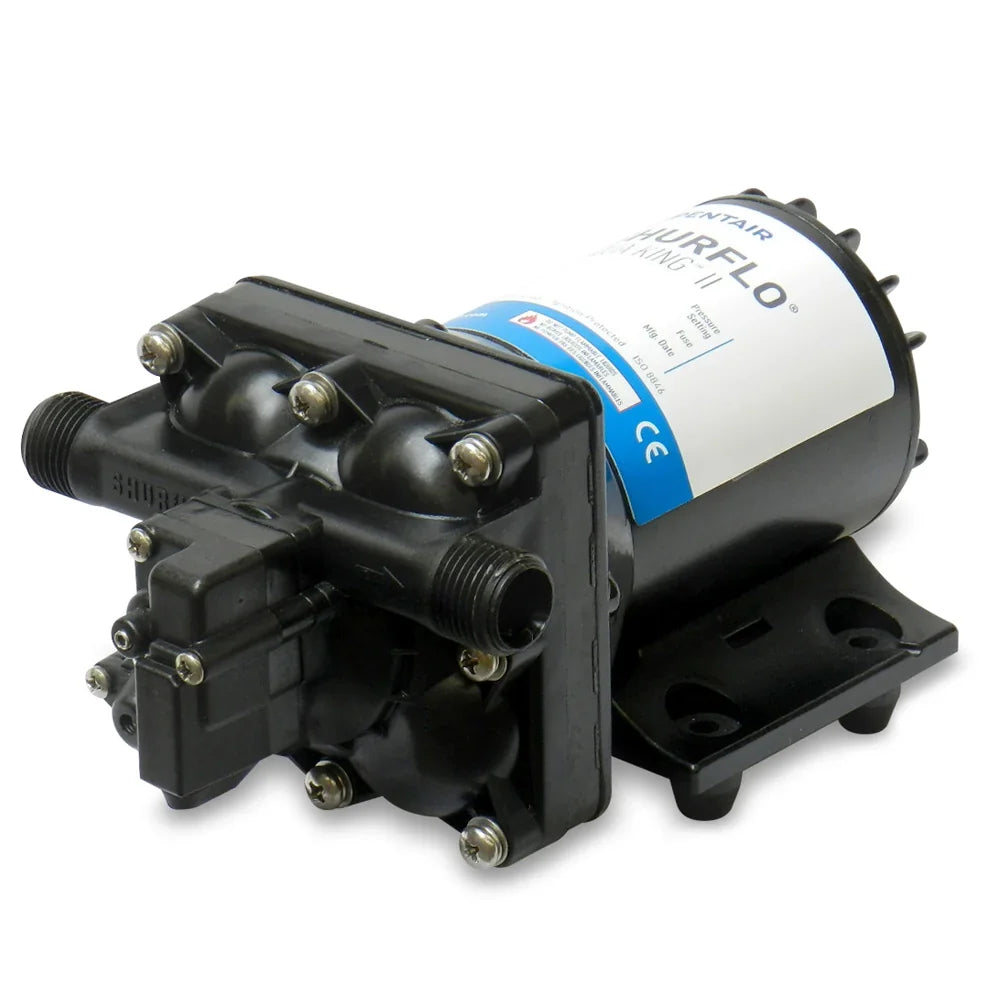

Shurflo Aqua King 11 Junior 12V Fresh Water Pump

PUMP DESIGN:

• Type: 4 Chamber Diaphragm pump
• Check Valve: (1-way operation) Prevents Reverse Flow
• Ports: ½”-14 NPSM-Male
• Liquid: 130°F [54°C] Max
• Dry-Prime: 6 feet [1.82 M]
• Run Dry: Yes
• Inlet Pressure: 30 PSI Max. [2.06 Bar]

ELECTRICAL:

• Motor: 12V DC Permanent Magnet, Intermittent Duty
• Protection: Thermal Overload, Automatic Restart
• Leads: 14 AWG, 14 ¾” [37 cm] Red +, 15” [38 cm] Black
• Fuse: 5 Amp Recommended
• Control: Shut-Off 30 PSI [2.0 Bar] ± 2 PSI [0.13 Bar]
• Re-start 15 PSI [1.0 Bar] ± 2 PSI [0.13 Bar]

MATERIALS OF CONSTRUCTION:

• Housings: Polypro
• Valves/Seals: EPDM
• Diaphragm: Santoprene
• Hardware: Stainless Steel

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
