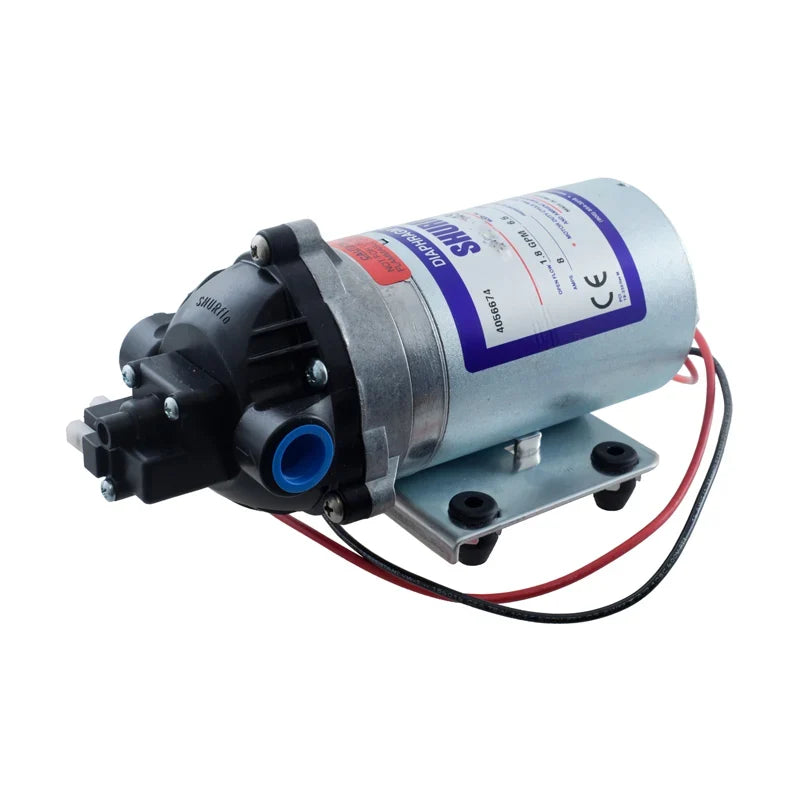

Shurflo 8030-813-239 12V High Pressure Demand Pump

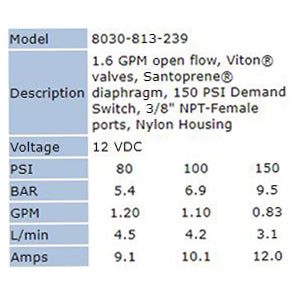

Technical Specifications

• Valve Material: Viton® valves.
• Diaphragm Material: Santoprene® diaphragm.
• Diaphragm Type: Solid.
• Motor Finish: Zinc.
• Control Type: Demand Switch.
• Port Size: 3/8" NPT Female Ports.
• Housing Material: Nylon housing.
• Voltage: 12 VDC.
• PSI: 80, 100, 150.
• BAR: 5.4, 6.9, 9.5.
• L/min: 4.5, 4.2, 3.1.
• Amps: 9.1, 10.9, 12.0.

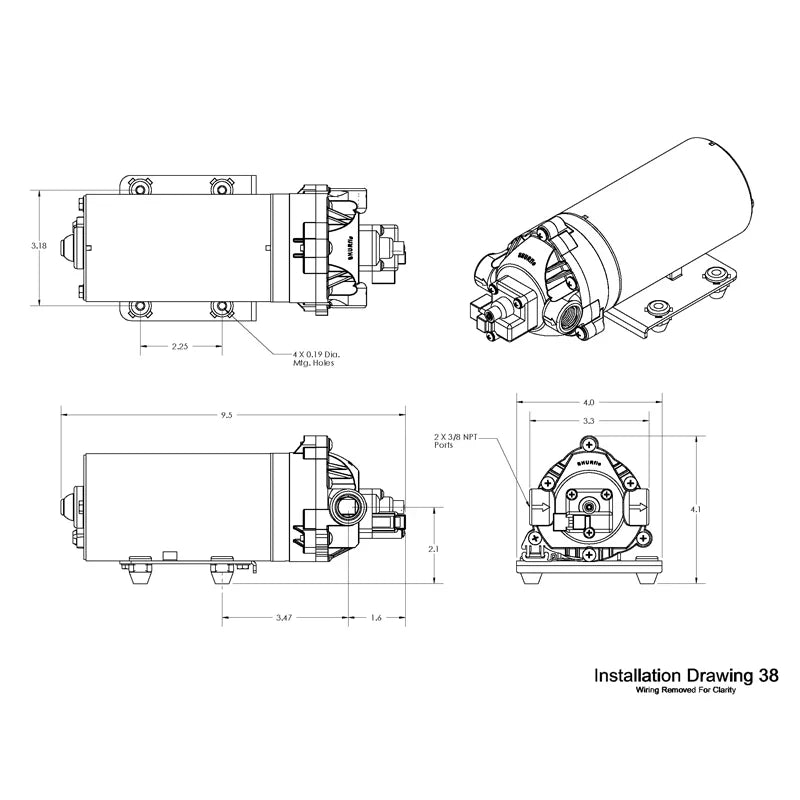

• Dimensions: 24.13cm x 10.41cm x 10.16cm.
• Motor Wiring: 16 AWG wires w/SW.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
