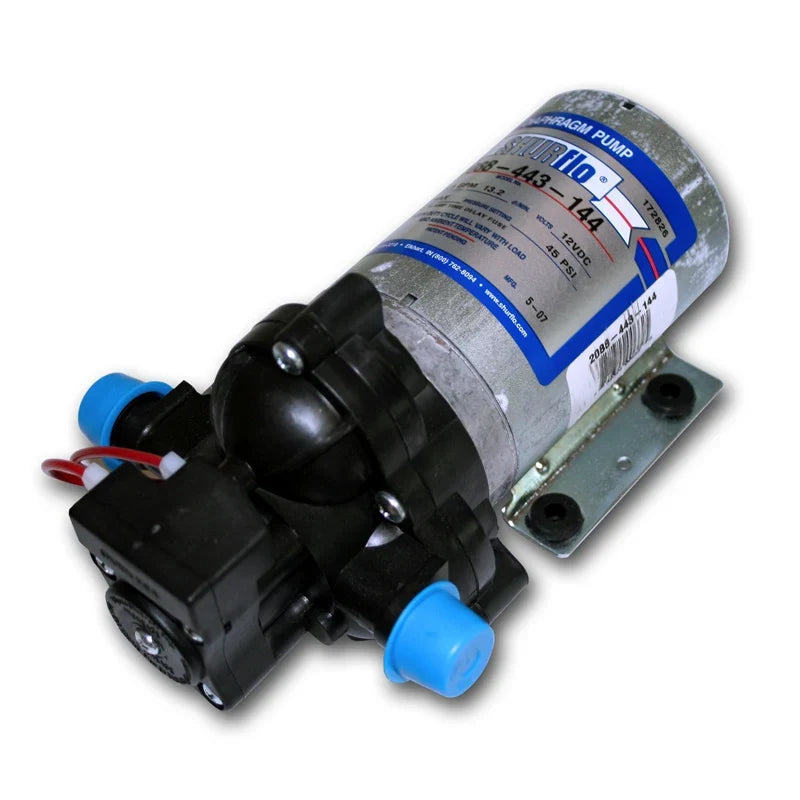

Shurflo 2088-443-144 12V Standard Demand Pump

Features

• Self-Priming up to 12 vertical lift feet (3.7m).
• Built-in check valve (may vary by models).
• Prevents back flow of fluid through the pumps.
• Continuous duty motor (fin cooled version only).
• Chemical resistant materials.
• Can run dry without damage.

Technical Specifications

• Voltage: 12VDC.
• Control Pressure: 45 PSI / ± 3.1 Bar.
• Open Flow: 3.5 GPM / ± 13 l/min.
• Control Type: Switch.
• Maximum Amps: 10.
• Port Size: 1/2"-14 NPSM.
• Housing Material: Polypropylene.
• Valve Material: Santoprene.
• Diaphragm Material: Santoprene.
• Cam: 3.
• Motor Finish: Zinc.
• Motor Wiring: 16 AWG wires w/SW.
• Wire Lengths: 12.5' / ± 320 mm.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
