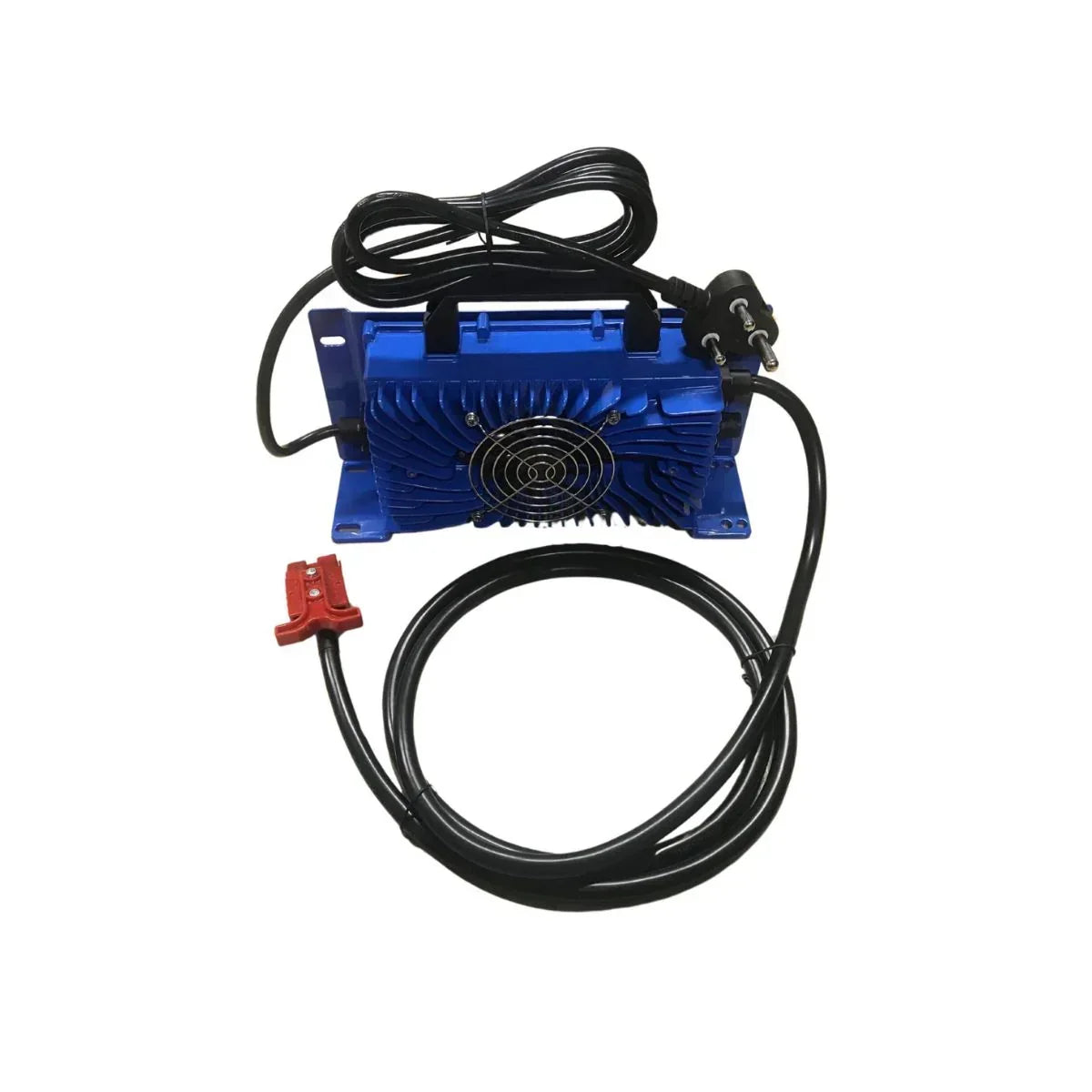

Our industrial battery charger is designed to last in even the most rugged and harsh operating environments.
Built to withstand shock and vibration, with a robust waterproof aluminium body, the charger is durable and built for reliability.
The charger can output up to 30A output, delivering a powerful and fast charging experience.
The unit cools itself with a IP68 rated fan, that turns on automatically as needed to cool the aluminium body.
The charger is built for our Red Pole Energy Lithium batteries, but is also compatible with a wide range of batteries, simply check the charging specifications of the battery you want to charge. The battery’s required bulk charging voltage should not be lower than the maximum output voltage of this charger.
Main Features
– Suitable for installation on vehicles
– Wide AC input voltage range (not sensitive to variations)
– Completely automatic battery charging: CC, CV and Floating
– Charger status LED : Red Flash (error), Red (charging), Yellow (almost full), Green (full)
– Charger waterproof rating: IP65 and Fan IP68
– Rugged aluminium body
– Input Connector: SA 3 point plug
– Output Connector: Red Anderson
Technical Specifications
– Input Voltage: 90 – 264 VAC
– Input Frequency: 50 Hz
– Input Current: < 5A
– Input Power Factor : ≥0.98 (Tested when the power is above half power)
– Efficiency: 93%
– No Load Power Consumption: <2W
– 3 Phase Charging: Pre-Charge, Constant Current, Constant Voltage
– Constant Voltage: 27.6 VDC (LiFePO4, 8s, Float Voltage)
– Output Connector: Red Anderson
– Output Power: 830 W Max
– Output Voltage: 27.6 VDC Max
– Output Current: 30 A Max
– Output Current Ripple: 500mAp-p Max
– Charger Waterproof Rating: IP65
– Fan Waterproof Rating: IP68
– Enclosure Material : Aluminium
– Dimensions: 158mm x 82mm x 289mm (WxHxL)
– Weight: 3.15kg
– Protection: Short Circuit, Over Voltage, Over-Temperature, Reverse Polarity
– Operating Temperature: -20 to 50 ºC
– Operating Humidity: Up to 100%
– MTBF: >100k hours
Standards
– Safety standards: EN60335, GB/T4706
– Withstand voltage: I/P-O/P: 2KVAC I/P-FG: 2KVAC O/P-FG: 2KVAC
– Isolation resistance: I/P-O/P, I/P-FG, O/P-FG: 100M ohms / 500VDC / 25ºC / 70%RH
– EMC emission: EN55022 Class A, GB/T 9254 Class A
– EMC immunity: EN 55024:2010, GB/T17618
– Vibration resistant: 10 ~ 500HZ, 2G 10 minutes/cycle, X, Y, Z axis each 60 minutes
