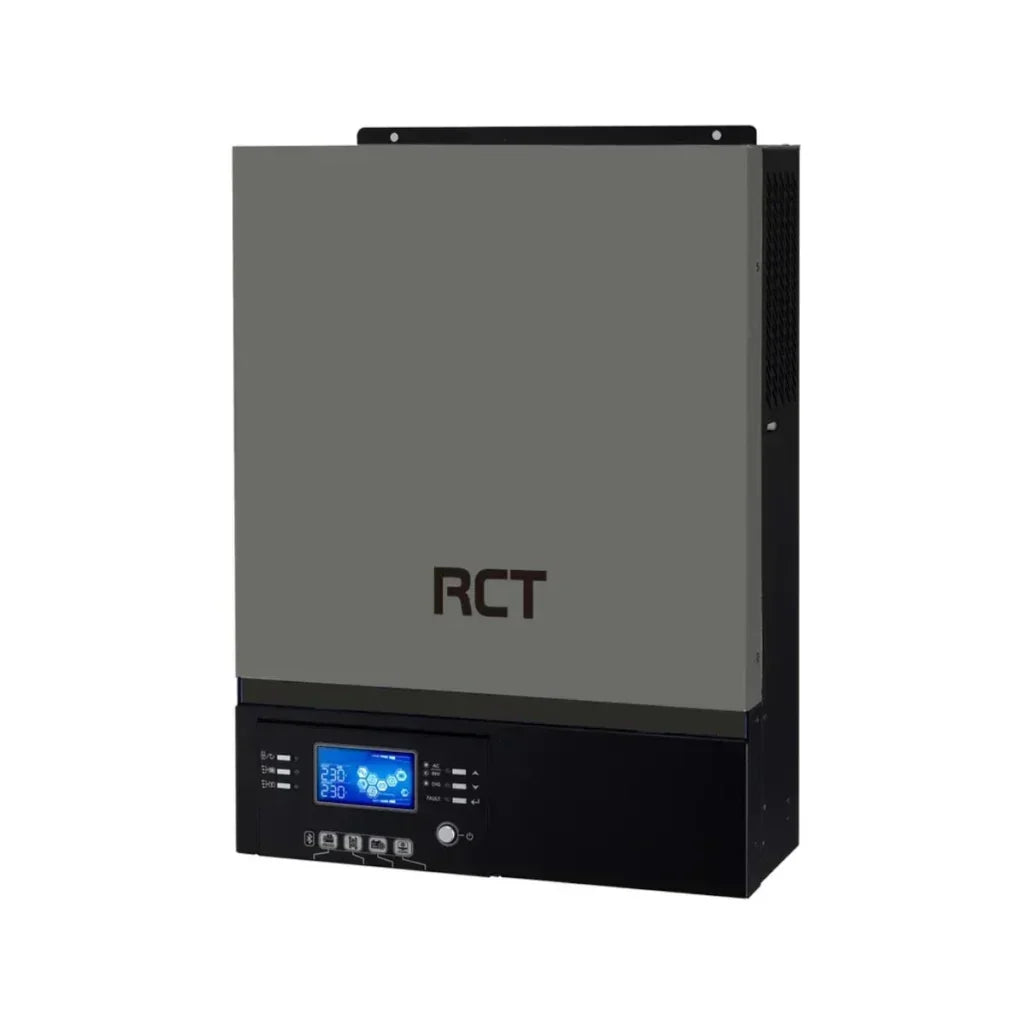

RCT Axpert VM3 3K24 3kVA 3kW 24V Hybrid Inverter

RCT Axpert VM3 3K24 3kVA 3kW 24V Hybrid Inverter

Regular price R 9,599.00

Wishlist Compare

Guarantee safe checkout

RCT Axpert VM3 3K24 3kVA 3kW 24V Hybrid Inverter

R 9,599.00

Features and Functions

Detachable LCD control module with multiple communications.
Built-in Bluetooth for mobile monitoring (Android App is available).
Supports USB On-the-Go function.
Reserved communication port for BMS.
(RS485, CAN-BUS or RS232).
Replaceable fan design for ease of maintenance.
Supply load from Grid or PV, even if battery is not available.
Configurable AC/PV output usage timer and prioritization.
Selectable high power charging current.
Selectable input voltage range for home appliances and personal computers.
Compatible to Utility Mains or generator input.
Auto restart while AC is recovering.
Cold start function.
24 Month Warranty.

Technical Specifications

Model: RCT-AXVM3-3K24V.
Rated Power: 3000VA/3000W.
Parallel Capability: No.

Input

Voltage: 230 VAC.
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

AC Voltage Regulation: 230 Vac ± 5%.
Surge Power: 6000VA for 5 sec.
Efficiency (Peak): 93 % at Line Mode, 90% at Battery Mode.
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
Waveform: Pure sine wave.

Battery

Battery Voltage: 24 Vdc.
Floating Charge Voltage: 27 Vdc.
Overcharge Protection: 34 Vdc.

Solar Charger & AC Charger

Solar Charger Type: MPPT.
Maximum PV Array Open Circuit Voltage: 400 Vdc.
Maximum PV Array Power: 4000 W.
MPP Range @ Operating Voltage: 120 ~ 380 Vdc.
Maximum Solar Charge Current: 60 A.
Maximum AC Charge Current: 40 A.
Maximum Charge Current: 60 A.

Physical

Dimension, D x W x H (mm): 115 x 300 x 400.
Net Weight (kgs): 10.
Communication Interface: USB/RS232/RS485/Bluetooth/Dry contact.

Included in box

Inverter x 1
User manual x 1
RS232 Communication cable x 1
Software CD x 1
DC Fuse x 1
