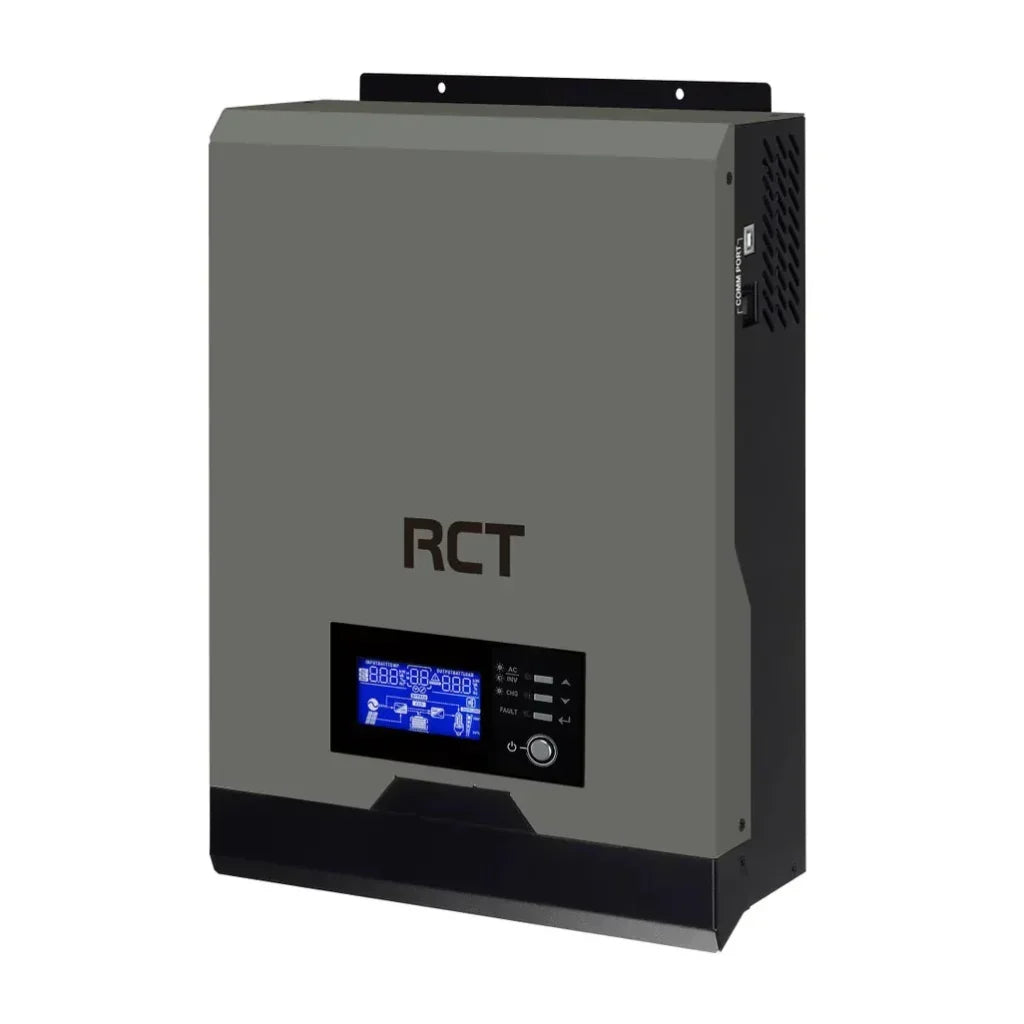

RCT Axpert VM 1K12 1kVA 1kW 12V Hybrid Inverter

RCT Axpert VM 1K12 1kVA 1kW 12V Hybrid Inverter

Regular price R 4,530.00

Wishlist Compare

Guarantee safe checkout

RCT Axpert VM 1K12 1kVA 1kW 12V Hybrid Inverter

R 4,530.00

Features:

Cold start function.
Pure sine wave inverter.
Auto restart while AC is recovering.
Built-in MPPT solar charge controller.
Overload and short circuit protection.
Compatible to mains voltage or generator power.
Selectable charging current based on applications.
Configurable AC/Solar input priority via LCD setting.
Smart battery charger design for optimized battery performance.
Selectable input voltage range for home appliances and personal computers.

Technical specifications:

Model: RCT-AXPERT 1K.
Rated Power: 1000VA/1000W.
Warranty: 24 months

Input

Voltage: 230VAC.
Selectable Voltage Range: 170-280VAC(For Personal Computers) 90-280VAC (For Home Appliances).
Frequency Range: 50Hz/60Hz(Auto sensing).

Output

AC Voltage Regulation: 230VAC ± 5%.
Surge Power: 2000VA.
Efficiency(Peak): 90%-93%.
Transfer Time: 10 ms (For Personal Computers) 20 ms (For Home Appliances).
Waveform: Pure sine wave.

Battery and AC Charger

Battery Voltage: 12VDC.
Floating Charge Voltage: 13.5VDC.
Overcharge Protection: 16VDC.

Solar Charger

Maximum PV Array Power: 500W.
MPPT Range @ Operating Voltage: 17VDC – 80VDC.
Maximum PV Array Open Circuit Voltage: 102VDC.
Maximum Solar Charge Current: 40A.
Maximum AC Charge Current: 25A.
Maximum Charge Current: 60A.

Physical

Dimesion: 88mm x 225mm x 320mm.
Weight: 4.4kg.

Operating Environment

Humidity: 5% to 95% Relative Humidity(Non-condensing).
Operating Temperature: -0°C – 55°C.
Storage Temperature: -15°C – 60°C.
