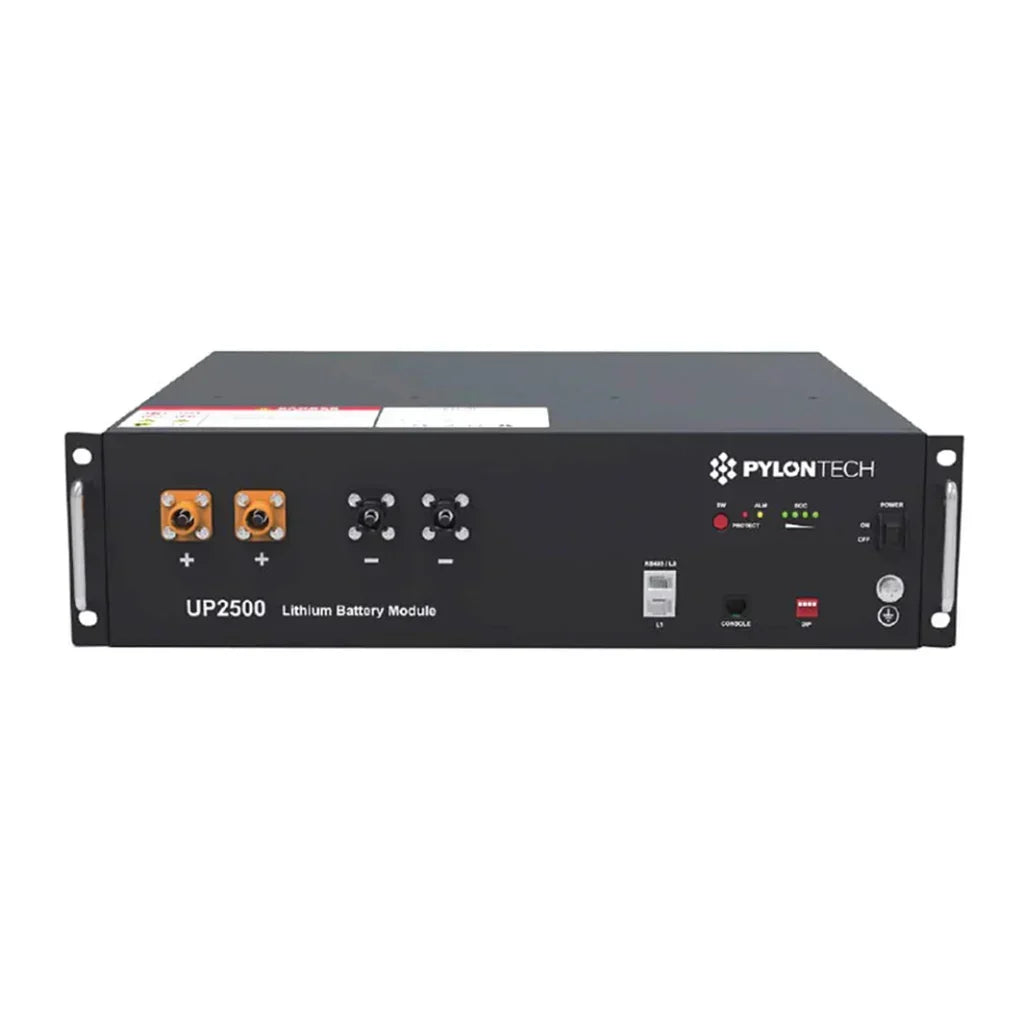

Pylontech UP2500 2.84kWh 24V Li-Ion Battery

Description

• Comes with CAN communication
• RS485 communication supports Voltronic 24V inverter
• CAN communication supports Victron 24V inverter
• Supports maximum 20pcs in parallel connection

Specifications:

• Models: U2500.
• Nominal Voltage (V): 25.6
• Usable Capacity (Wh): 2550
• Dimensions (WxHxD , mm): 442 x 420 x 119
• Weight: 27.5kg
• Discharge Voltage (V): 23~28.8
• Charge Voltage (V): 28.2~28.8
• Charge/Discharge Current (A) : 56(continuous)  / 111(Peak@15s)
• Communication Port: CANBUS/RS485
• Working Temperature (C): 0~50
• Shelf Temperature: -20~60
• Humidity: 5%-90%
• Altitude(m): <2000
• Design Life: 15+Years ((25ć @77 F)
• Cycle Life: >6000, @25C
• Authentication level: IEC62619/CE/RoHS/UN38.3
• Warranty: 5 years after installation
