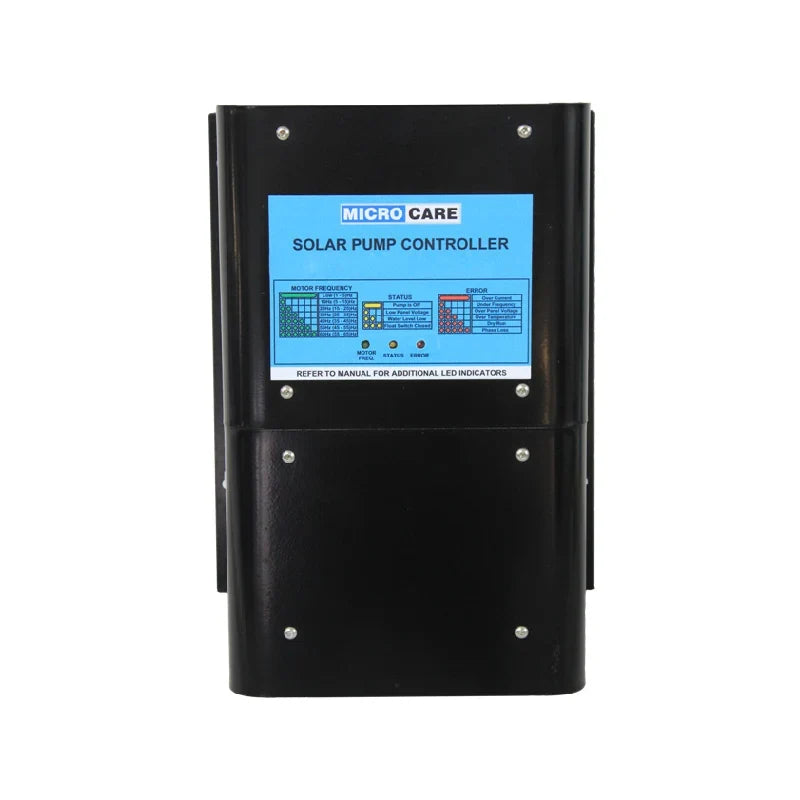

Microcare 3kW 230V Pump Controller with AC Input

Wishlist Compare

R 8,000.00

Features and benefits

AC Input to allow shared power usage & operation from the Grid or AC source.
PV Panel Input Voltage of 265-550 VDC.
Compatible with single & three-phase 220V motors that are VSD approved.
LED status feedback.
High - Low water input connectors.
Float switch input.
Trip and restart controls.
Built in Variable Speed Drive (VSD).
Surge Protection.
Unique overdrive feature allows lower PV Voltage operation than is currently available on the market.
IP44 rated.
No external enclosure box required.
Cost effective installation.
Available with comms port for Wi-Fi connection.

Technical Specifications

PV VOC Range: 365 — 550V.
PV VMP Range: 265 — 400V.
Recommended PV VMP (Max Efficiency): 310 VMP.
Rated Output Power Single-Phase: 1,5kW.
Rated Output Power Three-Phase: 3kW.
AC Input: 220V Single-Phase.
Frequency Range: 30 - 50Hz (Programmable).
Ambient Temp Range: -15 to 40ºC.
Protection: Overload, Short Circuit, Over Temperature, Under Voltage, Over Voltage, Surge Protection.
Dimensions (H x W x D): 285 x 240 x 120mm.
Warranty: 3 years.
