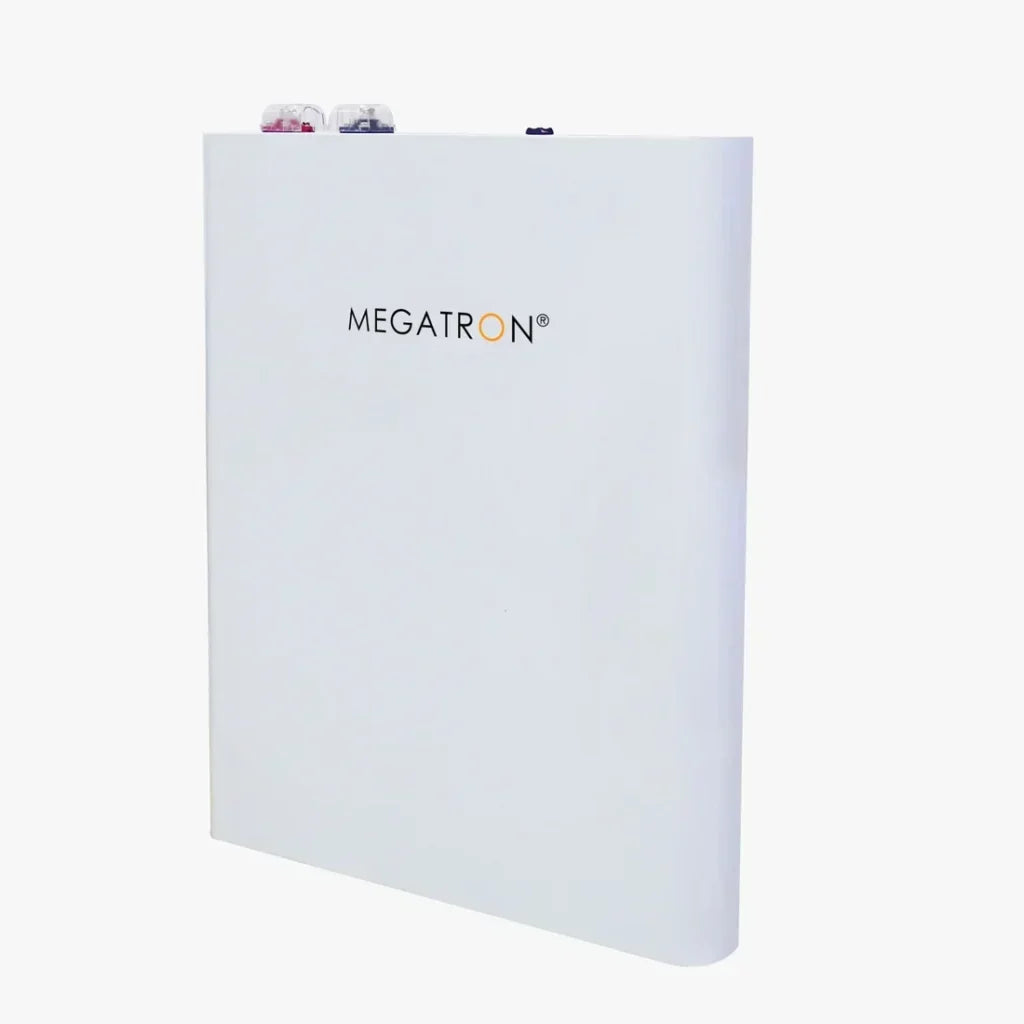

The MEGATRON® THS16 is a high-performance, floor-standing 51.2V Lithium Iron Phosphate (LiFePO4) battery module designed for premium energy storage systems. Combining an integrated Battery
Management System (BMS) for balanced protection with a robust 16.07kWh capacity, this unit is perfectly engineered to provide reliable backup power and seamless energy independence. It is an ideal, high-capacity solution for demanding residential properties, off-grid setups, and light commercial applications looking to optimize solar usage or secure a dependable safety net against load shedding.
Technical Specification
Model: THS16
Nominal Voltage: 314AH
Rated Capacity: 16.07kwh
Size: 440*265*890mm
Weight: 140kg
Maximum Operating Current: 150A
Design Life: ≥10 year
Charge Power: 8003W
Discharge Power: 8003W
Cycle Times: ≥6000 cycles @ 80% DOD, 25° C, 0.5C
Working Temperature: -20°C ~ 55 °C
Operating/Storage: ≤95%RH
Max Operating Altitude: ≤2000m
Cell Technology: LiFePO4, Lithium Iron Phosphate
IP Rating: IP20
Certification: UN38.3, MSDS
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
