Features:
- Pure sinewave MPPT solar inverter
- Customizable status LED ring with RGB lights
- Touchable button with 4.3″ colored LCD
- Wide DC input range
- Supports USB On-the-Go function
- Data log event stored in the inverter
- Built-in Wi-Fi for mobile monitoring (App is available)
- Reserved communication port for BMS
- Battery independent function
- Parallel up to 9 units
Technical Specifications
General

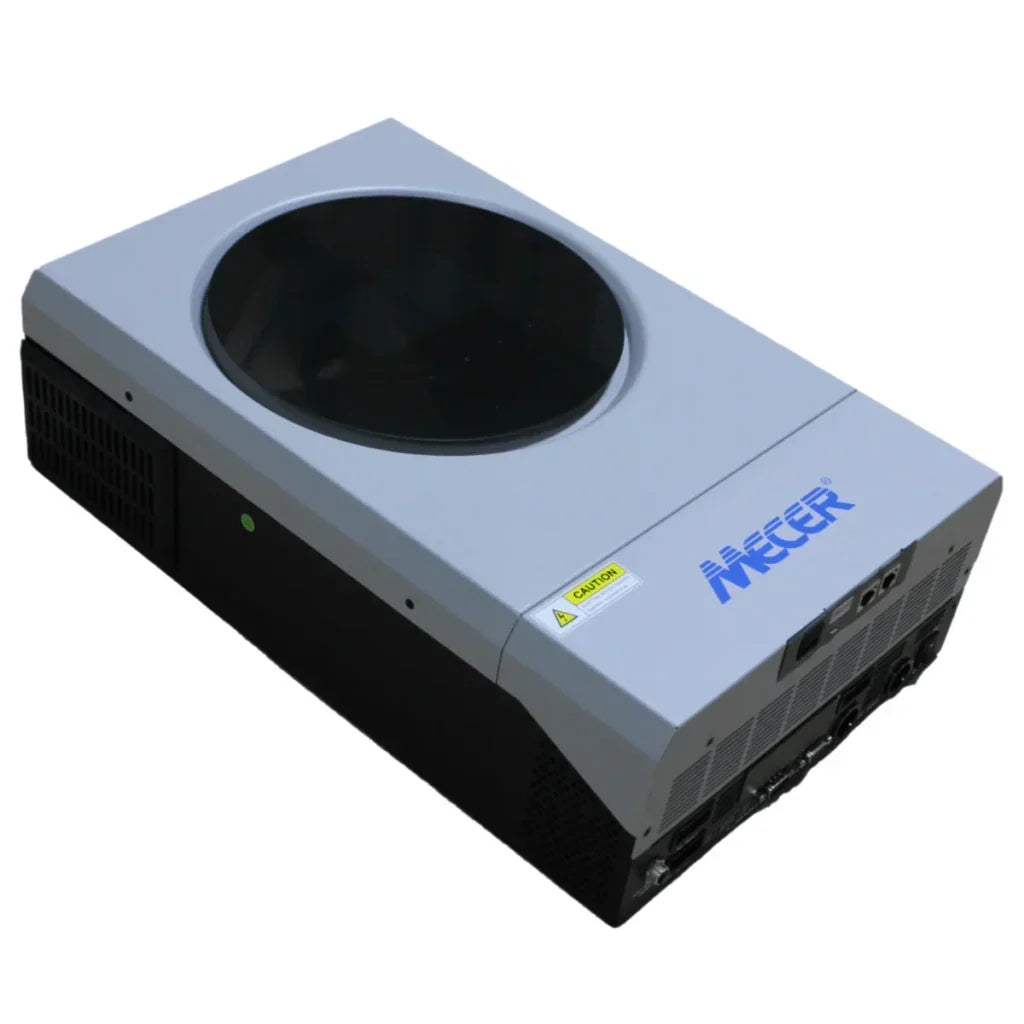

- Model: Axpert MKS IV 5600-485
- Rated Power: 5600 VA / 5600 W.
- Parallel Capability: up to 9 units.
Input
- Voltage: 230 VAC.
- Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
- Frequency Range: 55 Hz/60 Hz (Auto sensing).
Output
- AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
- Surge Power: 10000 VA.
- Efficiency (Peak): 93%.
- Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
- Waveform: Pure sine wave.
Battery & AC Charger
- Battery Voltage: 48 VDC.
- Floating Charge Voltage: 54 VDC.
- Overcharge Protection: 66 VDC.
Solar Charger & AC Charger
- Maximum PV Array Power: 6000W.
- Solar Charger Type: MPPT
- MPPT Range @ Operating Voltage: 120VDC ~430 VDC.
- Maximum PV Array Open Circuit Voltage: 450 VDC.
- Maximum Solar Charge Current: 120 A.
- Maximum AC Charge Current: 120 A.
Physical
- Dimension, D x W x H (mm): 140 x 295 x 468.
- Net Weight (kgs): 12
Operating Environment
- Humidity: 5% to 95% Relative Humidity(Non-condensing).
- Operating Temperature: 0°C to 50°C.
- Storage Temperature: -15°C to 60°C.
