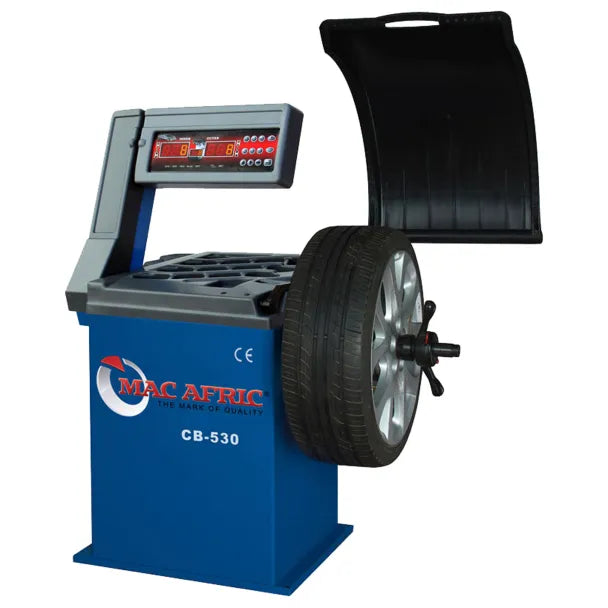

Designed to provide precise measurements and optimal balance for various wheel structures. With its OPT (Optimal Matching Function) balance function, it caters to the specialized needs of each wheel, ensuring the highest accuracy. It offers multi-balancing options and multiple positioning methods to accommodate a diverse range of wheels. The user-friendly self-calibration program and the ability to switch between ounces/grams and mm/inch offer added convenience.
Specifications Description
-
Advanced Balancing Technology: Ensures high precision with a balancing accuracy of 1 gram and balancing speed of 200 rpm.
-
Versatile Wheel Compatibility: Accommodates a wide range of rim diameters from 10" to 24" and rim widths from 1.5" to 20".
-
Quick Cycle Time: Delivers results in a fast 10-second cycle, increasing productivity.
-
Intuitive Display and Conversion: Offers clear unbalance value display and easy ounce/gram, mm/inch conversions.
-
User-Friendly Operation: The hood-actuated auto-start feature adds to the machine's convenience and ease of use.
-
Robust Design: Can handle a maximum wheel weight of 60 kg and has a sturdy build weighing 83 kg.
Technical Specifications
| Feature |
Specification |
| Max Wheel Weight |
60 kg |
| Max Power Consumption |
180–300 W |
| Power Supply |
Single phase, 220V |
| Balancing Accuracy |
1 g |
| Balancing Speed |
200 rpm |
| Rim Diameter Range |
10" to 24" (256 to 615 mm) |
| Rim Width Range |
1.5" to 20" (40 to 510 mm) |
| Cycle Time |
10 seconds |
| Net Weight |
83 kg |
| Sound Pressure Level |
<70 dB (A) |
| Operating Temperature Range |
0 to 50°C |
