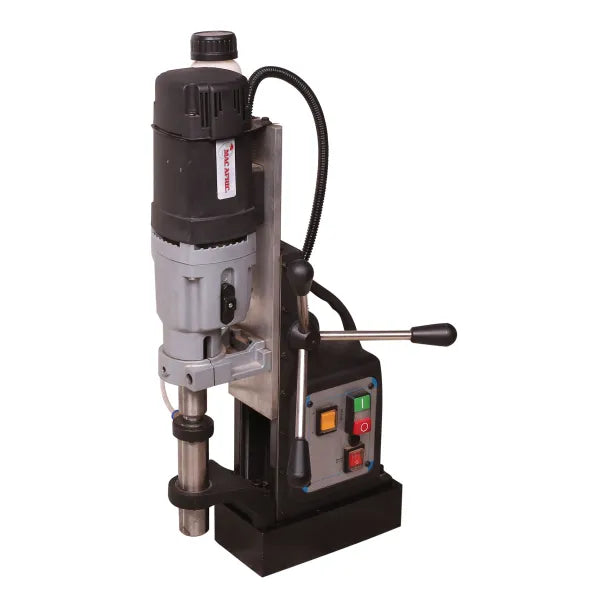

The MAC AFRIC portable Magnetic base drill features a high-performance motor with a robust sturdy design, quick-release chuck for increased productivity. Suitable for on-site hole cutting in steel plates such as H-Beams, framework, shipbuilding, bridge construction, steel reinforcements, and many other metalworking and construction jobs. Features 2 x drilling speed selection Quick-release chuck for broach cutters Compact design with heavy-duty magnet Drills up to 75mm diameter Sturdy feed handles Includes Quick-release chuck for broach cutters 13mm drill chuck & adaptor Coolant tank kit Safety chain Blow mold plastic case
Technical Specifications
| Feature |
Specification |
| Power Output |
1.8 kW (2.4 HP) |
| Voltage |
230 V @ 50 Hz |
| Max Cutting Depth |
75 mm |
| Max Twist Drill Size |
32 mm |
| No-Load Speed |
260 – 460 rpm |
| Speed Selection |
2-speed |
| Base Dimensions |
220 × 110 × 60 mm |
| Magnetic Force |
18,000 N |
| Spindle / Chuck |
MT3 spindle |
| Drill Chuck Supplied |
13 mm chuck and adaptor included |
| Coolant Tank |
Kit included |
| Package Dimensions |
48 × 20 × 68 cm |
| Package Weight |
31.25 kg |
Key Features
- Powerful 1.8 kW motor delivers reliable performance for heavy-duty drilling
- High magnetic force (18,000 N) ensures strong and stable positioning on metal surfaces
- 2-speed gearbox allows flexibility for different drilling applications
- Capable of drilling up to 75 mm cutting depth and 32 mm twist drill size
- MT3 spindle provides compatibility with a wide range of tooling
- Supplied with 13 mm chuck and adaptor for added convenience
- Integrated coolant system improves tool life and cutting efficiency
- Compact yet robust design for workshop and on-site use
