General

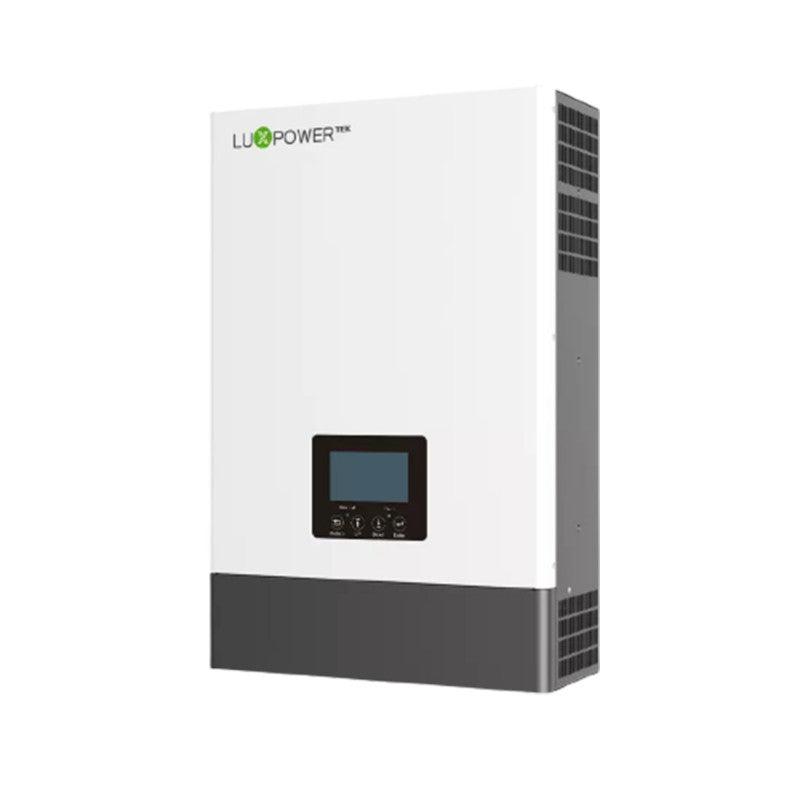

– Model: SNA 5000 WPV
– Battery voltage: 48VDC
– Wifi Remote Monitoring
– Flexible Working Modes with settable charge and load power supply priority
– Supports Solar and AC hybrid load
– Includes Wifi Dongle
Inverter Output
– Waveform: Pure Sine-Wave.
– Rated Power: 5000VA/5000W.
– Parallel Capability: Yes, 9 units.
– AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
-Surge Power: 10000VA.
– Efficiency (Peak): 93%.
– Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
Solar Charger
– Maximum PV Array Power: 6000W.
– 2 MPPT Controllers
– MPPT Range @ Operating Voltage: 100VDC ~385 VDC.
– Maximum PV Array Open Circuit Voltage: 480VDC.
– Maximum Efficiency: 98%.
-Maximum Solar Charge Current: 100A.
AC Charger
– Charge Current: 60A.
– AC Input Voltage: 230 VAC.
– Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
– Frequency Range: 50Hz/60Hz (Auto sensing)
Built in BMS (Battery management System)
– BMS Compatible with
– Pylon
– Dyness
– BYD
– Shoto
– Revov
– UZ Energy
