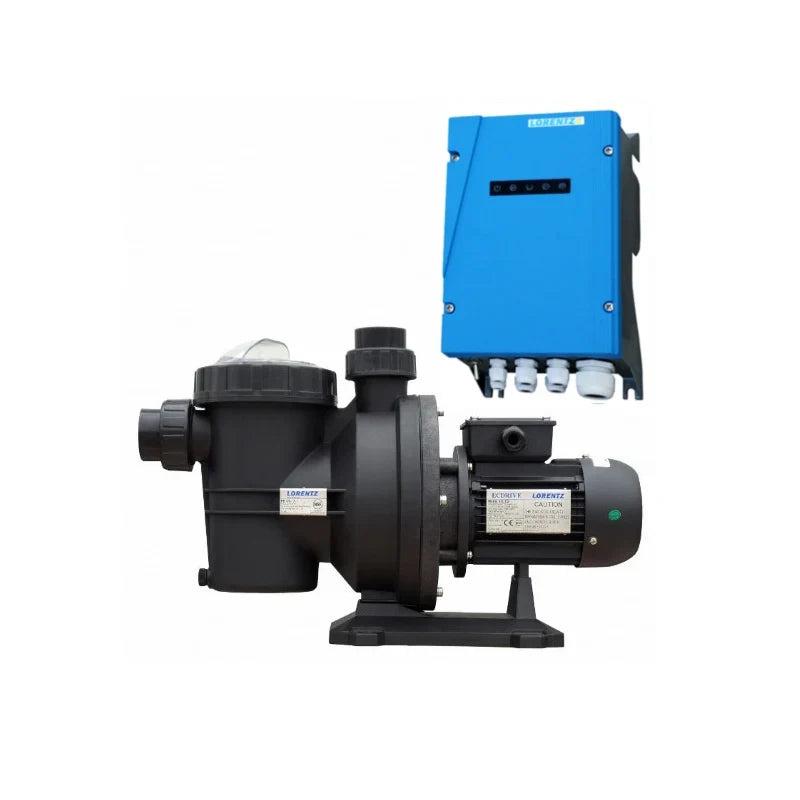

Lorentz PS2-1800 CS-37-1-D Solar Powered Pump

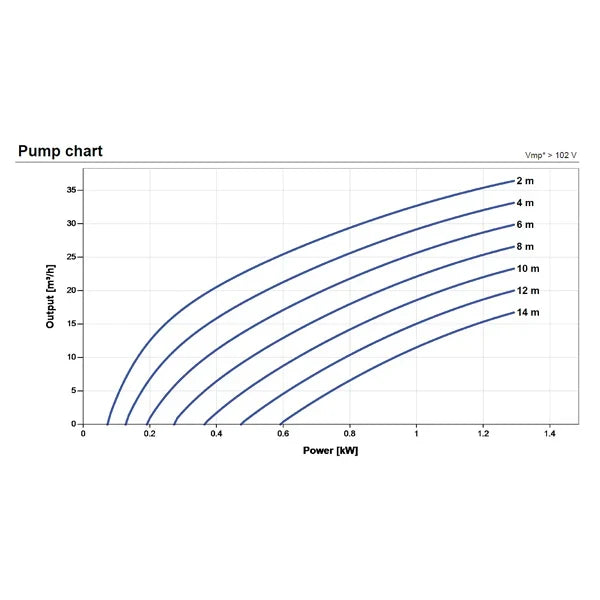

System Overview

• Head max.: 14 m.
• Flow rate max.: 36 m³/h.

Technical Data
Controller PS2-1800
Features

• Controlling and monitoring.
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature.
• Integrated MPPT (Maximum Power Point Tracking).
• Battery operation: Integrated low voltage disconnect.

Specifications

• Power max.: 1,8 kW.
• Input voltage max.: 200 V.
• Optimum Vmp**: > 108 V.
• Motor current max.: 14 A.
• Efficiency max.: 98 %.
• Ambient temp.: -40...50 °C.
• Enclosure class : IP68.

Motor ECDRIVE 180 CS-37
Features

• Maintenance-free brushless DC motor.
• Premium materials, stainless steel: AL/AISI 304.
• No electronics in the motor.

Specifications

• Rated power: 1,7 kW.
• Efficiency max.: 92 %.
• Motor speed: 900...3 300 rpm.
• Insulation class: F.
• Enclosure class: IPX4.

Pump End PE CS-17-1

• Non-return valve.
• Premium materials: PP.
• Centrifugal pump.
• Efficiency max. 57 %.

Pump Unit PU600 CS-17-17 (Motor, Pump End)

• Water temperature max.: 60 °C.
• Suction head / Positive inlet head max.: 3m.

Dimensions

• Controller HxWxD = 352 mm x 207 mm x 124 mm; Weight = 6.0Kg.
• Pump Unit HxWxD = 784 mm x 564 mm x 270 mm; Weight = 20Kg.
• Motor Weight = 9.7Kg.
• Pump End Weight = 11.0Kg.

**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature.
