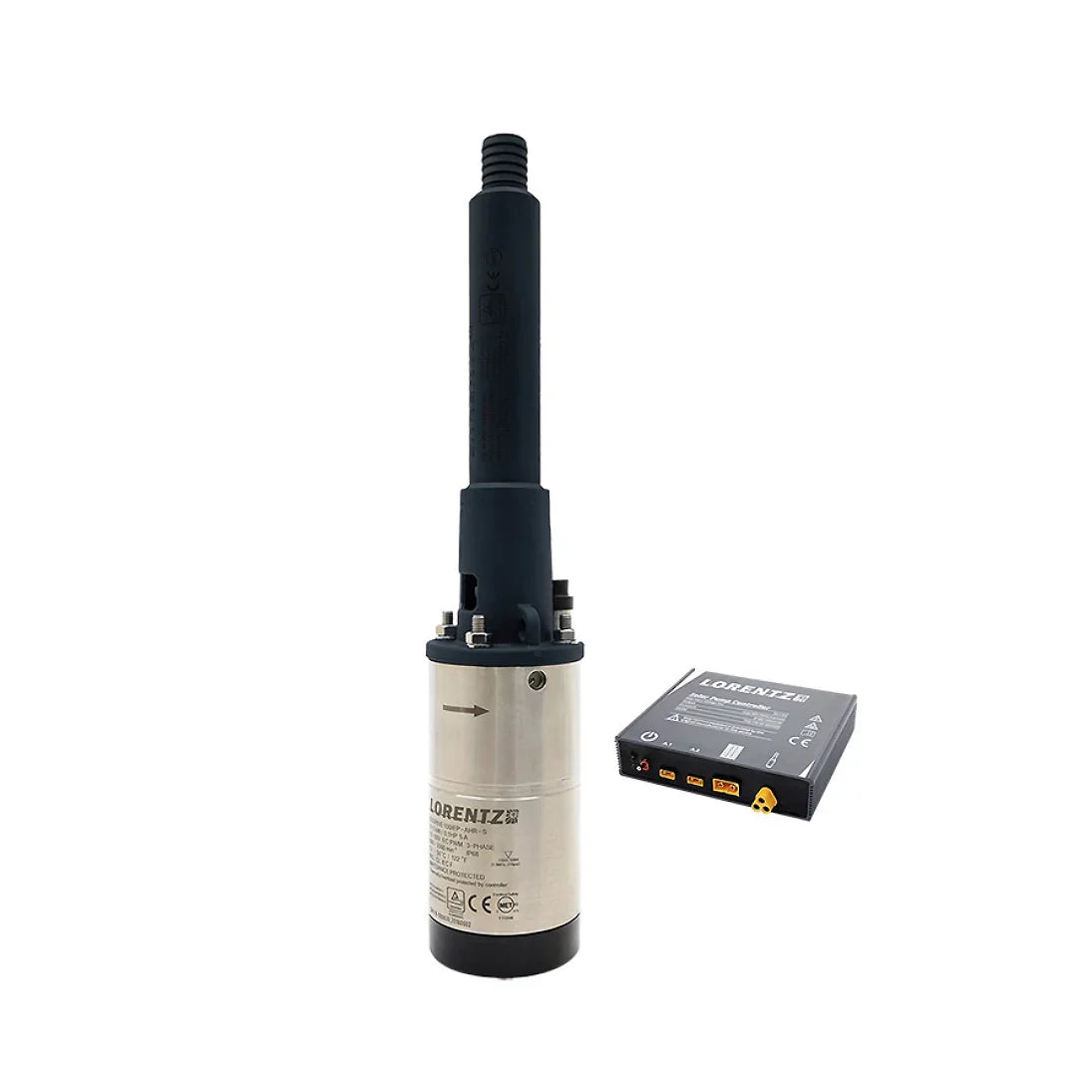

Solar Submersible Pump System kit for 3,5" wells

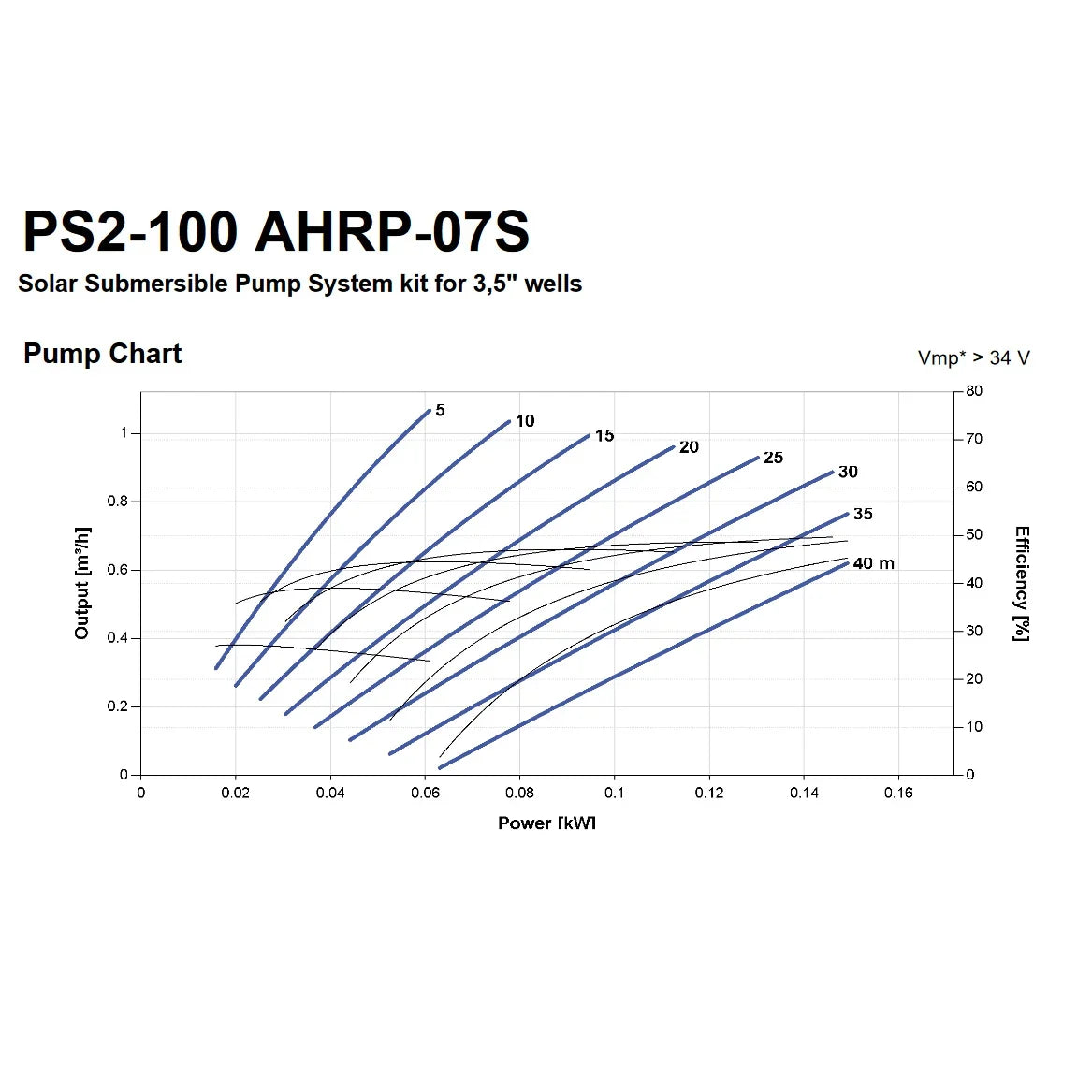

System OverviewHead max. 40 m
Flow rate max. 1.1 m³/h
Technical DataController PS2-100
- Controlling and monitoring
- Control inputs for dry running protection, remote control etc.
- Protected against reverse polarity, overload and overtemperature
- Integrated MPPT (Maximum Power Point Tracking)
- Incl. MC4 to XT-60 adaptor cable / 0,5m of 4mm² PV cable
Power max. 0.15 kW
Input voltage max. 50 V
Optimum Vmp** > 34 V
Motor current max. 6.0 A
Efficiency max. 98 %
Ambient temp. -40...50 °C
Enclosure class IP68
Motor ECDRIVE 100-AHR-S
- Incl. 15m of 3x 2, 5 mm² plugged motor cable
- Maintenance-free brushless DC motor
- Premium materials, stainless steel: AISI 304
- No electronics in the motor
Rated power 0.15 kW
Efficiency max. 83 %
Motor speed 700...2,500 rpm
Insulation class F
Enclosure class IP68
Submersion max. 50 m
Pump End PE AHRP-07S***
- Premium materials: PPS
- Helical rotor pump
Efficiency max. 61 %
Pump Unit PU100 AHRP-07S (Motor, Pump End)Borehole diameter min. 3,5 in
Water temperature max. 50 °C
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
***Specify temperature range on order.
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual
products depending on local market requirements and regulations.
