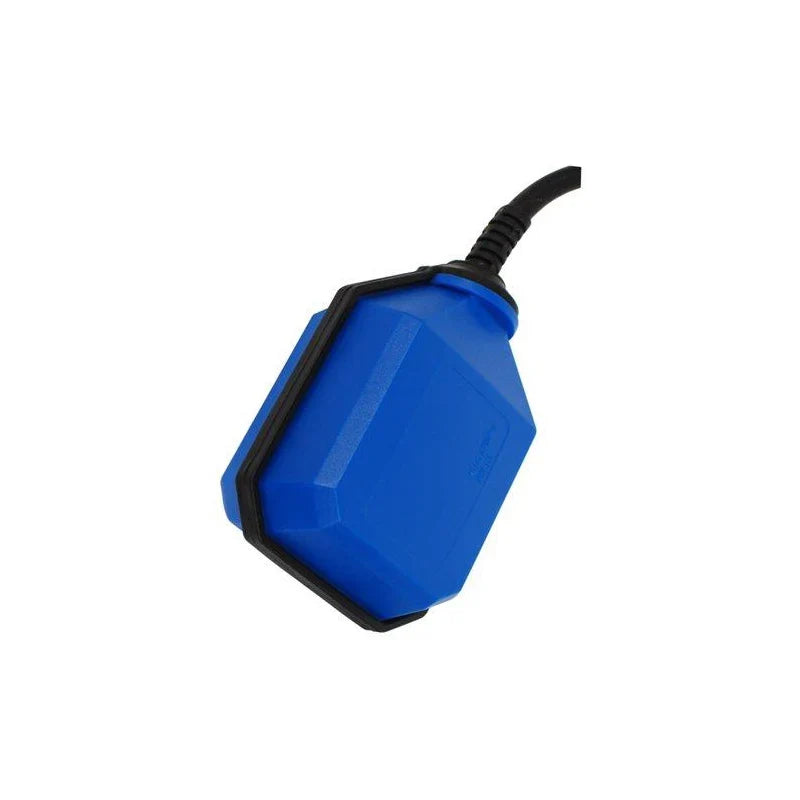

Lorentz Float Switch

Features

• N.O. (normally open) and N.C. (normally closed) function.
• Reliable water level detection.
• Simple to install.
• Trouble free operation.
• Not sensitive to rotation.
• Corrosion-free.

Technical Data

• Operating temperature: -10°C to 55°C.
• Storage temperature: : -10°C to 55°C.
• Enclosure class: IP68.
• Cable length: 3m, waterproof.
• Wire size: 3x 1.0mm² or AWG 18.
• Meets the requirements for CE.

Dimensions/Weight

• Packaging dimensions: 230 x 160 x 55 mm.
• Total weight: 0.8 kg.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
