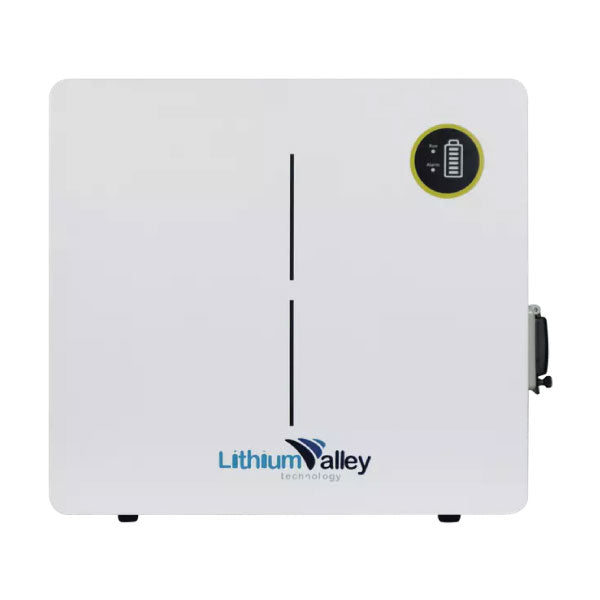

Lithium Valley 5.12kWh Wall Mounted Battery. 51.2V, 100AH

Wishlist Compare

R 18,499.00

Lithium Valley 5kW 100Ah LiFePo4 Wall Mounted Lithium Ion Battery – LV-BAT-W5.12AC
Model LV-BAT-W5.12AC
Includes Power Cable Kit
Wall Mounted LiFePo4 Battery.
Unique Design – Wall Mount Design.
Flexible Capacity – Max 15pcs in Parallel to Extend Capacity.
Safe & Reliable – Lithium Iron Phosphate (LFP) Cell.
LED Display – SOC, Battery Status.
Easy Installation – Quick Plug in +/- & Parallel Connection.
Nominal Voltage: 51.2V
Rated Capacity: 100Ah
Energy: 5120Wh
Battery Impedance: ≤ 50 mΩ
Charging Cut-off Voltage: 56.16V
Discharge Cut-off Voltage: 45.6V
Recommend Charge Current: 0.5C 50A
Maximum Charge Current: 0°C to 15°C: 50A; 15°C to 45°C: 100A
Maximum Continue Discharge Current: 100A, -20°C to 60°C; 65±20%RH
Operating Temperature Range: -20°C to 60°C
Storage Environment (50% State of charge): 20°C to 45°C in 3 months; 25±3°C over 3 months; Humidity at 65±20%RH
Environment: Indoor
Installation Type: Wall Mount
Cell Technology: Lithium-iron Phosphate (LiFePo4)
Life Cycle: 6000 times @ 80%DOD
Cooling: Natural Connection.
Protection Rating: IP54
Communication: RS232/CAN/RS485
Certifications: CB 62619:2017, UN38.3, MSDS CE EMC EN61000-6-2/4
Weight (Net): 47.2Kg
Easy Commissioning
Dimensions (H x W x D): 520 x 470 x 141.5 mm
Refer To Brochure For Detailed Product Specifications.
Product might vary from depicted images.
10 Year Limited Product Warranty. T & C’s Apply
