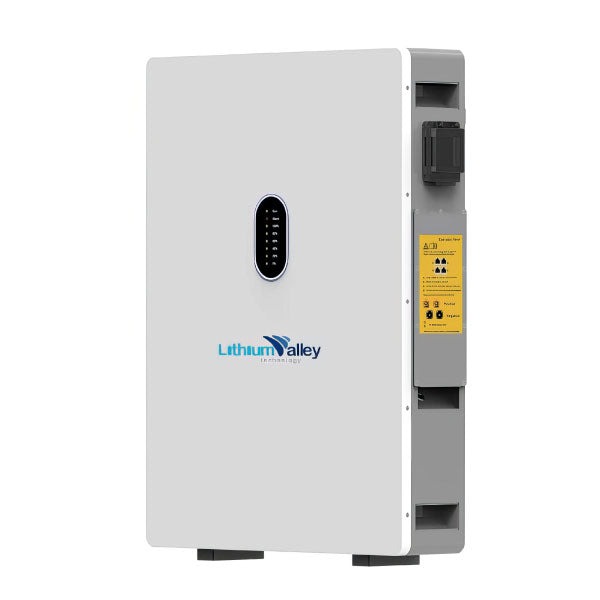

Introducing the Lithium Valley 10.24 kWh Battery: A Powerhouse of Efficiency and Reliability
Elevate your energy storage solutions with the Lithium Valley 10.24 kWh Battery, a true marvel in sustainable technology. Designed for those who demand the best in performance, efficiency, and longevity, this cutting-edge battery system is your key to a brighter, more sustainable future.
Powerful Performance: With a robust 10.24 kWh capacity, the Lithium Valley Battery offers an impressive reservoir of energy, ensuring your power needs are met day and night. Whether you’re looking to power your home, office, or electric vehicle, this battery delivers consistent and reliable performance.
Exceptional Efficiency: Built on the latest lithium-ion technology, using premium lithium cells and an excellent quality BMS this battery boasts exceptional efficiency levels. It not only captures surplus energy efficiently but also releases it with minimal loss, maximizing your energy savings and reducing your carbon footprint.
Seamless Integration: Experience a hassle-free transition to cleaner energy. The Lithium Valley Battery seamlessly integrates with your existing solar panels and various invertor brands, making it a convenient and cost-effective addition to your eco-friendly lifestyle.
Environmental Stewardship: Reduce your carbon footprint and contribute to a sustainable future. The Lithium Valley Battery is eco-friendly, helping you play your part in conserving our planet’s resources.
Join the revolution in energy storage and choose the Lithium Valley 5.12 kWh Battery to power your life with efficiency, reliability, and a commitment to a greener tomorrow. Experience the difference today, and embrace a brighter, more sustainable future.
We recommend: Use this battery with the Sunsynk 8kw, 12kw(3ph) or 16kw inverter for maximum efficiency. Monitor, optimize, and schedule your energy usage effortlessly through the Sunsynk user-friendly interfaces and mobile apps, ensuring your energy is always at your command.
Product Specification:
ELECTRICAL SPECIFICATIONS
-
Nominal Voltage – 51.2V
-
Nominal Capacity – 200Ah
-
Capacity @ 20A – 10Hours
-
Energy – 10240Wh
-
Resistance <20mΩ @ 50% SOC
-
Efficiency – 99%
-
Self Discharge <3% Per month
-
Maximum Modules in Series and Parallels – No series / 15Parallels
DISCHARGESPECIFICATIONS
-
Max Continuous Discharge Current – 100A
-
Peak Discharge Current – 200A<3S
-
BMS Discharge Current Cut off – 400A ±20A [90±10ms]
-
Recommend Low Voltage Disconnect – 42V
-
BMS Discharge Voltage Cut-off 40V [2.5±0.08vpc] [100±50ms]
-
Reconnect Voltage – 44V[2.8±0.1vpc]
-
Short Circuit Protection – 200-350s
MECHANICAL SPECIFICATIONS
-
Dimensions – [L*W*H]850*500*165mm
-
Weight – 92kg
-
Terminal Type – M8 screw
-
Case Material – Metal
-
Enclosure Protection – IP42
-
Cell Type – Prismatic
-
Chemistry – LiFePo4
-
Configuration – 16S2P
CHARGE SPECIFICATIONS
-
Recommended Charge Current – 20A-40A
-
Maximum Charge Current – 100A
-
Recommend Charge Voltage – 56.8V-58.4V
-
BMS Charge Voltage Cut-off – 58.4V[3.65±0.1V]
-
Reconnect Voltage – 55.2V[3.45±0.1V]
FEATURES & PERFORMANCE
- 6000+ Life Cycles
- Increased Safety Performance
- Wide Operating Temperature Range
- High Temperature Performance
- Green Energy Without Contaminants
- Pressure Resistant Cells
- High Capacity System
- Steady Output Voltage
- <3% Yearly Discharge Storage
- Triple Safety Protection
- Vibration & Shock Resistant
- No Memory Effect
SAFETY PROTECTION
- Over Charging
- Over Discharging
- Short Circuit
- Penetration
- Thermal Shock
- No Fires
- No Explosions
WARNINGS
- Never Connect The Positive And The Negative Of The Battery With Metal
- Never Ship Or Store The Battery With Metal
- Never Cut Or Puncture The Battery
- Do Not Expose The Battery To Water
- Do Not Expose The Battery To Fire & High Temperature
STORAGE & NON USE
- Store In A Dry Place With Temperature Not Exceeding 85°F Or 30°C
- For Long Term Storage Keep Battery Charged 30%-50% Of Capacity
- Do Not Store Battery With Metal
- Do Not Expose The Battery To Water
- Use Terminal Post Covers To Prevent Any Short Circut Circumstances
WARRANTY TERMS
The Lifepo4 Battery Company (Manufacturer) Has A 5 Year Factory Backed Warranty That Covers
Manufacturer Defects. Within The Warranty Timeframe, The Lifepo4 Battery Company Will Repair Or Replace
The Battery” With A New Or Remanufactured Battery.
