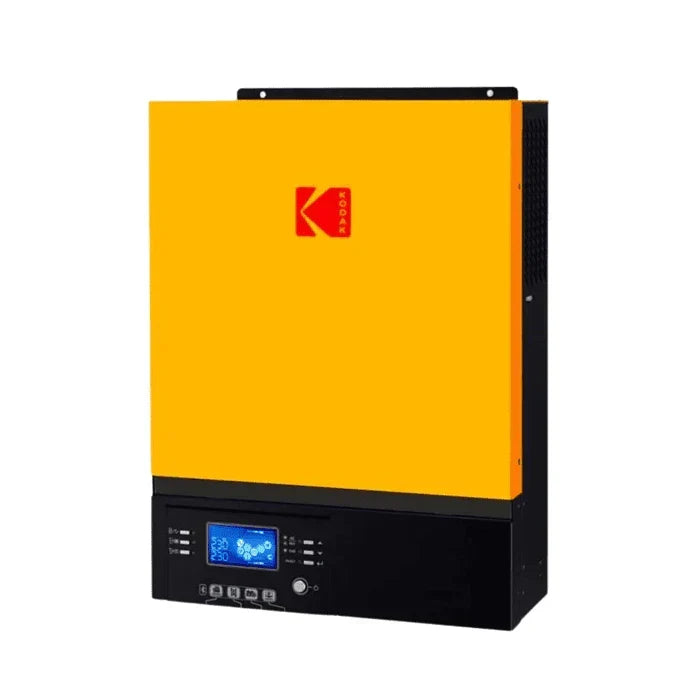

Kodak VMIII 3kW 24V Solar Off-Grid Inverter

Kodak VMIII 3kW 24V Solar Off-Grid Inverter

Regular price R 9,228.00

Wishlist Compare

Guarantee safe checkout

Kodak VMIII 3kW 24V Solar Off-Grid Inverter

R 9,228.00

Removable LCD control module with multiple communications servers and ATM.
Built-in Bluetooth for mobile monitoring (Android App is available).
Replaceable fan design for ease of maintenance.
Supply load from Grid or PV, even battery is not available.
Configurable AC/PV output usage timer and prioritization.
Selectable high-power charging current.
Selectable input voltage range for home appliances and personal computers.
Compatible to Utility Mains or generator input.
Auto restart while AC is recovering.
Cold start function.

Technical Data

Model: OG 3.24.
Rated Power: 3000VA/3000W.
Parallel: No

Input

Voltage: 230 VAC.
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

AC Voltage Regulation (Batt. Mode: 230VAC ± 5%.
Surge Power: 6000VA.
Efficiency (Peak): 93%.
Transfer Time: 15 ms (For Personal Computers); 20 ms (For Home Appliances).
Waveform: Pure sine wave.

Battery

Battery Voltage: 24 VDC.
Floating Charge Voltage: 27 VDC.
Overcharge Protection: 33 VDC.

Solar Charger & AC Charger

Solar Charger Type: MPPT.
Maximum PV Array Power: 4000 W.
MPP Range @ Operating Voltage: 120 VDC ~ 430 VDC.
Maximum PV Array Open Circuit Voltage: 500 VDC.
Maximum Solar Charge Current: 80 A.
Maximum AC Charge Current: 60 A.
Maximum Charge Current: 80 A.

Physical

Dimension, D x W x H (mm): 115 x 300 x 400.
Net Weight (kgs): 9.
Communication Interface: USB/RS232/RS485/Bluetooth/Dry contact.

Included in box

Inverter x 1
User manual x 1
RS232 Communication cable x 1
Software CD x 1
DC Fuse x 1
