The BL5.0 Kodak battery is a high performance, 4.94kWh, scalable battery module perfect for expanding systems. A single BL5.0 battery module allows up to 7500W of continuous discharge power. This means only one BL5.0 battery module is required for a 5-8kW inverter or only two required for a 15kW inverter.
- 1.5 C industry leading discharge C- rating allows single battery deployments for 7+kW inverter systems
- 4.94 kWhrs capable of 15 units in parallel totaling 74.1 kWhrs
- RS485 and CAN communication ensures full compatibility with KODAK and Sunsynk
- Industry leading 95% DOD allowing for more useable capacity from the battery
- 10 year standard warranty
- Cycle life depends on DoD set via inverter.
- 80% DoD @ 25°C = 6000+ cycles.
- Up to 95% DoD @ 25°C = 3600+ cycles.
- Weight:51 kg
- Battery Type: Lithium Ion
- Nominal Energy:4940 Wh
- Depth of discharge:95.00 %
- Voltage:48 V
- Continuous Discharge Rate (Normal Use):7500 W
- Maximum Discharge Rate (5 Minutes):7600 W
- Surge Discharge Rate (15 Seconds):8000 W
- Maximum Charge Rate (5 Minutes):2560 W
- Warranty:10 years warranty, > 6000 cycles life

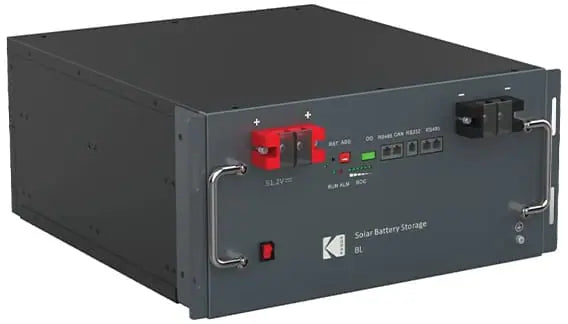

KODAK Solar Battery Storage BL5.0
- Discharge Current 150A (1.5C)
- Over voltage protection
- Under voltage protection
- Short-circuit protection
- High/low temperature charge protection
- High/low temperature discharge protection
- Charge/discharge over-current protection
- Dormancy function
- RS232/RS485/CAN communication
Basic Parameters
- Rated Power: 7500W
- Parallel Capability: Up to 15 units
- Rated Voltage: 51.2V/96.6Ah
- Nominal capacity: 4.945kWh
Physical
- Dimension, D x W x H (mm): 220.6 x 438 x 536
- Net Weight (kgs):50kg
- Communication Interface: RS232/RS485/CAN
Electrical Parameters
- Charge mode: CC/CV/CP
- Charging current: 50A（0.5C @25℃, recommended）
- Charging cut-off voltage: 58.4V(3650mV for cell)
- Discharge mode: CC/CP
- Discharging cut-off voltage: 40.0V(2500mV for cell)
- Discharge current: 150A (1.5C continuous)
Environment
- Humidity: 5% to 95% Relative Humidity (Non-condensing)
- Operating Temperature: Charge：0~+50℃/Discharge：-20~+60℃
- Storage Temperature: -20~+55℃（three months）/-20~+25℃（one year）
- Shipment Stat Voltage：52V~54V SOC：60%~80%
