Features
– Lithium pack designed to be easily wall-mounted or shelf installed in a standard rack.
– Parallel connection up to 15 packs with full communications
– +/- 3 000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD
Specifications

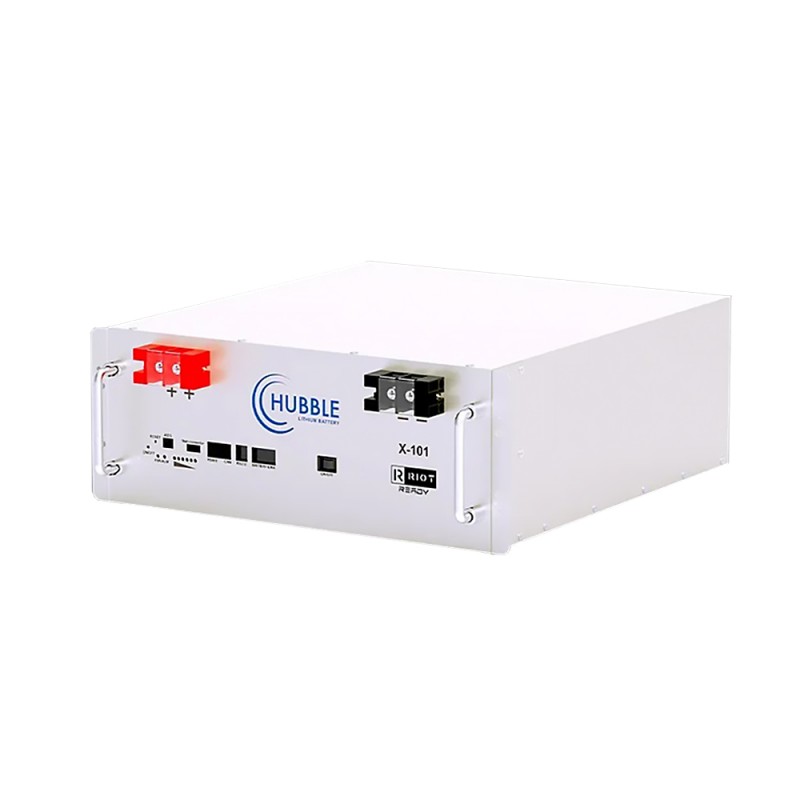

– Model Hubble: X-101
– Rated Capacity (5HR): 110 Ah
– Nominal Voltage: 51.0 V
– Discharge Ending Voltage: 42.0 V
– Equalized Charge Voltage: 53.6 V
– Max. Charging Current: 100 A
– Max. Continuous Discharging Current: 100 A
– Cell C Rating: 1.0 C
– Weight: Approx. 42 Kg
– Configuration: 4 U
– Parallel: Parallel connection up to 15 packs with full communication
– Dimensions: (W x D x H)mm 442mm x 495mm x 177.5mm
– Maximum DC Limits: 1x CAN-bus, 2x RS-485 Battery Link ports, 1x RS232
– Cells: New Li-ion Prismatic Cells
– Design Life: +/- 15 years
– Cycle Life @ 1C: +/- 3 000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD
– Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
– Outer Package Material: White bake lacquer steel case
– Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
– Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection
– Warranty – 10 Years / 3000 Cycles
