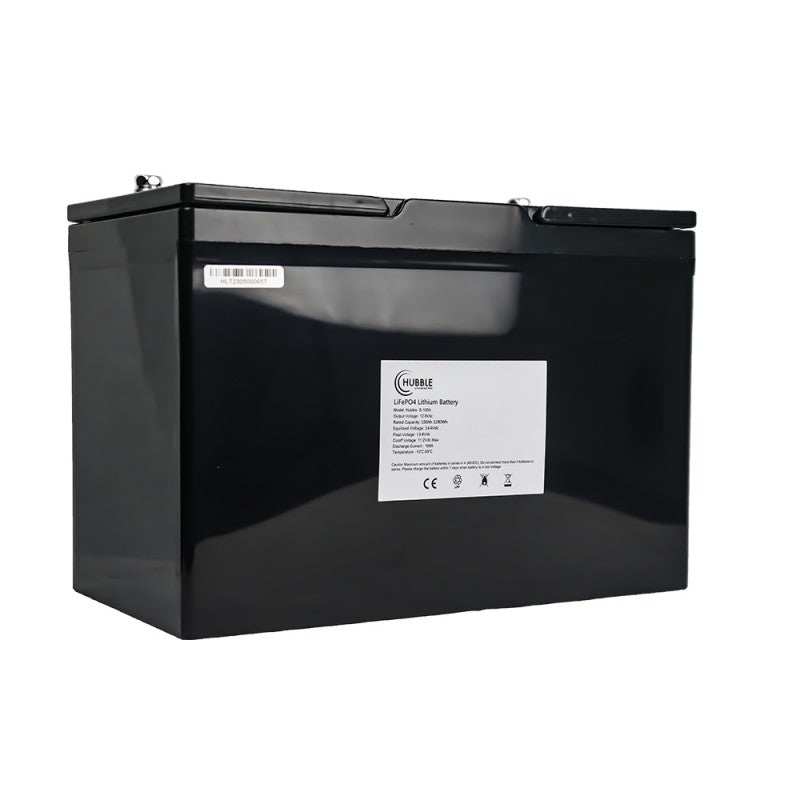

The S-100A has a 2 year / 3500 cycle warranty.
The S-100A has a integrated BMS inside the battery container, which also contain the prismatic lithium cells.
The S-100A can be connected up to 4 times in series maximum. You can configure the batteries in 12V, 24V, 36V or 48V in series.
You can run a maximum of 4 x S-100 units in series (48VDC) and 4 strings in parallel for a total of 16 batteries in one battery bank. Ensure that current for charge and discharge is limited to 100A for the complete bank no matter how many batteries are used.
12.8V 1.2KWH
• High Cycle Life and Service Life – 3500cycles @ 80% DOD
• High Performance Lithium battery
• Internal Battery Management System
• Excellent high temperature performance
• High energy density and conversion efficiency
• Can be configured in 12V, 24V, 36V or 48V in series
• Easy drop in replacement for old lead acid battery installs
• BMS protects internal cells and ensures smooth operation
• Compatible with most UPS & Inverters using AGM/VRLA charge setting
• Built-in protection for over-charge, over-discharge & over-temperature
• External cell balancer required when placing in series to ensure balancing
• Perfect replacement Lithium solution for upgrading your lead acid installation
Technical Specs:
Rated Capacity (5HR): 100Ah
Nominal Voltage: 12.8 V
Max. Charging Current: 100A
Max. Continuous Discharging Current: 100A
Cell C Rating: 1.0C
Weight: Approx. 10.5kg
Configuration: 4 in series with 4 banks in parallel for maximum 16 batteries
Parallel: Parallel connection is up to 4 strings
Dimensions (W x D x H): 305mm x 170mm x 220 mm
Maximum DC Limits: Maximum 100 Amp Charge per bank & 100 Amp discharge per bank
Cells: 1st LiFe Prismatic LiFePO4
Design Life: +/- 15 years
Cycle Life @ 1C: +/- 3500 Cycles @ 80% DOD
Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material: Black Polypropylene Plastic
Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection
IP Rating: IP65
