Description

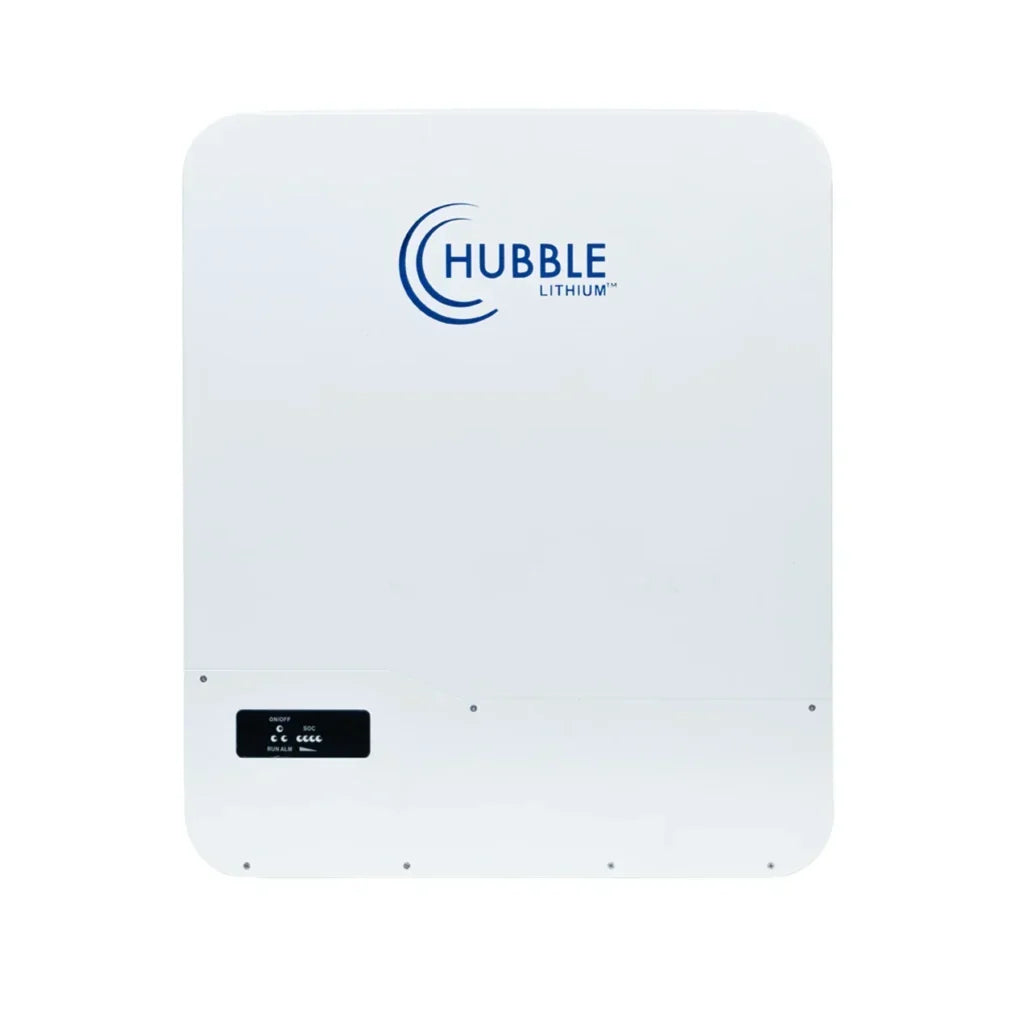

Hubble Lithium Battery Wall Mount 51.2V 5.12kWh 100Ah AM-5
Low self discharge
• High cycle and service Life
• 1C High performance lithium battery
• Easy wall mount or shelf rack installation
• Excellent high temperature performance
• Advanced BMS with current limiting function
• Compatible with most inverters and chargers
• High energy density and conversion effi ciency
• Complete with integrated Battery Management System
• Hubble Cloudlink integration ready for cloud monitoring
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
• CAN Bus, fully integrates and communicates with leading Inverter brands
Rated Capacity (5HR): 100Ah
Nominal Voltage: 51.2V
Design Capacity: 5.12KWH
Equalized Charge Voltage: 55.2V
Max. Continuous Charging Current: 100A
Max. Continuous Discharging Current: 100A
C Rating: 1C
Hubble Battery AM-5 Weight: Approx. 51kg
Monitoring: Cloudlink
Parallel: Parrallel connection up to 8 packs with full communications
Dimensions (WxDxH): 509.62mm x 173mm x 599.67mm
Ports: CAN-bus, Battery Link Ports
Cells: Prismatic LiFePO4
Design Life: ± 15 Years
Certification: CE IEC UN38.3
Outer Package Material: White Bake Lacquer Steel Case
Operating Temperature
Charging: -10°C to +50 °C
Humidity: 15% to 75%
Storage: 10°C to +50°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
