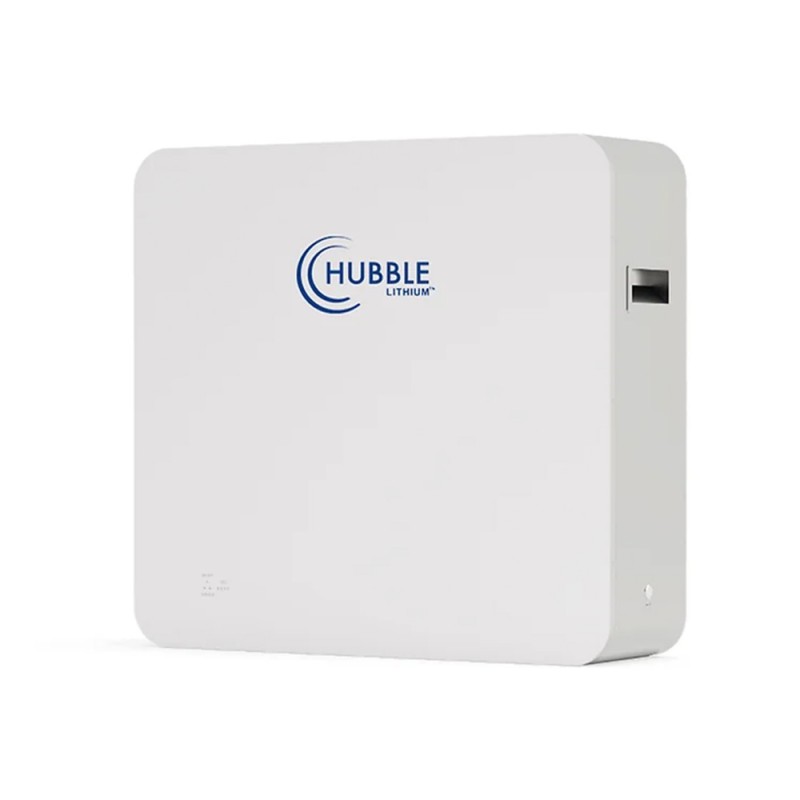

Hubble Lithium AM-10+ PLUS 10kWh 51.2V LifePO4 Battery – 10 Year UNLIMITED Cycles Warranty- with CLOUDLINK

Wishlist Compare

R 19,899.00

Features

Low self discharge
High cycle and service life
Easy wall mount or shelf rack installation
Excellent high temperature performance
1C High performance lithium battery
Advanced BMS with current limiting function Compatible with most inverters and chargers
High energy density and conversion efficiency
Complete with integrated Battery Management System Hubble Cloudlink integration ready for cloud monitoring Heavy duty side handles for easy handling and mounting on the wall
Built in protection for over-charge, over-discharge & over-temperature
CAN Bus fully integrates and communicates with leading Inverter brands

Technical Specifications

Model Hubble AM-10
Rated Capacity (5HR) 200 Ah
Nominal Voltage 51.2 V Design
Capacity 10 KWH Equalized Charge Voltage 55.2 V
Continuous Charging Current 200A Max.
Continuous Discharging Current 200A
C Rating 1 C
Weight Approx. 89 Kg
Monitoring Optional Cloudlink
Parallel Parallel connection up to 8 packs with full communications
Dimensions (WxDxH) mm 673mm x 618mm x 193mm
Ports CAN-bus, Battery Link Ports Cells Prismatic
LiFePO4 Design Life +/- 15 Years Cycle Life Unlimited
cycles within the Hubble Lithium 10 year warranty. Ts & Cs Apply.
Certification CE IEC UN38.3
Outer Package Material White bake lacquer steel case
Operating Temperature Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
