Intelligent Touch Screen
Easy Rackmount System Modules
Firmware updates over the internet
Cloudlink 24/7 monitoring included

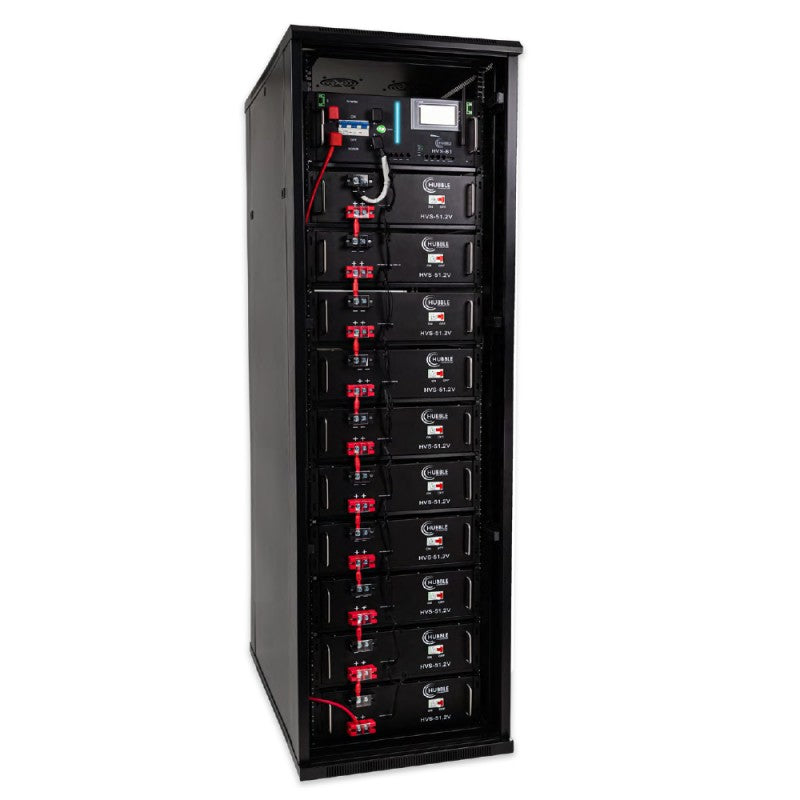

10 Packs of 16 Cell LiFePO4 battery system
Compatible with most High Voltage Inverters
Modular HV System for ease of transport and installation
CAN Bus comms fully integrate with leading inverter brands
Parallel up to 8 ESS Systems per string with full communications
Specifications
Model: Hubble HV-512
Rated Capacity (5HR): 100 Ah
Nominal Voltage: 512 V
Discharge Cutoff Voltage: 448 V
Equalized Charge Voltage: 557 V
Max. Continuous Charging Current: 100 A
Max. Continuous Discharging Current: 100 A
C Rating: 1C
Depth of Discharge: 100%
Weight: Approx. 600 kg without cabinet
Monitoring: Wi-fi enabled cloud monitoring
Parallel Connection: Up to 8 ESS systems with full communications
Dimensions (WxDxH) mm: Standard 47U Cabinet dimensions: 2200 (h) x 693 (w) x 1102 (d)
Ports: 1x CAN-bus, 2x Battery Link Ports
Cells: 16 Cells per pack. 160 Cells Total. New Li-ion Prismatic LiFePO4 cells
Design Life: +/- 15 Years
Cycle Life: Above 6000 cycles @ 80% DOD, +/- 4 000 Cycles @ 100% DOD
Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material: Black baked lacquer steel case
Operating Temperature: Charging: 0°C to +55°C | Discharging: 0°C to +55°C | Storage: 0°C to +55°C
Protection: Circuit Breaker per Pack, BMS Over/Under Voltage Protection, Current Limiting
