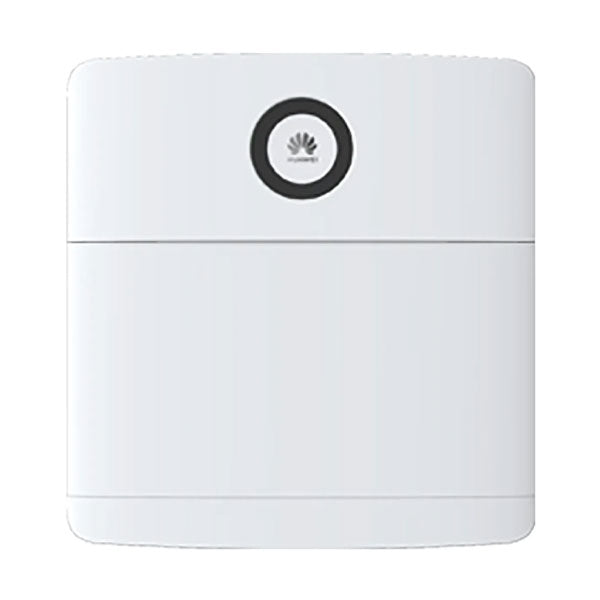

HUAWEI 5kW Intelligent Power Mate iSitePower-M Inverter with 1 x 5kW Battery Modules
Model IPM-5K-5Kwh
Perfect for Off the Grid Living.
Integrates Grid, Solar, Diesel Generator & Battery.
Mobile App Controlled.
Includes 1 x 5kW Power Module (Inverter) (ISP-M-MAP05A1) & 1 x 5kW Battery Module (Batteries) (ISP-M-MAB05B1)
Additional 5kW Battery Module’s Can Be Purchase Separately – Add Up to 3 x 5kW Battery Modules to a Maximum of 15kW.
Includes Only: HUAWEI 5kW Intelligent Power Mate iSitePower-M Inverter (IPM-5K-5Kwh)
5kW Inverter (Increase up to 15kW Battery Capacity with the 5kW Intelligent Power Mate Battery Module’s)
Required For Installation: HUAWEI Intelligent Power Mate ISitePower-M Inverter Base (MAP15A11) – Sold Separately.
Please Note: The Battery Module is a Half-C Battery and The Load Cannot Exceed 2.5kW
Provides a reliable & stable back-up power.
Energy Switchover within <10ms 2 Hour Fast Charge. Perfect for Apartment, Villa, Shop, Restaurant & Office Use. Waterproof & Dustproof: IP65 (Indoor & Outdoor Compatible) Stable Lithium Battery (LFP) Noise Level: 29dB(A) 3pcs Paralleled Support. Wide voltage jump resistance (220V-430V) High-voltage resistance (500V) Anti-Equipment Start-Up Flow shock – Air Conditioner, Washing Machine, Motor. AC Input (Single Phase): Max 30A PV Input: Max 5.5kW AC Output (Single Phase): 6kVA/5kW Power Capacity (Single): Supports up to 6pcs batteries – 5kW at max 30kWh Power Capacity (Parallel): Supports up to 3 power modules, each power module supports up to 3pcs batteries – 5kW at max 15kWh Weight: 17Kg (Each Power Module) & 50Kg (Energy Storage Module) Dimensions (W x H x D): 700 x 158 x 1471 mm (5kW at 15kWh) Refer To Brochure For Detailed Product Specifications. Product might vary from depicted images. Graphics are for illustrative purposes only. 10 Year Limited Product Warranty or 6000 Cycles. Recommended Solar Panel Configuration: Min 3 Panels – Max 10 Panels (Panel Size: 180W to 480W Panels) (5 Panels per String) Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
