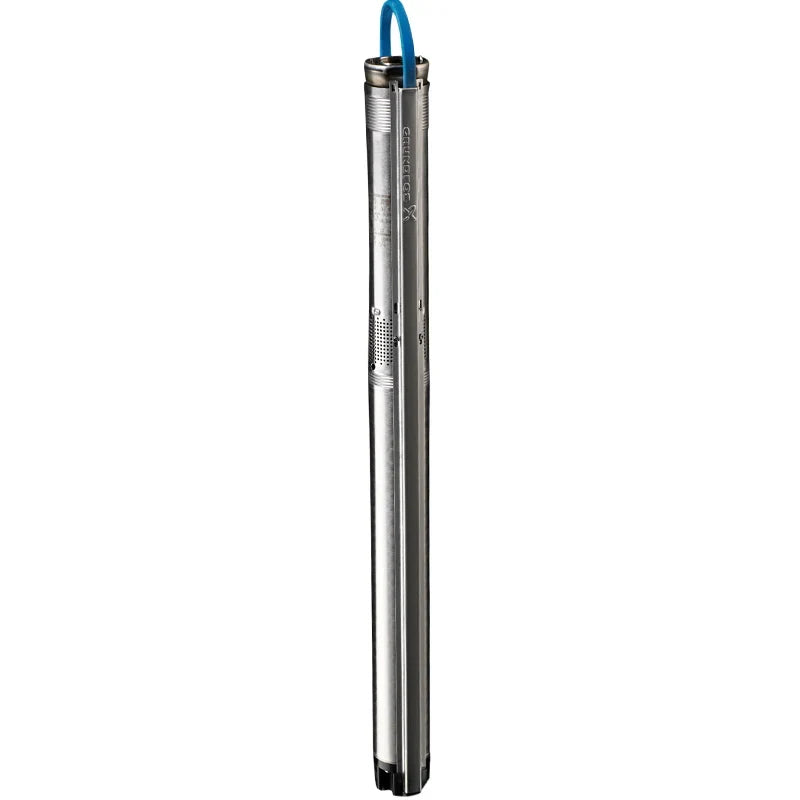

Grundfos SQF 5A-7N Submersible Pump

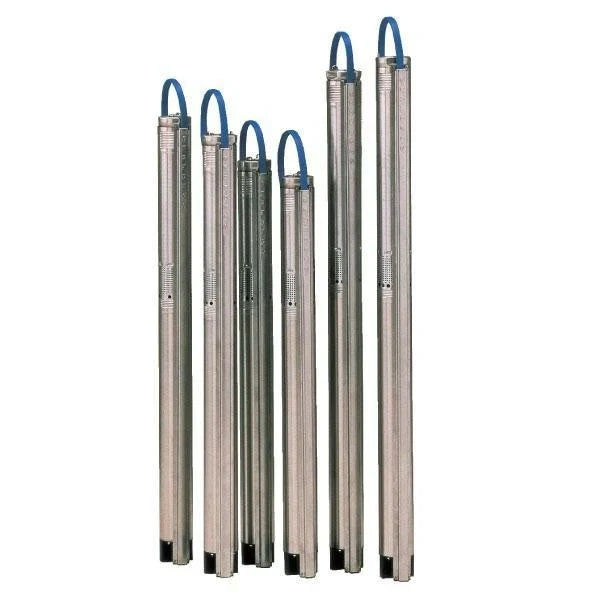

The Grundfos SQ 3" submersible pumps offer a wide performance range, making it easy to find a model that will suit your individual requirements.

The SQ is a compact, 3" multistage centrifugal pump that can be installed in a borehole no larger than the pump itself. With their built-in electronics, SQ pumps are very easy to install and operate. They guarantee a reliable water supply at all times. Equipped with permanent magnet motors, these flexible and compact pumps offer excellent efficiency levels and will supply pump heads up to 200 m.

If the SQ pump is connected to the Grundfos CU 301 control box, it enables the creation of a constant pressure water supply.

Applications

SQ/SQE pumps are suitable for both continuous and intermittent operation for a variety of applications:

    Ground water supply – private housing, small waterworks, small irrigation systems.
    Liquid transfer in tanks.
    Pressure boosting.
    Environmental applications – remedial pumping or sampling.
    Garages and petrol stations.

Features and benefits

    Dry-running protection
    Permanent magnet motor with high efficiency
    Wear resistance from floating impellers
    Protection against upthrust
    High flow velocity
    Soft-starts reduce wear on motor
    Over- and under-voltage protection
    Overload protection
    Over-temperature protection.

Additional features of the SQE

Variable motor speed controls (with connection to the CU 301).
Connection to the CU 301 for two-way communication.

Technical Specifications:

Power Supply: 30-300V DC
90-240V AC (50/60Hz)
Maximum power input: 1400W
Optimum current: 8.4A (can handle 10A)
Enclosure class: IP68
Diameter: 101mm
Max head: 70m
Max litres/h: 5000
316 stainless steel
Weight: 12.6 Kilograms
Warranty: 2 years

Please note that stock availability is subject to prior sales. Prices exclude delivery.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
