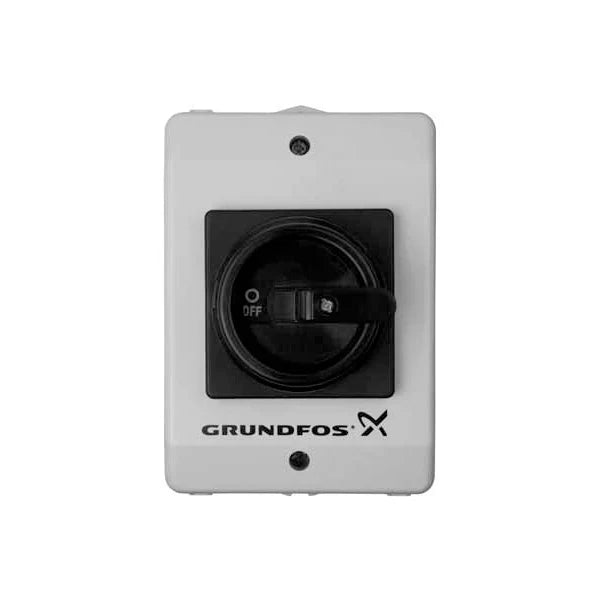

Grundfos IO 50 SQFlex Switch Box

Technical data

• System voltages: DC: Maximum 300 V, PE / AC: Maximum 254 V, 50/60 Hz, PE.
• Maximum current: 8.4 A.
• Ambient temperature: Tamb.: -30 °C to 50 °C.
• Enclosure class: IP55 or NEMA 3R.
• Dimensions: 100mm x 115m x 80mm.
• Weight: 700g.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
