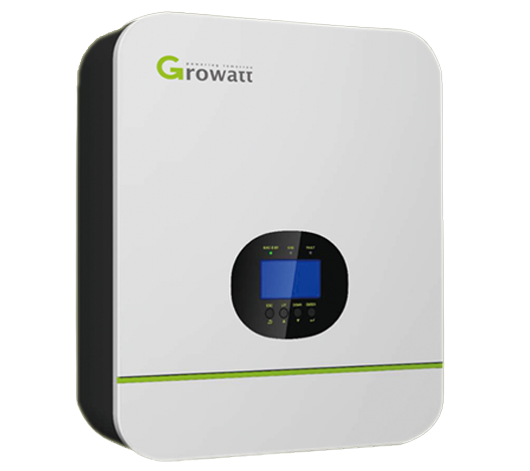

Growatt SPF 5000TL HVM-P 5kVA-5kW 48V Hybrid Inverter with WiFi

Growatt SPF 5000TL HVM-P 5kVA-5kW 48V Hybrid Inverter with WiFi

Regular price R 9,742.00

Wishlist Compare

Guarantee safe checkout

Growatt SPF 5000TL HVM-P 5kVA-5kW 48V Hybrid Inverter with WiFi

R 9,742.00

Specifications
General

Model: SPF 5000TL HVM-P.
Battery voltage: 48VDC.
Warranty: 2 years

Inverter Output

Waveform: Pure Sine-Wave.
Rated Power: 5000VA/5000W.
Parallel Capability: Yes, 6 units.
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
Surge Power: 10000VA.
Efficiency (Peak): 93%.
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).

Solar Charger

Maximum PV Array Power: 4500W.
MPPT Range @ Operating Voltage: 60VDC ~115VDC.
Standby Power Consumption: 2W.
Maximum PV Array Open Circuit Voltage: 145VDC.
Maximum Efficiency: 97%.
Maximum Solar Charge Current: 80A.

AC Charger

Charge Current: 60A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
Frequency Range: 50Hz/60Hz (Auto sensing).

Physical

Dimension (D/W/H) in mm: 130*350*455.
Net Weight (kgs): 14.5.
