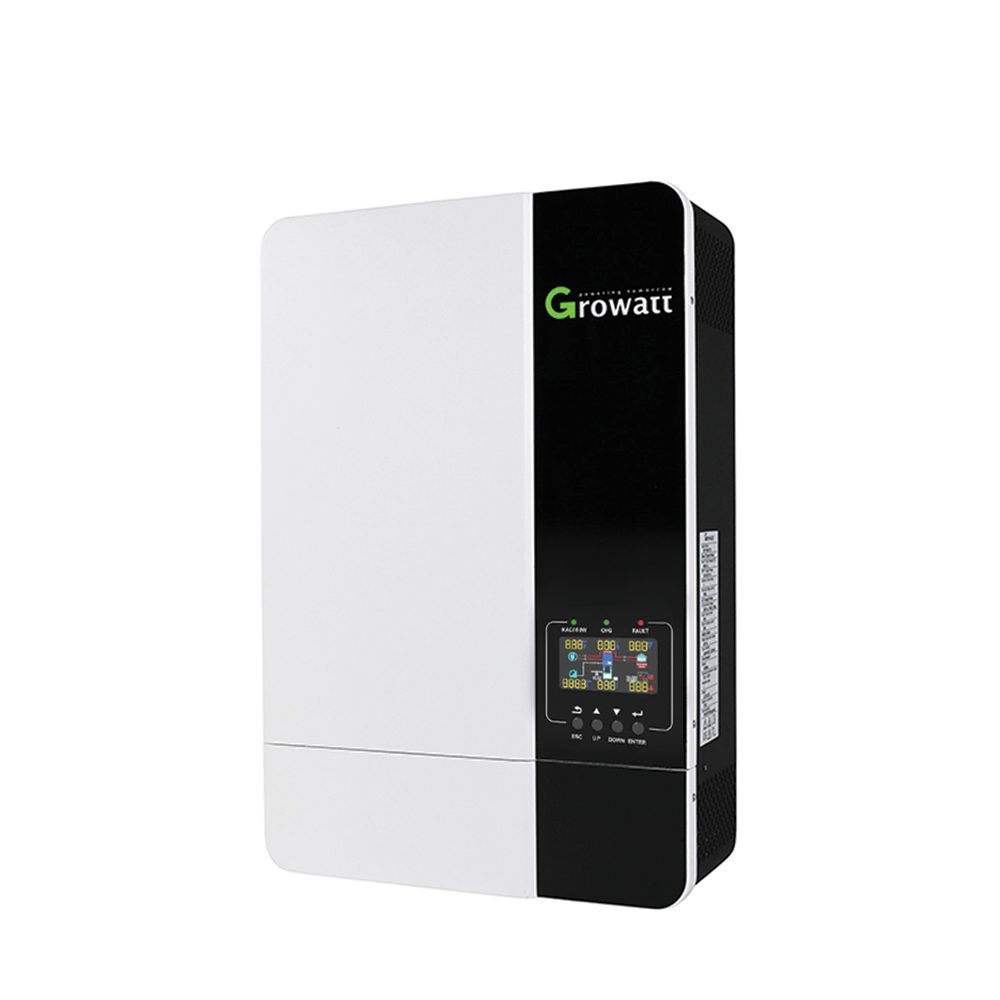

Growatt 5kW Stackable Off-Grid Inverter | SPF 5000 ES

Growatt 5kW Stackable Off-Grid Inverter | SPF 5000 ES

Regular price R 7,190.00

Wishlist Compare

Guarantee safe checkout

Growatt 5kW Stackable Off-Grid Inverter | SPF 5000 ES

R 7,190.00

Functions

Integrated MPPT charger controller.
Equalization charging function.
Max PV input up to 450vDC.
Choose grid or solar input priority.
WIFI/GPRS remote monitoring.
Parallel up to 6 inverters.
PV & Grid Power combine if PV energy is insufficient for load.
Flexible schedule for charging and discharging the batteries.
Warranty: 2 years

General Specifications

Module: SPF 5000 ES.
Battery voltage: 48vDC.
Battery type: Lithium/Lead-acid.

Inverter Output [AC]

Rated Power: 5000W.
AC Voltage Regulation (Battery): 230VAC ± 5%.
Surge Power: 10000VA for 5 sec.
Efficiency (Peak): 93%.
Waveform: Pure sine wave.
Transfer Time: 10ms – 20ms.

Solar Charger

Maximum PV Array Power: 6000W.
MPPT Range @ Operating Voltage: 120VDC – 430VDC.
Maximum PV Array Open Circuit Voltage: 450vDC.
Maximum Solar Charge Current: 100 A.

AC Charger

AC Charge Current: 80A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 230 VAC.
Frequency Range : 50 Hz/60 Hz (Auto sensing).

Physical

Protection degree: IP20.
Height: 330 x 485 x 135mm.
Weight: 12 kg.
