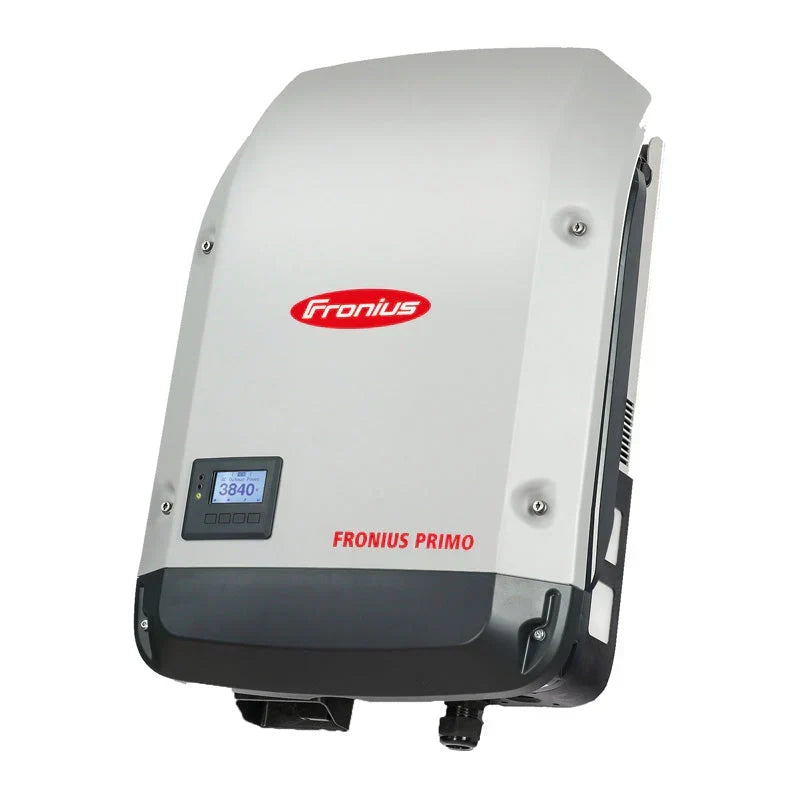

Fronius Primo 5kW Single-Phase Grid-Tie Inverter

Fronius Primo 5kW Single-Phase Grid-Tie Inverter

Regular price R 24,999.00

Wishlist Compare

Guarantee safe checkout

Fronius Primo 5kW Single-Phase Grid-Tie Inverter

R 24,999.00

Technical Data
Input Data

Number of MPP trackers: 2.
Max. input current (Idc max): 12 / 12 A.
Max. short circuit current, module array: 18 / 18 A.
DC input voltage range (Udc min - Udc max): 80 - 1000 V.
Feed-in start voltage (Udc start): 80 V.
Nominal input voltage (Udc,r): 710 V.
MPP voltage range (Umpp min - Umpp max): 270 - 800 V.
Usable MPP voltage range: 80 - 800 V.
Number of DC connections: 2 + 2.
Max. PV generator power (Pdc max): 12,3 kWpeak.

Output Data

AC nominal output (Pac,r): 5000 W.
Max. output power (Pac max): 5000 VA.
AC output current (Iac nom): 21,7 A.
Grid connection (Uac,r): 1~ NPE 220/230 V.
AC voltage range (Umin - Umax): 180 - 270 V.
Frequency (fr): 50 / 60 Hz.
Frequency range (fmin - fmax): 45 - 65 Hz
Power factor (cos φac,r): 0,85 - 1.

General Data

Height: 645 mm
Width: 431 mm
Depth: 204 mm
Weight: 21,5 kg
Degree of protection: IP 65
Protection class: 1
Overvoltage category (DC / AC): 2 / 3.
Night-time consumption: < 1 w 1="">.
Inverter design Transformerless.
Cooling: Regulated air cooling.
Installation: Indoors and outdoors.
Ambient temperature range: -40°C - +55°C.
Permitted humidity: 0 - 100 %.
Max. altitude: 4.000 m.
DC connection technology: 4x DC+ and 4x DC- screw terminals 2.5 - 16 mm².
AC connection technology: 3-pin AC screw terminals 2.5 - 16 mm².
WLAN / Ethernet LAN: Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON).
